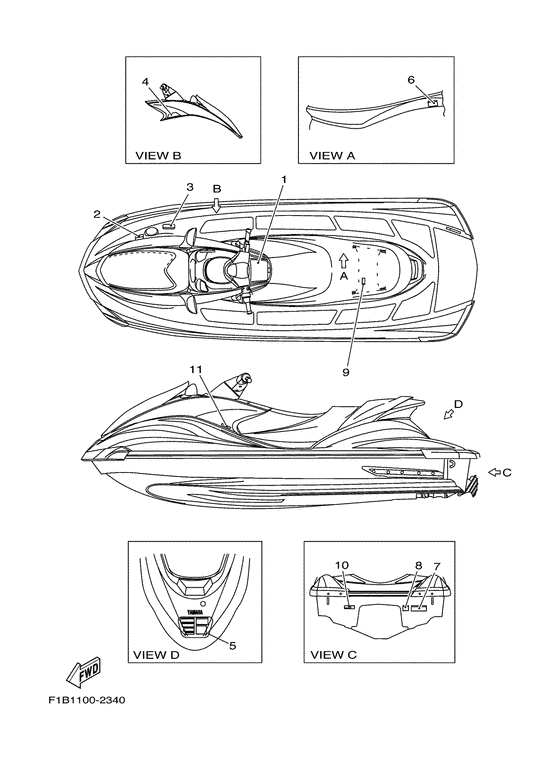

Important labels 3 Diagram Yamaha FX1000
- Model code
- F1B3
- Year
- 2002
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
F1B-641B1-20-00
Label, Warning Uniform 1
|
F1B-641B1-20-00 |
— | ||
|
02
|
02
F0M-6415B-00-00
Label, Warning(Fuel)
|
F0M-6415B-00-00 |
— | ||
|
03
|
03
F1D-6418R-00-00
Label, Warning Ventilation
|
F1D-6418R-00-00 |
— | ||
|
04
|
04
F0V-641D5-40-00 Label, Warning Shift Lever |
F0V-641D5-40-00 |
from US $27.77 |
||
|
05
|
05
F1B-641E1-20-00
Label, Set 1
|
F1B-641E1-20-00 |
— | ||
|
06
|
06
F0M-6418B-00-00
Label, Caution
Rh inside |
F0M-6418B-00-00 |
— | ||
|
07
|
07
F0M-6418G-00-00
Label, Caution
|
F0M-6418G-00-00 |
— | ||
|
08
|
08
F0P-6416R-20-00
Label, Warning (Reverse)
|
F0P-6416R-20-00 |
— | ||
|
09
|
09
F1B-641F3-20-00 Label, Caution Oil |
F1B-641F3-20-00 |
US $11.19 |
||
|
10
|
10
F0M-641E1-00-00 Label, Set 1 |
F0M-641E1-00-00 |
US $14.45 |
||
|
11
|
11
GA9-U411B-00-00
Plate,assy
Ymus |
GA9-U411B-00-00 |
— |
