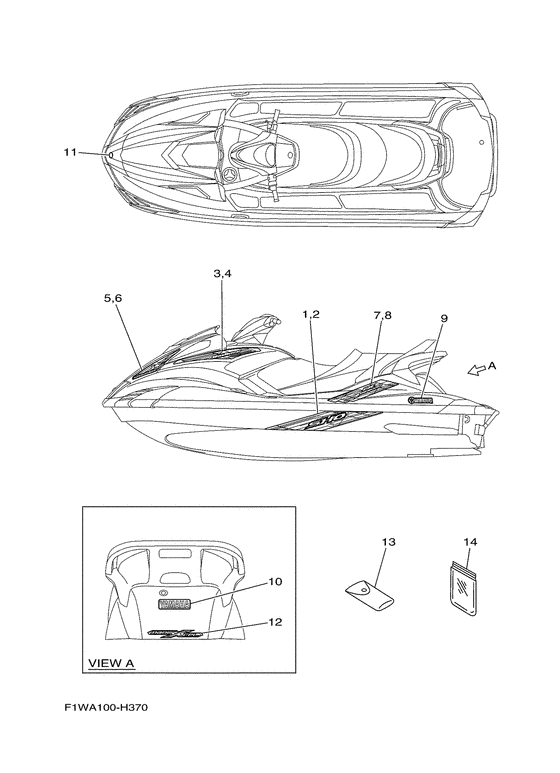

Graphics Diagram Yamaha FX1800
- Model code
- F1WC
- Engine Capacity
- 1800
- Year
- 2009
- Sales region
- Europe (General) (010)
- Colour
- Black Solid A (SSA; 1000)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
F1W-U417B-60-00 Graphic 1 (Lh)For black |
F1W-U417B-60-00 |
US $42.50 |
||
|
01
|
01
F1W-U417B-70-00 Graphic 1 (Lh)For blue |
F1W-U417B-70-00 |
from US $34.15 |
||
|
02
|
02
F1W-U417C-60-00 Graphic 2 (Rh)For black |
F1W-U417C-60-00 |
US $34.15 |
||
|
02
|
02
F1W-U417C-70-00 Graphic 2 (Rh)For blue |
F1W-U417C-70-00 |
from US $34.15 |
||
|
03
|
03
F1W-U417D-60-00 Graphic 3 (Lh)For black |
F1W-U417D-60-00 |
US $15.28 |
||
|
03
|
03
F1W-U417D-70-00 Graphic 3 (Lh)For blue |
F1W-U417D-70-00 |
from US $15.28 |
||
|
04
|
04
F1W-U417E-60-00 Graphic 4 (Rh)For black |
F1W-U417E-60-00 |
US $20.23 |
||
|
04
|
04
F1W-U417E-70-00 Graphic 4 (Rh)For blue |
F1W-U417E-70-00 |
from US $16.07 |
||
|
05
|
05
F1W-U417F-60-00 Graphic 5 (Lh)For black |
F1W-U417F-60-00 |
US $15.61 |
||
|
05
|
05
F1W-U417F-70-00 Graphic 5 (Lh)For blue |
F1W-U417F-70-00 |
from US $15.28 |
||
|
06
|
06
F1W-U417G-60-00 Graphic 6 (Rh)For black |
F1W-U417G-60-00 |
US $15.28 |
||
|
06
|
06
F1W-U417G-70-00 Graphic 6 (Rh)For blue |
F1W-U417G-70-00 |
from US $15.28 |
||
|
07
|
07
F1W-U417H-60-00 Graphic 7 (Lh)For black |
F1W-U417H-60-00 |
US $23.18 |
||
|
07
|
07
F1W-U417H-70-00 Graphic 7 (Lh)For blue |
F1W-U417H-70-00 |
from US $22.43 |
||
|
08
|
08
F1W-U417J-70-00 Graphic 8 (Rh)For blue |
F1W-U417J-70-00 |
US $22 |
||
|
08
|
08
F1W-U417J-60-00 Graphic 8 (Rh)For black |
F1W-U417J-60-00 |
US $28.99 |
||
|
09
|
09
F1X-U411C-10-00 Emblem, YamahaFor black |
F1X-U411C-10-00 |
from US $20.88 |
||
|
09
|
09
F1X-U411C-50-00 Emblem, YamahaFor blue |
F1X-U411C-50-00 |
from US $43.38 |
||
|
10
|
10
F1X-U4114-50-00 Mark, Yamaha AFor blue |
F1X-U4114-50-00 |
from US $10.93 |
||
|
10
|
10
F1X-U411C-20-00 Emblem, YamahaFor black |
F1X-U411C-20-00 |
from US $20.88 |
||
|
11
|
11
F1K-U411H-00-00 Emblem, Tuning Fork |
F1K-U411H-00-00 |
from US $26.30 |
||
|
12
|
12
F1W-U4121-00-00 Emblem A |
F1W-U4121-00-00 |
from US $9.18 |
||
|
13
|
13
F1B-65986-00-00
Tool Set
|
F1B-65986-00-00 |
— | ||
| replacement | |||||
|
13
|
13
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
14
|
14
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
14
|
14
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
14
|
14
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
