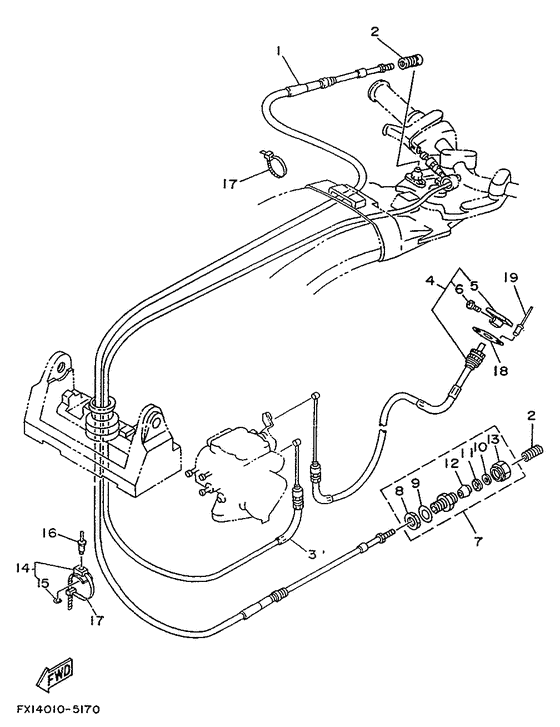

Control cable Diagram Yamaha FX700
- Model code
- FX16
- Year
- 1996
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
FX1-61481-00-00 Cable, Steering |
FX1-61481-00-00 |
US $220.12 |
||
|
02
|
02
EU0-61461-30-00 Shaft,joint Ball |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
02
|
02
F0V-U1461-00-00 Stud, Joint Ball |
F0V-U1461-00-00 |
from US $51.53 |
||
|
03
|
03
EU0-67252-02-00 Cable, Throttle 1 |
EU0-67252-02-00 |
from US $161.98 |
||
|
04
|
04
FX1-67242-00-00 Cable, Choke |
FX1-67242-00-00 |
from US $97.24 |
||
|
05
|
05
EW2-67243-00-00 Knob, Choke |
EW2-67243-00-00 |
from US $22.25 |
||
|
06
|
06
90149-03930-00 Screw |
90149-03930-00 |
from US $10.48 |
||
|
07
|
07
EU0-67267-00-00 Connector,cable |
EU0-67267-00-00 |
from US $38.96 |
||
|
08
|
08
EU0-62241-30-00 Nut, Drain 1 |
EU0-62241-30-00 |
from US $10.77 |
||
|
09
|
09
EU0-61438-00-00 Packing |
EU0-61438-00-00 |
from US $4.04 |
||
|
10
|
10
EU0-61446-00-00 Washer |
EU0-61446-00-00 |
from US $5.97 |
||
|
11
|
11
EU0-61486-00-00 Stopper |
EU0-61486-00-00 |
from US $3.20 |
||
|
12
|
12
EU0-61435-00-00 Seal, Pipe 30 |
EU0-61435-00-00 |
from US $5.41 |
||
|
13
|
13
EU0-62694-00-00 Cap |
EU0-62694-00-00 |
from US $8.19 |
||
|
14
|
14
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
15
|
15
90201-05925-00
Washer, Plain
|
90201-05925-00 |
— | ||
|
16
|
16
90267-48007-00 Rivet, Blind |
90267-48007-00 |
from US $1.69 |
||
|
17
|
17
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
17
|
17
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
18
|
18
90209-12920-00 Washer |
90209-12920-00 |
from US $12.47 |
||
|
19
|
19
90267-40945-00 Rivet, Blind |
90267-40945-00 |
from US $4.25 |
||
