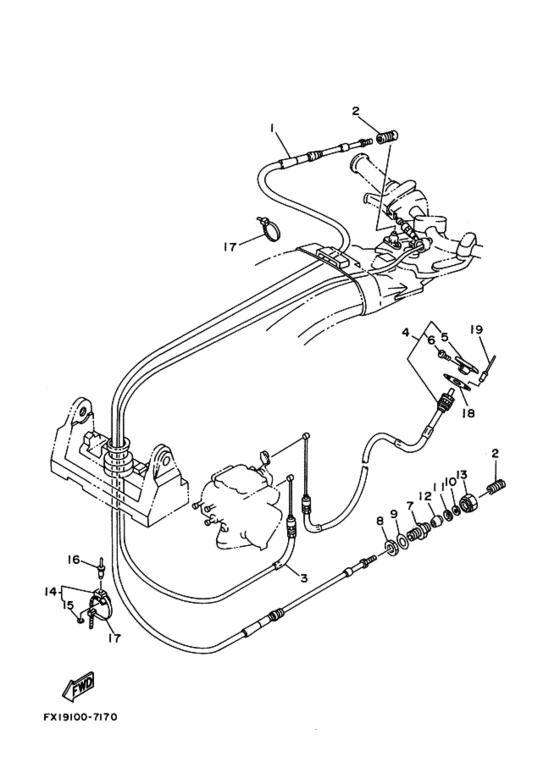

Control cable Diagram Yamaha FX700
- Model code
- FX1E
- Year
- 1998
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
FX1-61481-00-00 Cable, SteeringＣＡＢＬＥ， ＳＴＥＥＲＩＮＧ; |
FX1-61481-00-00 |
US $220.12 |
||
|
2
|
2
EU0-61461-30-00 Shaft,joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
2
|
2
F0V-U1461-00-00 Stud, Joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
F0V-U1461-00-00 |
from US $51.53 |
||
|
3
|
3
EU0-67252-02-00 Cable, Throttle 1ＣＡＢＬＥ， ＴＨＲＯＴＴＬＥ １; |
EU0-67252-02-00 |
from US $161.98 |
||
|
4
|
4
FX1-67242-00-00 Cable, ChokeＣＡＢＬＥ， ＣＨＯＫＥ; |
FX1-67242-00-00 |
from US $97.24 |
||
|
5
|
5
EW2-67243-00-00 Knob, ChokeＫＮＯＢ; |
EW2-67243-00-00 |
from US $22.25 |
||
|
6
|
6
90149-03930-00 ScrewＳＣＲＥＷ; |
90149-03930-00 |
from US $10.48 |
||
|
7
|
7
EU0-61436-00-00 Body, Cable ConnectorＢＯＤＹ， ＣＡＢＬＥ ＣＯＮＮＥＣＴＯＲ; |
EU0-61436-00-00 |
from US $6.11 |
||
|
8
|
8
EU0-62241-30-00 Nut, Drain 1ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
|
9
|
9
EU0-61438-00-00 PackingＰＡＣＫＩＮＧ ; Ｃ |
EU0-61438-00-00 |
from US $4.04 |
||
|
10
|
10
EU0-61446-00-00 WasherＷＡＳＨＥＲ ３０; |
EU0-61446-00-00 |
from US $5.97 |
||
|
11
|
11
EU0-61486-00-00 StopperＳＴＯＰＰＥＲ; |
EU0-61486-00-00 |
from US $3.20 |
||
|
12
|
12
EU0-61435-00-00 Seal, Pipe 30ＳＥＡＬ， ＰＩＰＥ ３０; |
EU0-61435-00-00 |
from US $5.41 |
||
|
13
|
13
EU0-62694-00-00 CapＣＡＰ; |
EU0-62694-00-00 |
from US $8.19 |
||
|
14
|
14
90600-91736-00 Clamp Comp (Eu0)ＣＬＡＭＰ; |
90600-91736-00 |
from US $1.98 |
||
|
15
|
15
90201-05925-00
Washer, Plain
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05925-00 |
— | ||
|
16
|
16
90267-48007-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48007-00 |
from US $1.69 |
||
|
17
|
17
90601-20006-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
17
|
17
90601-20009-00 Band (Eu0)ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20009-00 |
from US $2.27 |
||
|
18
|
18
90209-12920-00 WasherＷＡＳＨＥＲ; |
90209-12920-00 |
from US $12.47 |
||
|
19
|
19
90267-40945-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-40945-00 |
from US $4.25 |
||
