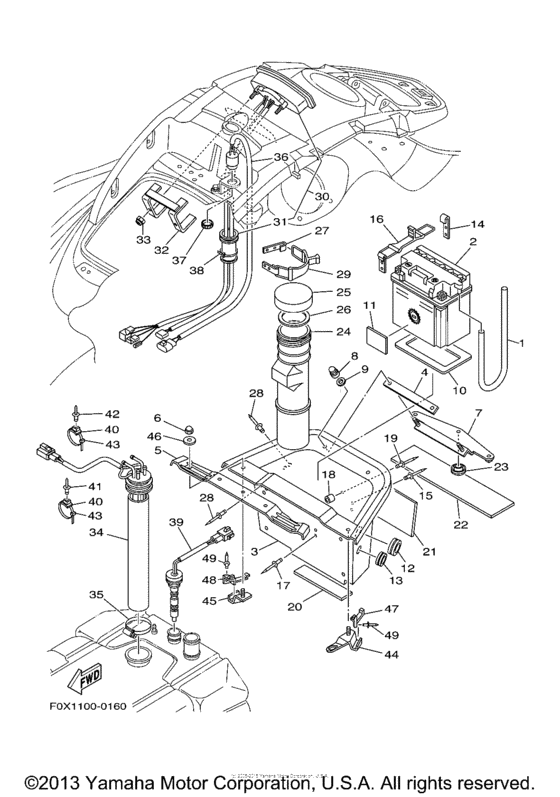

Electrical (2) Diagram Yamaha GP1200
- Engine Capacity
- 1200
- Year
- 2000
- Sales region
- Europe
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-U7856-40-00 Hose, Air Vent 3YMUS |
EU0-U7856-40-00 |
from US $7.36 |
||
| replacement | |||||
|
1
|
1
EU0-U7856-50-00 Hose, Air Vent 3YMUS |
EU0-U7856-50-00 |
from US $7.36 |
||
|
2
|
2
EU0-82110-09-00
Yb16Clb Yuasa Battery
|
EU0-82110-09-00 |
— | ||
| replacements | |||||
|
2
|
2
BTY-CB16C-LB-00
Battery cb16cl-b
|
BTY-CB16C-LB-00 |
— | ||
|
2
|
2
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
|
YB1-6CLB0-00-00 |
— | ||
|
3
|
3
F0X-U8211-01-00 Case, Battery |
F0X-U8211-01-00 |
US $159.77 |
||
| replacement | |||||
|
3
|
3
F1G-U8211-01-00 Case, Battery |
F1G-U8211-01-00 |
from US $159.77 |
||
|
4
|
4
F0X-U266D-00-00 Packing 5YMUS |
F0X-U266D-00-00 |
from US $59.29 |
||
|
5
|
5
F0X-68952-00-00
Beam, Deck 1
|
F0X-68952-00-00 |
— | ||
|
6
|
6
90176-06005-00 Nut, Crown |
90176-06005-00 |
from US $4.72 |
||
|
7
|
7
F0X-6821H-00-00 Bracket, Base Battery |
F0X-6821H-00-00 |
from US $70.32 |
||
|
8
|
8
90179-08978-00 Nut |
90179-08978-00 |
from US $9.59 |
||
|
9
|
9
9299R-08200-00 Washer |
9299R-08200-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
10
|
10
F0X-U8221-00-00 Pad, Battery |
F0X-U8221-00-00 |
from US $3.38 |
||
| replacement | |||||
|
10
|
10
F1S-U8221-00-00 Pad, Battery |
F1S-U8221-00-00 |
from US $9 |
||
|
11
|
11
F0D-U759C-00-00
Mat 2
YMUS |
F0D-U759C-00-00 |
— | ||
|
12
|
12
90480-279U1-00 Grommet |
90480-279U1-00 |
from US $14.15 |
||
|
13
|
13
90480-38800-00 Grommet |
90480-38800-00 |
from US $8.73 |
||
|
14
|
14
GA7-65772-00-00 Hook A |
GA7-65772-00-00 |
from US $5.24 |
||
|
15
|
15
90267-489U9-00 Rivet, Blind |
90267-489U9-00 |
from US $3.83 |
||
| replacement | |||||
|
15
|
15
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
16
|
16
GJ1-66607-00-00 Hook Comp |
GJ1-66607-00-00 |
from US $18.55 |
||
|
17
|
17
90267-489U9-00 Rivet, Blind |
90267-489U9-00 |
from US $3.83 |
||
| replacement | |||||
|
17
|
17
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
18
|
18
GK5-63768-00-00 Cushion, Rubber |
GK5-63768-00-00 |
from US $9.49 |
||
|
19
|
19
90267-489U1-00 Rivet,blind |
90267-489U1-00 |
from US $4.77 |
||
| replacement | |||||
|
19
|
19
90267-48938-00 Rivet (Eu0) |
90267-48938-00 |
from US $3.72 |
||
|
20
|
20
F0X-6352C-00-00 Trim, Mat |
F0X-6352C-00-00 |
from US $6.66 |
||
|
21
|
21
GP8-67593-00-00 Mat |
GP8-67593-00-00 |
from US $25.22 |
||
| replacement | |||||
|
21
|
21
GU0-67593-00-00 Mat |
GU0-67593-00-00 |
from US $25.22 |
||
|
22
|
22
F0X-6351B-00-00 Mat, Lower |
F0X-6351B-00-00 |
from US $19.69 |
||
|
23
|
23
F0X-65568-00-00 Cap |
F0X-65568-00-00 |
from US $7.49 |
||
|
24
|
24
F0X-U5983-00-00 Box, Fire Extinguisher |
F0X-U5983-00-00 |
from US $80.20 |
||
| replacement | |||||
|
24
|
24
F0X-U5983-01-00 Box, Fire Extinguisher |
F0X-U5983-01-00 |
from US $80.20 |
||
|
25
|
25
EW2-U5912-00-00 Cap, Case |
EW2-U5912-00-00 |
from US $6.25 |
||
| replacement | |||||
|
25
|
25
EW2-U5912-01-00 Cap, Case |
EW2-U5912-01-00 |
from US $6.25 |
||
|
26
|
26
EW2-U5913-01-00 Packing, Case |
EW2-U5913-01-00 |
from US $1.49 |
||
|
27
|
27
GA7-65772-00-00 Hook A |
GA7-65772-00-00 |
from US $5.24 |
||
|
28
|
28
90267-489U9-00 Rivet, Blind |
90267-489U9-00 |
from US $3.83 |
||
| replacement | |||||
|
28
|
28
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
29
|
29
GJ1-66607-00-00 Hook Comp |
GJ1-66607-00-00 |
from US $18.55 |
||
|
30
|
30
F0X-6820A-01-00 Meter Assy |
F0X-6820A-01-00 |
US $713.96 |
||
|
31
|
31
GU2-6822E-01-00 Grommet |
GU2-6822E-01-00 |
from US $16.43 |
||
|
32
|
32
GP7-68238-10-00 Bracket, Meter |
GP7-68238-10-00 |
from US $45.20 |
||
|
33
|
33
9572R-05300-00 Nut, Flange |
9572R-05300-00 |
from US $1.56 |
||
|
34
|
34
F0D-U824B-01-00 Sender, Fuel |
F0D-U824B-01-00 |
from US $728.21 |
||
| replacement | |||||
|
34
|
34
F0V-U824B-04-00 Sender, Fuel |
F0V-U824B-04-00 |
from US $793.32 |
||
|
35
|
35
90601-162U5-00 Band, Hose 6262 YMUS |
90601-162U5-00 |
from US $10.06 |
||
|
36
|
36
F0D-U8341-00-00 Buzzer |
F0D-U8341-00-00 |
from US $117.32 |
||
| replacement | |||||
|
36
|
36
F1S-68341-00-00 Buzzer |
F1S-68341-00-00 |
from US $153.88 |
||
|
37
|
37
F0X-U8239-00-00 Nut |
F0X-U8239-00-00 |
US $129.18 |
||
|
38
|
38
90464-32801-00 Clamp |
90464-32801-00 |
from US $3.12 |
||
|
39
|
39
F0D-U824C-00-00 Sender, Oil |
F0D-U824C-00-00 |
US $266.77 |
||
| replacements | |||||
|
39
|
39
F0D-U824C-21-00 Sender, Oil |
F0D-U824C-21-00 |
US $266.77 |
||
|
39
|
39
F0D-U824C-20-00 Sender, Oil |
F0D-U824C-20-00 |
US $266.77 |
||
|
40
|
40
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
40
|
40
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
41
|
41
90267-48803-00 Rivet, Blind |
90267-48803-00 |
from US $2.13 |
||
|
42
|
42
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
43
|
43
90464-32801-00 Clamp |
90464-32801-00 |
from US $3.12 |
||
|
44
|
44
F0X-65938-01-00 Stay 1 |
F0X-65938-01-00 |
from US $36.75 |
||
|
45
|
45
F0X-65939-01-00 Stay 2 |
F0X-65939-01-00 |
from US $33.44 |
||
|
46
|
46
90201-06014-00 Washer, Plate |
90201-06014-00 |
from US $2.20 |
||
|
47
|
47
F0X-63225-00-00 Packing, Seal 2 |
F0X-63225-00-00 |
from US $12.19 |
||
|
48
|
48
F0X-63226-00-00 Packing, Seal |
F0X-63226-00-00 |
from US $22.95 |
||
|
49
|
49
90267-489U6-00 Rivet, Blind |
90267-489U6-00 |
from US $2.69 |
||
| replacement | |||||
|
49
|
49
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
