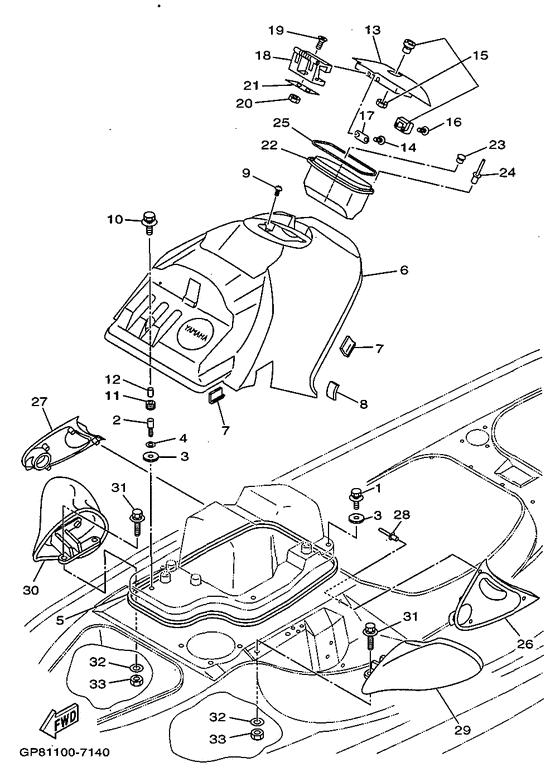

Engine hatch 1 Diagram Yamaha GP1200
- Model code
- GP82
- Engine Capacity
- 1200
- Year
- 1997
- Sales region
- Europe (999)
- Colour
- Pure White (PURW; 0240)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90119-089U5-00 Bolt, With WasherYmus |
90119-089U5-00 |
from US $4.34 |
||
| replacements | |||||
|
01
|
01
90119-089UL-00 Bolt, With WasherYmus |
90119-089UL-00 |
from US $6.94 |
||
|
01
|
01
90119-08907-00 Bolt, With WasherYmus |
90119-08907-00 |
from US $7.08 |
||
|
02
|
02
90109-08913-00
Bolt
|
90109-08913-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
90201-099U1-00 Washer, PlateYmus |
90201-099U1-00 |
from US $7.51 |
||
|
04
|
04
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
05
|
05
GP7-U266F-00-00 Packing 7Ymus |
GP7-U266F-00-00 |
US $12.83 |
||
|
06
|
06
GP8-U516N-00-00 Cover, Eng. Hatch(Re |
GP8-U516N-00-00 |
US $307.19 |
||
| replacement | |||||
|
06
|
06
GP8-U516N-09-P0 Cover, Engine Hatch |
GP8-U516N-09-P0 |
US $307.19 |
||
|
07
|
07
GP7-U5116-00-00 Trim, Hatch 2Ymus |
GP7-U5116-00-00 |
US $1.53 |
||
| replacement | |||||
|
07
|
07
GP7-U5116-10-00 Trim,hatch 2Ymus |
GP7-U5116-10-00 |
US $1.53 |
||
|
08
|
08
GP7-U517M-01-00 Pad, Hatch 1Ymus |
GP7-U517M-01-00 |
from US $1.87 |
||
|
09
|
09
90149-05984-00 Screw |
90149-05984-00 |
from US $2.83 |
||
|
10
|
10
90119-06959-00
Bolt, With Washer
|
90119-06959-00 |
— | ||
| replacement | |||||
|
10
|
10
90119-06940-00
Bolt, With Washer
|
90119-06940-00 |
— | ||
|
11
|
11
90480-13907-00
Grommet
|
90480-13907-00 |
— | ||
|
12
|
12
90387-06920-00
Collar
|
90387-06920-00 |
— | ||
|
13
|
13
GP7-U517H-10-00 Lid Hatch (Red) |
GP7-U517H-10-00 |
US $204.52 |
||
| replacement | |||||
|
13
|
13
GP7-U517H-10-P0 Lid Hatch (Red) |
GP7-U517H-10-P0 |
US $204.52 |
||
|
14
|
14
98580-05520-00 Screw, Pan Head |
98580-05520-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
15
|
15
GP7-6287A-00-00 Lock Assy |
GP7-6287A-00-00 |
US $78.77 |
||
|
16
|
16
98580-05510-00 Screw, Pan Head |
98580-05510-00 |
US $1.07 |
||
| replacement | |||||
|
16
|
16
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
17
|
17
GP7-U5148-00-00
Plate, Hatch
Ymus |
GP7-U5148-00-00 |
— | ||
|
18
|
18
GP7-6517G-00-00 Hinge, Hatch |
GP7-6517G-00-00 |
from US $38.97 |
||
| replacement | |||||
|
18
|
18
GP7-6517G-01-00 Hinge, Hatch |
GP7-6517G-01-00 |
from US $49.88 |
||
|
19
|
19
98780-05020-00 Screw, Flat Head |
98780-05020-00 |
from US $1.82 |
||
|
20
|
20
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
21
|
21
GP7-U517S-00-00 Plate, Hatch 2Ymus |
GP7-U517S-00-00 |
US $25.31 |
||
|
22
|
22
GP7-U516P-00-00
Box Glove
Ymus |
GP7-U516P-00-00 |
— | ||
|
23
|
23
90605-502U2-00 PlugYmus |
90605-502U2-00 |
from US $4.68 |
||
|
24
|
24
90267-489UK-00 Rivet, BlindYmus |
90267-489UK-00 |
from US $1.35 |
||
|
25
|
25
GP7-U519D-02-00 Packing CaseYmus |
GP7-U519D-02-00 |
from US $41.96 |
||
|
26
|
26
GP7-U377B-00-00 Cover, Side 1Ymus |
GP7-U377B-00-00 |
US $16.38 |
||
|
27
|
27
GP7-U377C-00-00
Cover, Side 2
Ymus |
GP7-U377C-00-00 |
— | ||
|
28
|
28
90267-489UE-00 Rivet, BlindYmus |
90267-489UE-00 |
from US $1.84 |
||
| replacement | |||||
|
28
|
28
90267-48007-00 Rivet, BlindYmus |
90267-48007-00 |
from US $1.69 |
||
|
29
|
29
GP8-U596B-00-00 Mirror (Lh) |
GP8-U596B-00-00 |
US $114.41 |
||
|
30
|
30
GP8-U596C-00-00 Mirror (Rh) |
GP8-U596C-00-00 |
US $115.56 |
||
|
31
|
31
90119-08932-00 Bolt, With Washer |
90119-08932-00 |
from US $5.24 |
||
|
32
|
32
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
33
|
33
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
