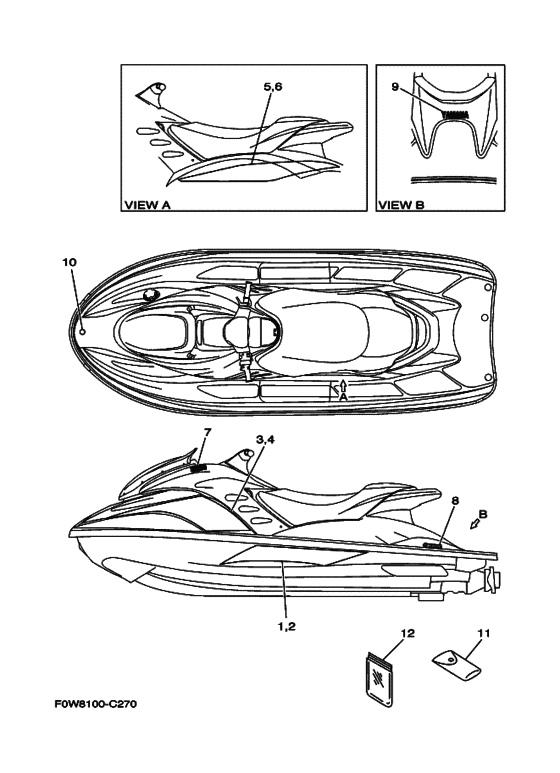

Graphics Diagram Yamaha GP800
- Model code
- F0W9
- Engine Capacity
- 800
- Year
- 2004
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F0W-U417B-30-00 Graphic 1LH, YMUS |
F0W-U417B-30-00 |
US $51.26 |
||
|
2
|
2
F0W-U417C-30-00 Graphic 2RH, YMUS |
F0W-U417C-30-00 |
US $51.26 |
||
|
3
|
3
F0W-U417D-20-00 Graphic 3LH, YMUS |
F0W-U417D-20-00 |
US $78.70 |
||
|
4
|
4
F0W-U417E-20-00
Graphic 4
RH, YMUS |
F0W-U417E-20-00 |
— | ||
|
5
|
5
F0W-U417F-20-00 Graphic 5LH, YMUS |
F0W-U417F-20-00 |
US $73.03 |
||
|
6
|
6
F0W-U417G-20-00 Graphic 6RH, YMUS |
F0W-U417G-20-00 |
US $73.03 |
||
|
7
|
7
F0W-U4122-00-00 Emblem 2YMUS |
F0W-U4122-00-00 |
US $22.97 |
||
|
8
|
8
F0V-U411C-10-00 Emblem, YamahaYMUS |
F0V-U411C-10-00 |
from US $17.19 |
||
|
9
|
9
GJ3-U4114-52-00 Mark, Yamaha AYMUS |
GJ3-U4114-52-00 |
from US $34.41 |
||
|
10
|
10
F1B-U411H-10-00 Emblem, Tuning ForkYMUS |
F1B-U411H-10-00 |
US $20.23 |
||
|
11
|
11
EU0-65986-00-00
Tool Set
|
EU0-65986-00-00 |
— | ||
| replacements | |||||
|
11
|
11
EU0-65986-13-00 Tool Set |
EU0-65986-13-00 |
from US $33.20 |
||
|
11
|
11
EU0-65986-10-00 Tool Set |
EU0-65986-10-00 |
from US $33.20 |
||
|
12
|
12
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
12
|
12
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
12
|
12
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
