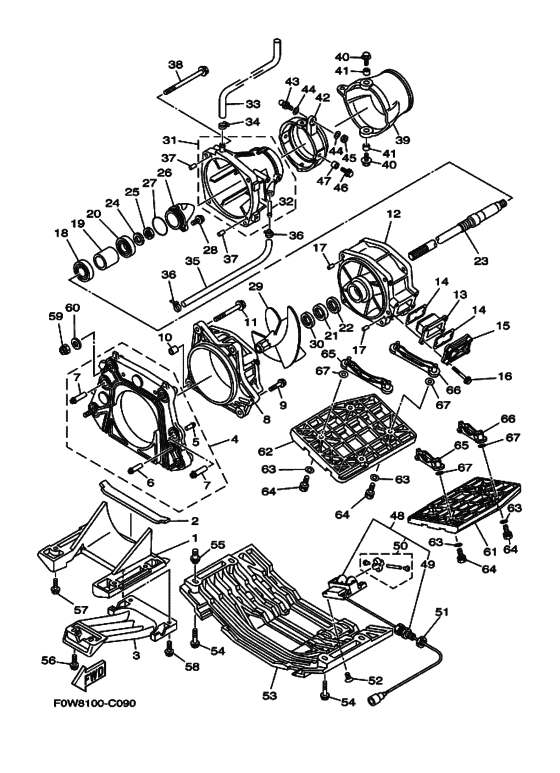

Jet unit 1 Diagram Yamaha GP800
- Model code
- F0W9
- Engine Capacity
- 800
- Year
- 2004
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67X-51311-00-94
Duct, Intake
|
67X-51311-00-94 |
— | ||
|
2
|
2
67X-51367-00-00 Felt, Packing |
67X-51367-00-00 |
US $3.08 |
||
| replacements | |||||
|
2
|
2
66V-R1367-00-00
Felt, Packing
|
66V-R1367-00-00 |
— | ||
|
2
|
2
67X-R1367-00-00 Felt, Packing |
67X-R1367-00-00 |
US $3.13 |
||
|
3
|
3
67X-51333-00-94 Screen, Intake |
67X-51333-00-94 |
from US $123.92 |
||
|
4
|
4
66V-G5831-02-00 Plate, TransomYMUS |
66V-G5831-02-00 |
from US $268.96 |
||
|
5
|
5
65A-R1129-00-00 NippleYMUS |
65A-R1129-00-00 |
US $51.49 |
||
|
6
|
6
66V-51129-01-00 Nipple |
66V-51129-01-00 |
US $24.57 |
||
|
7
|
7
66V-51129-10-00 Nipple |
66V-51129-10-00 |
from US $22.25 |
||
|
8
|
8
66V-51312-01-94 Housing, Impeller |
66V-51312-01-94 |
from US $310.65 |
||
| replacement | |||||
|
8
|
8
6CR-R1312-00-00 HOUSING, IMPELLER |
6CR-R1312-00-00 |
from US $186.28 |
||
|
9
|
9
90119-06835-00 Bolt,with WasherYMUS |
90119-06835-00 |
from US $0.79 |
||
| replacement | |||||
|
9
|
9
901-19068-94-00 Bolt, With WasherYMUS |
901-19068-94-00 |
from US $2.65 |
||
|
10
|
10
995-90140-16-00 Pin, Dowel |
995-90140-16-00 |
from US $2.24 |
||
|
11
|
11
90119-10836-00 Bolt,with WasherYMUS |
90119-10836-00 |
from US $3.40 |
||
| replacements | |||||
|
11
|
11
901-19108-11-00 Bolt, With WasherYMUS |
901-19108-11-00 |
from US $2.65 |
||
|
11
|
11
97595-10545-00 Bolt, With WasherYMUS |
97595-10545-00 |
US $3.40 |
||
|
11
|
11
97E95-10545-00 Bolt, Hexagon W/w Deep RecessYMUS |
97E95-10545-00 |
from US $2.97 |
||
|
12
|
12
66V-51315-00-94
Duct, Impeller
|
66V-51315-00-94 |
— | ||
| replacement | |||||
|
12
|
12
66V-51315-01-00 Duct, Impeller |
66V-51315-01-00 |
from US $305.75 |
||
|
13
|
13
66V-46882-00-00 Filter |
66V-46882-00-00 |
from US $11.05 |
||
|
14
|
14
66V-42414-00-00 O-Ring |
66V-42414-00-00 |
from US $6.52 |
||
|
15
|
15
66V-45214-00-94 Cover, Water Inlet 1 |
66V-45214-00-94 |
from US $22.95 |
||
|
16
|
16
90119-06800-00 Bolt, With WasherYMUS |
90119-06800-00 |
from US $1.07 |
||
| replacements | |||||
|
16
|
16
901-19068-98-00 Bolt,with WasherYMUS |
901-19068-98-00 |
from US $10.26 |
||
|
16
|
16
97080-06035-00 Bolt(J52)YMUS |
97080-06035-00 |
from US $2.02 |
||
|
17
|
17
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
18
|
18
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
18
|
18
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $23.24 |
||
|
19
|
19
65V-45538-00-00 Spacer 1 |
65V-45538-00-00 |
from US $21.88 |
||
|
20
|
20
93306-304U1-00 Bearing |
93306-304U1-00 |
from US $23.48 |
||
| replacement | |||||
|
20
|
20
933-06304-XB-00 BEARING |
933-06304-XB-00 |
from US $24.28 |
||
|
21
|
21
93101-28M66-00 Oil Seal |
93101-28M66-00 |
from US $21.64 |
||
|
22
|
22
93101-28M65-00 Oil Seal |
93101-28M65-00 |
from US $12.48 |
||
| replacement | |||||
|
22
|
22
93101-28002-00 Oil Seal |
93101-28002-00 |
from US $12.48 |
||
|
23
|
23
68Y-45511-00-00 Shaft, Drive |
68Y-45511-00-00 |
from US $504.97 |
||
| replacement | |||||
|
23
|
23
68Y-G5511-00-00 SHAFT, DRIVE |
68Y-G5511-00-00 |
from US $465.12 |
||
|
24
|
24
929-9R166-00-00 WasherYMUS |
929-9R166-00-00 |
from US $4.72 |
||
|
25
|
25
9531P-16700-00 NutYMUS |
9531P-16700-00 |
from US $9.35 |
||
| replacement | |||||
|
25
|
25
95317-16700-00 Nut(6F2)YMUS |
95317-16700-00 |
from US $4.72 |
||
|
26
|
26
65A-R1326-00-00 CapYMUS |
65A-R1326-00-00 |
from US $63.50 |
||
| replacement | |||||
|
26
|
26
65A-R1326-10-KT CapYMUS |
65A-R1326-10-KT |
US $111.33 |
||
|
27
|
27
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $4.72 |
||
|
28
|
28
90119-069UB-00 Bolt, With WasherYMUS |
90119-069UB-00 |
from US $2.41 |
||
| replacements | |||||
|
28
|
28
901-19068-90-00 BOLT,WITH WASHERYMUS |
901-19068-90-00 |
from US $3.37 |
||
|
28
|
28
90119-06M41-00 Bolt, With WasherYMUS |
90119-06M41-00 |
from US $2.74 |
||
|
29
|
29
68A-R1321-00-00 ImpellerYMUS |
68A-R1321-00-00 |
from US $383.11 |
||
|
30
|
30
66V-R1348-10-00 SpacerYMUS |
66V-R1348-10-00 |
from US $15.95 |
||
|
31
|
31
67X-51318-00-94 Nozzle |
67X-51318-00-94 |
from US $163.50 |
||
|
32
|
32
63M-51334-00-00 Nipple, Hose |
63M-51334-00-00 |
from US $9.60 |
||
|
33
|
33
67X-51673-00-00 Pipe 1 |
67X-51673-00-00 |
from US $34.14 |
||
|
34
|
34
90601-118UF-00 Band, Hose 1818; YMUS |
90601-118UF-00 |
from US $5.81 |
||
|
35
|
35
90445-14898-00 Hose (L380)YMUS |
90445-14898-00 |
from US $11.33 |
||
| replacement | |||||
|
35
|
35
90445-14M25-00 Hose (L380)YMUS |
90445-14M25-00 |
from US $11.33 |
||
|
36
|
36
90465-11829-00 ClampYMUS |
90465-11829-00 |
from US $1.50 |
||
| replacements | |||||
|
36
|
36
80L-26397-00-00 BandYMUS |
80L-26397-00-00 |
from US $1.17 |
||
|
36
|
36
904-65100-98-00 ClampYMUS |
904-65100-98-00 |
from US $1.39 |
||
|
37
|
37
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
38
|
38
90119-10837-00 Bolt, With WasherYMUS |
90119-10837-00 |
from US $9.98 |
||
| replacement | |||||
|
38
|
38
901-19108-07-00 Bolt, With WasherYMUS |
901-19108-07-00 |
from US $12.42 |
||
|
39
|
39
66V-R1313-01-00
Nozzle, Deflector
YMUS |
66V-R1313-01-00 |
— | ||
|
40
|
40
90119-089UE-00 Bolt, With WasherYMUS |
90119-089UE-00 |
from US $4.39 |
||
| replacements | |||||
|
40
|
40
901-19088-52-00 Bolt, With WasherYMUS |
901-19088-52-00 |
from US $10.48 |
||
|
40
|
40
97080-08020-00 Bolt(6Td)YMUS |
97080-08020-00 |
from US $4.05 |
||
|
41
|
41
90387-08M06-00 Collar |
90387-08M06-00 |
from US $5.97 |
||
|
42
|
42
66G-51190-00-94 Ring, Trim |
66G-51190-00-94 |
from US $116.82 |
||
|
43
|
43
GH3-U146E-00-00 Stud, Joint BallYMUS |
GH3-U146E-00-00 |
from US $10.91 |
||
|
44
|
44
90201-068M4-00 Washer, Plate |
90201-068M4-00 |
from US $3.12 |
||
|
45
|
45
9538R-06700-00 NutYMUS |
9538R-06700-00 |
from US $1.52 |
||
|
46
|
46
90119-089UE-00 Bolt, With WasherYMUS |
90119-089UE-00 |
from US $4.39 |
||
| replacements | |||||
|
46
|
46
901-19088-52-00 Bolt, With WasherYMUS |
901-19088-52-00 |
from US $10.48 |
||
|
46
|
46
97080-08020-00 Bolt(6Td)YMUS |
97080-08020-00 |
from US $4.05 |
||
|
47
|
47
90387-08M06-00 Collar |
90387-08M06-00 |
from US $5.97 |
||
|
48
|
48
GJ1-U8K31-02-00 Sensor SpeedYMUS |
GJ1-U8K31-02-00 |
from US $165.17 |
||
| replacement | |||||
|
48
|
48
GJ1-U8K31-03-00 Sensor SpeedYMUS |
GJ1-U8K31-03-00 |
from US $194.38 |
||
|
49
|
49
EU0-67267-20-00 Connector, Cable |
EU0-67267-20-00 |
from US $38.96 |
||
| replacement | |||||
|
49
|
49
EU0-67267-00-00 Connector,cable |
EU0-67267-00-00 |
from US $38.96 |
||
|
50
|
50
GJ1-U835D-00-00 Servis Kit (Speed Sensor)YMUS |
GJ1-U835D-00-00 |
from US $33.39 |
||
|
51
|
51
EU0-62241-30-00 Nut, Drain 1 |
EU0-62241-30-00 |
from US $10.77 |
||
|
52
|
52
9878R-05512-00 Screw, Flat HeadYMUS |
9878R-05512-00 |
from US $1.06 |
||
|
53
|
53
F1G-U273B-00-00 Plate 2YMUS |
F1G-U273B-00-00 |
from US $295.69 |
||
| replacement | |||||
|
53
|
53
F1G-U273B-01-00 PLATE 2YMUS |
F1G-U273B-01-00 |
from US $295.69 |
||
|
54
|
54
90119-08823-00 Bolt, With WasherYMUS |
90119-08823-00 |
from US $8.02 |
||
| replacement | |||||
|
54
|
54
901-19088-29-00 Bolt, With WasherYMUS |
901-19088-29-00 |
from US $8.50 |
||
|
55
|
55
90179-08815-00 NutYMUS |
90179-08815-00 |
US $18.81 |
||
|
56
|
56
90119-069UK-00 Bolt, With WasherYMUS |
90119-069UK-00 |
from US $4.68 |
||
| replacements | |||||
|
56
|
56
901-19068-96-00 Bolt, With WasherYMUS |
901-19068-96-00 |
from US $4.68 |
||
|
56
|
56
901-19069-29-00 Bolt, With WasherYMUS |
901-19069-29-00 |
from US $4.68 |
||
|
57
|
57
90119-08823-00 Bolt, With WasherYMUS |
90119-08823-00 |
from US $8.02 |
||
| replacement | |||||
|
57
|
57
901-19088-29-00 Bolt, With WasherYMUS |
901-19088-29-00 |
from US $8.50 |
||
|
58
|
58
90119-069UB-00 Bolt, With WasherYMUS |
90119-069UB-00 |
from US $2.41 |
||
| replacements | |||||
|
58
|
58
901-19068-90-00 BOLT,WITH WASHERYMUS |
901-19068-90-00 |
from US $3.37 |
||
|
58
|
58
90119-06M41-00 Bolt, With WasherYMUS |
90119-06M41-00 |
from US $2.74 |
||
|
59
|
59
957-2R103-00-00 Nut, NylonYMUS |
957-2R103-00-00 |
from US $4.25 |
||
|
60
|
60
90201-10801-00 Washer, PlateYMUS |
90201-10801-00 |
from US $6.23 |
||
|
61
|
61
F1G-U884R-01-00 Plate, Step 1YMUS |
F1G-U884R-01-00 |
from US $28.80 |
||
|
62
|
62
F1G-U884S-01-00 Plate, Step 2YMUS |
F1G-U884S-01-00 |
from US $31.99 |
||
|
63
|
63
90387-07803-00 CollarYMUS |
90387-07803-00 |
from US $4.66 |
||
|
64
|
64
90119-069UD-00 Bolt, With WasherYMUS |
90119-069UD-00 |
from US $9.88 |
||
| replacements | |||||
|
64
|
64
901-19068-92-00 Bolt, With WasherYMUS |
901-19068-92-00 |
from US $7.65 |
||
|
64
|
64
90101-06M27-00 BoltYMUS |
90101-06M27-00 |
from US $1.52 |
||
|
65
|
65
F0X-6885R-00-00 Plate, Step 1 |
F0X-6885R-00-00 |
US $36 |
||
|
66
|
66
F0X-6885S-00-00 Plate, Step 2 |
F0X-6885S-00-00 |
from US $35.65 |
||
|
67
|
67
F0X-62663-01-00 Packing 1 |
F0X-62663-01-00 |
US $2.23 |
||
