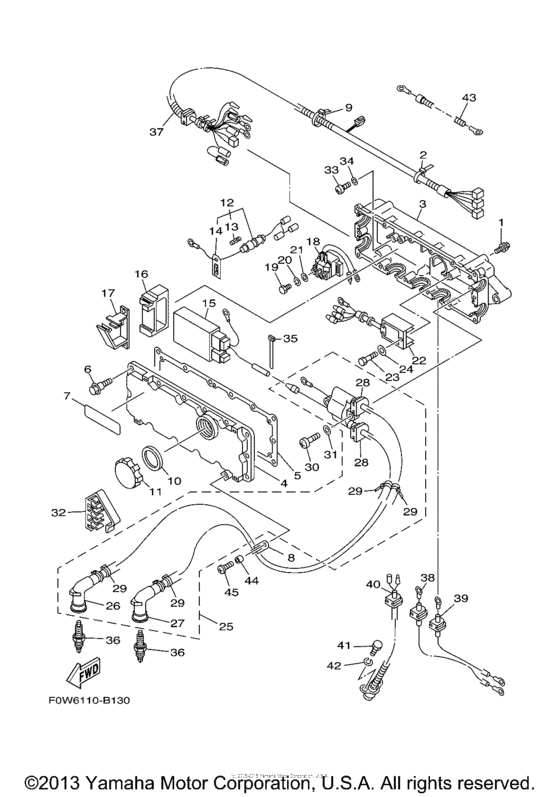

Electrical (1) Diagram Yamaha GP800
- Engine Capacity
- 800
- Year
- 2003
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90119-089U7-00 Bolt, With Washer |
90119-089U7-00 |
from US $4.97 |
||
| replacements | |||||
|
1
|
1
901-19088-00-00 Bolt, With Washer |
901-19088-00-00 |
from US $10.66 |
||
|
1
|
1
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
2
|
2
90465-12M56-00 Clamp |
90465-12M56-00 |
from US $5.24 |
||
|
3
|
3
66E-8552A-00-94 Housing |
66E-8552A-00-94 |
from US $178.23 |
||
|
4
|
4
66E-8552E-00-00 Cover, Case |
66E-8552E-00-00 |
US $43.40 |
||
|
5
|
5
66E-81921-00-00 Gasket, Terminal |
66E-81921-00-00 |
from US $48.91 |
||
|
6
|
6
90109-05MA0-00 Bolt |
90109-05MA0-00 |
from US $9.40 |
||
|
7
|
7
6R7-83623-40-00 Mark 3 |
6R7-83623-40-00 |
from US $7.23 |
||
|
8
|
8
90465-12M53-00 Clamp |
90465-12M53-00 |
from US $3.38 |
||
|
9
|
9
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
9
|
9
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
10
|
10
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
11
|
11
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
12
|
12
66E-82150-00-00 Fuse Holder Assy |
66E-82150-00-00 |
US $50.40 |
||
|
13
|
13
6G1-82151-00-00 Fuse (10A)10A |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
13
|
13
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $2.02 |
||
|
14
|
14
6K8-82159-00-00 Fuse Spear (10A)10A |
6K8-82159-00-00 |
from US $8.37 |
||
| replacement | |||||
|
14
|
14
6K8-82159-01-00 10A |
6K8-82159-01-00 |
US $10.58 |
||
|
15
|
15
66E-85540-00-00 C.d.i. Unit Assy |
66E-85540-00-00 |
from US $516.35 |
||
|
16
|
16
64X-85546-00-00 Band |
64X-85546-00-00 |
from US $13.95 |
||
|
17
|
17
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
18
|
18
68N-81940-00-00 Starter Relay Assy |
68N-81940-00-00 |
from US $106.04 |
||
|
19
|
19
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
19
|
19
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
63M-81960-00-00 Rectifier & Regulator Assy |
63M-81960-00-00 |
from US $163.03 |
||
|
23
|
23
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
23
|
23
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
24
|
24
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
64X-85570-01-00 Ignition Coil Assy |
64X-85570-01-00 |
from US $404.98 |
||
|
26
|
26
62E-82371-11-00 Cap, Plug |
62E-82371-11-00 |
from US $22.81 |
||
|
27
|
27
62E-82371-11-00 Cap, Plug |
62E-82371-11-00 |
from US $22.81 |
||
|
28
|
28
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
29
|
29
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
29
|
29
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
29
|
29
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
30
|
30
978-80060-30-00
Screw, Pan Head
|
978-80060-30-00 |
— | ||
| replacement | |||||
|
30
|
30
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
32
|
32
65U-81317-10-00 Clamp, Cord |
65U-81317-10-00 |
from US $6.66 |
||
|
33
|
33
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
33
|
33
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
35
|
35
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
35
|
35
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
35
|
35
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
36
|
36
NGK-BR8ES-00-00 Plug, Spark (Ngk Br8Es) |
NGK-BR8ES-00-00 |
US $17.88 |
||
| replacement | |||||
|
36
|
36
BR8-ES000-00-00 Spark plug BR8ES |
BR8-ES000-00-00 |
US $20.32 |
||
|
37
|
37
68A-82553-10-00 Extension, Wire Lead |
68A-82553-10-00 |
from US $429.66 |
||
|
38
|
38
62E-82117-20-00 Wire, Lead |
62E-82117-20-00 |
from US $46.80 |
||
|
39
|
39
68A-82117-10-00 Wire, Lead |
68A-82117-10-00 |
from US $59.96 |
||
|
40
|
40
68A-82560-00-00 Thermo Switch Assy |
68A-82560-00-00 |
from US $114.53 |
||
| replacement | |||||
|
40
|
40
68A-82560-01-00 Thermo Switch Assy |
68A-82560-01-00 |
US $79.75 |
||
|
41
|
41
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
41
|
41
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
42
|
42
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
43
|
43
61L-82117-00-00 Wire, Lead |
61L-82117-00-00 |
from US $63.69 |
||
|
44
|
44
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.97 |
||
|
45
|
45
97780-60425-00 Screw, Tapping |
97780-60425-00 |
from US $2.05 |
||
