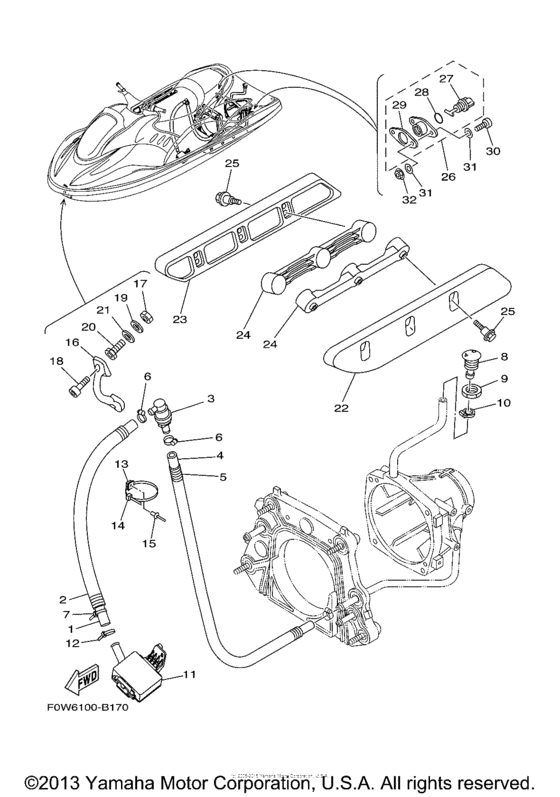

Hull deck Diagram Yamaha GP800
- Engine Capacity
- 800
- Year
- 2003
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90445-198C0-00 Hose (L1000) |
90445-198C0-00 |
US $37.02 |
||
|
2
|
2
90446-27M95-00 Hose (L800) |
90446-27M95-00 |
from US $15.17 |
||
|
3
|
3
68N-5112T-00-00 Joint, Hose |
68N-5112T-00-00 |
from US $32.44 |
||
|
4
|
4
90445-198B9-00
Hose (L650)
|
90445-198B9-00 |
— | ||
|
5
|
5
90446-27MF2-00 Hose (L550) |
90446-27MF2-00 |
from US $10.06 |
||
|
6
|
6
90601-118UF-00 Band, Hose 1818 YMUS |
90601-118UF-00 |
from US $5.81 |
||
|
7
|
7
90601-200U1-00 Band |
90601-200U1-00 |
from US $2.27 |
||
|
8
|
8
FN8-6269B-00-00 Spout |
FN8-6269B-00-00 |
from US $15.87 |
||
|
9
|
9
EU0-61652-00-00 Nut |
EU0-61652-00-00 |
from US $6.94 |
||
|
10
|
10
90601-118UF-00 Band, Hose 1818 YMUS |
90601-118UF-00 |
from US $5.81 |
||
|
11
|
11
F1B-U761D-01-00 Strainer, Bilge |
F1B-U761D-01-00 |
from US $6.57 |
||
| replacement | |||||
|
11
|
11
F1B-U761D-02-00 Strainer, Bilge |
F1B-U761D-02-00 |
from US $14.17 |
||
|
12
|
12
90601-200U1-00 Band |
90601-200U1-00 |
from US $2.27 |
||
|
13
|
13
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
14
|
14
90601-200U2-00 Band |
90601-200U2-00 |
from US $9.92 |
||
|
15
|
15
90267-489U7-00 Rivet, Blind |
90267-489U7-00 |
from US $1.49 |
||
| replacement | |||||
|
15
|
15
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
16
|
16
F0X-61624-00-00 Bow Eye 1 |
F0X-61624-00-00 |
from US $74.61 |
||
|
17
|
17
F0X-61652-00-00 Nut (Bolt/nut) |
F0X-61652-00-00 |
from US $11.54 |
||
| replacement | |||||
|
17
|
17
F0X-61652-01-00 NUT |
F0X-61652-01-00 |
from US $13.88 |
||
|
18
|
18
90110-06040-00 Bolt, Hexagon Socket |
90110-06040-00 |
from US $2.97 |
||
| replacement | |||||
|
18
|
18
901-10062-80-00 Bolt, Hexagon Socket Head |
901-10062-80-00 |
from US $4.11 |
||
|
19
|
19
F0X-61637-00-00 Washer |
F0X-61637-00-00 |
from US $1.98 |
||
|
20
|
20
99780-12600-00 Nut.hex.(Coars) |
99780-12600-00 |
from US $4.38 |
||
|
21
|
21
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
22
|
22
F0X-U883N-00-00 Stabilizer LhLH BL, YMUS |
F0X-U883N-00-00 |
from US $87.68 |
||
|
23
|
23
F0X-U883P-00-00 Stabilizer RhRH BL, YMUS |
F0X-U883P-00-00 |
from US $89.37 |
||
|
24
|
24
F1B-U883T-01-00 Bracket,stabilizer |
F1B-U883T-01-00 |
from US $38.88 |
||
| replacement | |||||
|
24
|
24
F1B-U883T-02-00 Bracket,stabilizer |
F1B-U883T-02-00 |
from US $38.88 |
||
|
25
|
25
F1G-U2624-00-00 Bolt |
F1G-U2624-00-00 |
from US $6.57 |
||
| replacement | |||||
|
25
|
25
F1G-U2624-10-00 Bolt |
F1G-U2624-10-00 |
from US $6.57 |
||
|
26
|
26
EU0-62280-00-00 Drain Plug Assy |
EU0-62280-00-00 |
from US $43.24 |
||
|
27
|
27
EU0-62282-00-00 Plug, Drain |
EU0-62282-00-00 |
from US $3.26 |
||
|
28
|
28
EU0-62283-00-00 O-Ring |
EU0-62283-00-00 |
from US $1.28 |
||
|
29
|
29
EU0-62285-01-00 Packing Drain (Eu0) |
EU0-62285-01-00 |
from US $5.10 |
||
|
30
|
30
9788R-05025-00 Screw, Pan Head |
9788R-05025-00 |
from US $1.84 |
||
|
31
|
31
9299R-05200-00 Washer |
9299R-05200-00 |
from US $1.56 |
||
|
32
|
32
9572R-05300-00 Nut, Flange |
9572R-05300-00 |
from US $1.56 |
||
