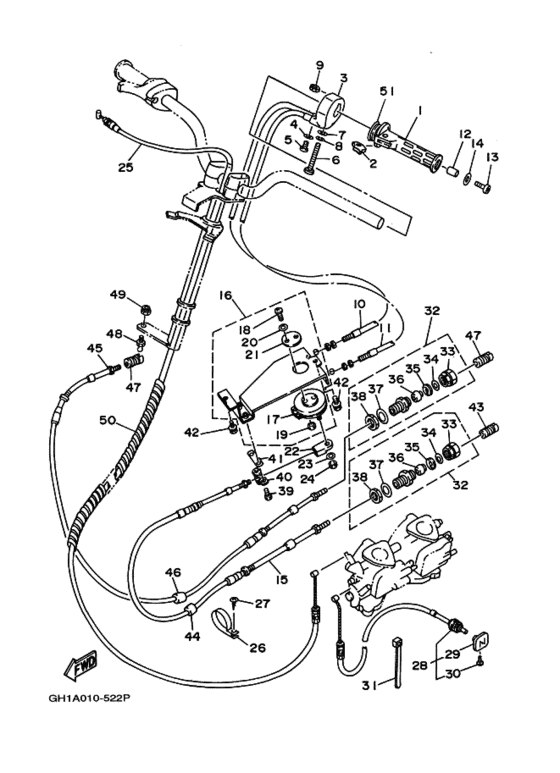

Control cable Diagram Yamaha RA700
- Model code
- GH1A
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GH1-6155C-00-00
Grip,handle
ＧＲＩＰ， ＨＡＮＤＬＥ; |
GH1-6155C-00-00 |
— | ||
|
2
|
2
GH1-6151M-00-00 Lever AssyＬＥＶＥＲ ＡＳＳＹ; |
GH1-6151M-00-00 |
from US $24.24 |
||
|
3
|
3
GH1-6152M-01-00 Housing AssyＨＯＵＳＩＮＧ ＡＳＳＹ; |
GH1-6152M-01-00 |
from US $120.90 |
||
|
4
|
4
929-90046-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90046-00-00 |
from US $1.07 |
||
|
5
|
5
98980-04010-00 Screw, BindＳＣＲＥＷ， ＢＩＮＤ; |
98980-04010-00 |
from US $1.39 |
||
|
6
|
6
97880-06065-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97880-06065-00 |
from US $7.23 |
||
| replacement | |||||
|
6
|
6
98580-06565-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-06565-00 |
from US $7.23 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
GH1-6143B-00-00 Nut,specialＮＵＴ， ＳＰＥＣＩＡＬ; |
GH1-6143B-00-00 |
US $4.77 |
||
|
10
|
10
GH1-6153D-00-00 Cable,nozzle Control 2ＣＡＢＬＥ， ＮＯＺＺＬＥ ＣＯＮＴＲＯＬ ２; |
GH1-6153D-00-00 |
from US $130.54 |
||
|
11
|
11
GH1-6153D-10-00 Cable,nozzle Control 2ＣＡＢＬＥ， ＮＯＺＺＬＥ ＣＯＮＴＲＯＬ ２; |
GH1-6153D-10-00 |
from US $93.94 |
||
|
12
|
12
90387-05916-00 CollarＣＯＬＬＡＲ; |
90387-05916-00 |
from US $6.43 |
||
|
13
|
13
90149-05960-00 ScrewＳＣＲＥＷ; |
90149-05960-00 |
from US $1.98 |
||
|
14
|
14
90201-05928-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05928-00 |
US $1.98 |
||
| replacements | |||||
|
14
|
14
90201-05M09-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05M09-00 |
from US $1.98 |
||
|
14
|
14
90201-05800-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05800-00 |
from US $1.98 |
||
|
15
|
15
GH1-6153E-01-00 Cable,nozzle Control 3ＣＡＢＬＥ， ＮＯＺＺＬＥ ＣＯＮＴＲＯＬ ３; |
GH1-6153E-01-00 |
from US $305.75 |
||
|
16
|
16
GH1-6153J-01-00
Remocon,nozzle 2
ＲＥＭＯＣＯＮ， ＮＯＺＺＬＥ ２; |
GH1-6153J-01-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
ＲＥＭＯＣＯＮ， ＮＯＺＺＬＥ ２; |
999-99999-99-00 |
— | ||
|
17
|
17
GH1-6153M-01-00
Wheel Assy
．ＷＨＥＥＬ ＡＳＳＹ; |
GH1-6153M-01-00 |
— | ||
|
18
|
18
978-80050-20-00
Screw, Pan Head
．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
978-80050-20-00 |
— | ||
| replacements | |||||
|
18
|
18
98580-05020-00 Screw, Pan Head．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-05020-00 |
from US $1.56 |
||
|
18
|
18
97885-05020-00 Screw, Pan Head．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-05020-00 |
from US $2.13 |
||
|
19
|
19
95380-05600-00 Nut．ＮＵＴ; |
95380-05600-00 |
from US $1.42 |
||
|
20
|
20
92990-05300-00 Washer, Internal Tooth．ＷＡＳＨＥＲ， ＩＮＴＥＲＮＡＬ ＴＯＯＴＨ; |
92990-05300-00 |
from US $1.56 |
||
|
21
|
21
EL8-48193-00-00 Washer 3．ＷＡＳＨＥＲ ３; |
EL8-48193-00-00 |
from US $9.35 |
||
|
22
|
22
GH1-6046C-00-00 End,cableＥＮＤ， ＣＡＢＬＥ; |
GH1-6046C-00-00 |
US $7.42 |
||
|
23
|
23
92990-06200-00 Washer, PlainＷＡＳＨＥＲ; |
92990-06200-00 |
from US $1.18 |
||
|
24
|
24
95780-06300-00 P58 Nut, NylonＮＵＴ， ＮＹＬＯＮ; |
95780-06300-00 |
from US $4.11 |
||
|
25
|
25
GH1-67252-01-00 Cable, ThrottleＣＡＢＬＥ， ＴＨＲＯＴＴＬＥ; |
GH1-67252-01-00 |
from US $147.73 |
||
|
26
|
26
90600-91728-00 ClampＣＬＩＰ， ＮＹＬＯＮ １７; |
90600-91728-00 |
from US $2.08 |
||
|
27
|
27
97780-50116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50116-00 |
from US $1.52 |
||
|
28
|
28
GH1-67242-00-00 Cable, ChokeＣＡＢＬＥ， ＣＨＯＫＥ; |
GH1-67242-00-00 |
US $125.68 |
||
|
29
|
29
EW2-67243-00-00 Knob, Choke．ＫＮＯＢ; |
EW2-67243-00-00 |
from US $22.25 |
||
|
30
|
30
90149-03930-00 Screw．ＳＣＲＥＷ; |
90149-03930-00 |
from US $10.48 |
||
|
31
|
31
90601-20006-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
31
|
31
90601-20009-00 Band (Eu0)ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20009-00 |
from US $2.27 |
||
|
32
|
32
EU0-67267-00-00 Connector,cableＣＯＮＮＥＣＴＯＲ， ＣＡＢＬＥ; |
EU0-67267-00-00 |
from US $38.96 |
||
|
33
|
33
EU0-62694-00-00 Cap．ＣＡＰ; |
EU0-62694-00-00 |
from US $8.19 |
||
|
34
|
34
EU0-61446-00-00 Washer．ＷＡＳＨＥＲ ３０; |
EU0-61446-00-00 |
from US $5.97 |
||
|
35
|
35
EU0-61486-00-00 Stopper．ＳＴＯＰＰＥＲ; |
EU0-61486-00-00 |
from US $3.20 |
||
|
36
|
36
EU0-61435-00-00 Seal, Pipe 30．ＳＥＡＬ， ＰＩＰＥ ３０; |
EU0-61435-00-00 |
from US $5.41 |
||
|
37
|
37
EU0-61438-00-00 Packing．ＰＡＣＫＩＮＧ ; Ｃ |
EU0-61438-00-00 |
from US $4.04 |
||
|
38
|
38
EU0-62241-30-00 Nut, Drain 1．ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
|
39
|
39
970-80060-12-00 BoltＢＯＬＴ; |
970-80060-12-00 |
from US $2.22 |
||
|
40
|
40
GH1-6043H-00-00 Clamp, CableＣＬＡＭＰ， ＣＡＢＬＥ; |
GH1-6043H-00-00 |
US $21.49 |
||
|
41
|
41
GH1-6043J-00-00 Shim,cableＳＨＩＭ， ＣＡＢＬＥ; |
GH1-6043J-00-00 |
US $12.13 |
||
|
42
|
42
90119-06908-00 Bolt With Washer (Eu0)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06908-00 |
from US $2.27 |
||
|
43
|
43
EU0-61461-30-00 Shaft,joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
43
|
43
F0V-U1461-00-00 Stud, Joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
F0V-U1461-00-00 |
from US $51.53 |
||
|
44
|
44
FJ0-67578-00-00
Packing, Hose 2
ＰＡＣＫＩＮＧ， ＨＯＳＥ ２; |
FJ0-67578-00-00 |
— | ||
|
45
|
45
GH1-61481-02-00
Cable, Steering
ＣＡＢＬＥ， ＳＴＥＥＲＩＮＧ; |
GH1-61481-02-00 |
— | ||
|
46
|
46
FJ0-67578-00-00
Packing, Hose 2
ＰＡＣＫＩＮＧ， ＨＯＳＥ ２; |
FJ0-67578-00-00 |
— | ||
|
47
|
47
EU0-61461-30-00 Shaft,joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
47
|
47
F0V-U1461-00-00 Stud, Joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
F0V-U1461-00-00 |
from US $51.53 |
||
|
48
|
48
EU0-61461-01-00
Stood, Joint Ball
ＳＴＵＤ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-01-00 |
— | ||
|
49
|
49
95720-06300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
50
|
50
90699-36085-00 Spirap 11ＳＰＩＲＡＰ １１; |
90699-36085-00 |
from US $13.88 |
||
| replacement | |||||
|
50
|
50
90699-36100-00 Spiral TubeＳＰＩＲＡＰ １１; |
90699-36100-00 |
from US $13.88 |
||
|
51
|
51
GH1-6155B-00-00
Grip,inner
ＧＲＩＰ， ＩＮＮＥＲ; |
GH1-6155B-00-00 |
— | ||
