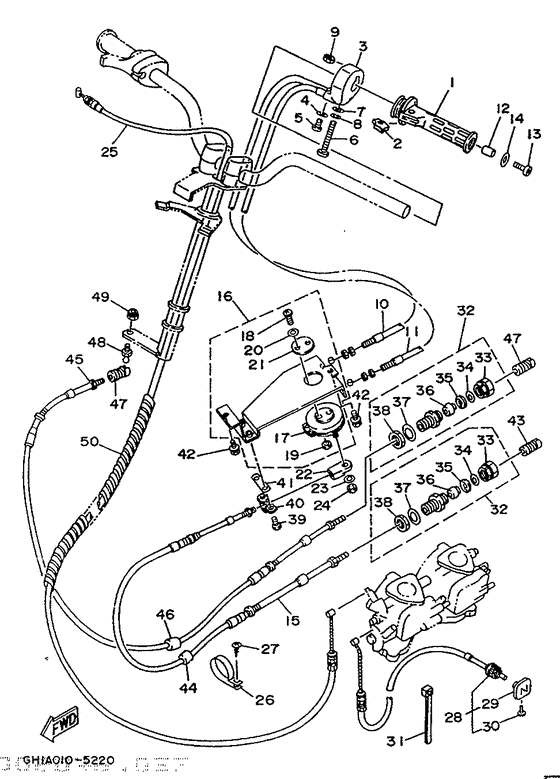

Control cable Diagram Yamaha RA700
- Model code
- GH63
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
GH1-6156B-00-00
Grip Assy
|
GH1-6156B-00-00 |
— | ||
| replacements | |||||
|
01
|
01
GH1-6155C-00-00
Grip,handle
|
GH1-6155C-00-00 |
— | ||
|
01
|
01
GH1-6153H-00-00
Remocon, Nozzle 1
|
GH1-6153H-00-00 |
— | ||
|
01
|
01
GH1-6155B-00-00
Grip,inner
|
GH1-6155B-00-00 |
— | ||
|
02
|
02
GH1-6151M-00-00 Lever Assy |
GH1-6151M-00-00 |
from US $24.24 |
||
|
03
|
03
GH1-6152M-01-00 Housing Assy |
GH1-6152M-01-00 |
from US $120.90 |
||
|
04
|
04
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
05
|
05
98980-04010-00 Screw, Bind |
98980-04010-00 |
from US $1.39 |
||
|
06
|
06
97880-06065-00 Screw, Pan Head |
97880-06065-00 |
from US $7.23 |
||
| replacement | |||||
|
06
|
06
98580-06565-00 Screw, Pan Head |
98580-06565-00 |
from US $7.23 |
||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
08
|
08
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
09
|
09
GH1-6143B-00-00 Nut,special |
GH1-6143B-00-00 |
US $4.77 |
||
|
10
|
10
GH1-6153D-00-00 Cable,nozzle Control 2 |
GH1-6153D-00-00 |
from US $130.54 |
||
|
11
|
11
GH1-6153D-10-00 Cable,nozzle Control 2 |
GH1-6153D-10-00 |
from US $93.94 |
||
|
12
|
12
90387-05916-00 Collar |
90387-05916-00 |
from US $6.43 |
||
|
13
|
13
90149-05960-00 Screw |
90149-05960-00 |
from US $1.98 |
||
|
14
|
14
90201-05928-00 Washer, Plate |
90201-05928-00 |
US $1.98 |
||
| replacements | |||||
|
14
|
14
90201-05M09-00 Washer, Plate |
90201-05M09-00 |
from US $1.98 |
||
|
14
|
14
90201-05800-00 Washer, Plate |
90201-05800-00 |
from US $1.98 |
||
|
15
|
15
GH1-6153E-01-00 Cable,nozzle Control 3 |
GH1-6153E-01-00 |
from US $305.75 |
||
|
16
|
16
GH1-6153J-01-00
Remocon,nozzle 2
|
GH1-6153J-01-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
GH1-6153M-01-00
Wheel Assy
|
GH1-6153M-01-00 |
— | ||
|
18
|
18
978-80050-20-00
Screw, Pan Head
|
978-80050-20-00 |
— | ||
| replacements | |||||
|
18
|
18
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
18
|
18
97885-05020-00 Screw, Pan Head |
97885-05020-00 |
from US $2.13 |
||
|
19
|
19
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
20
|
20
92990-05300-00 Washer, Internal Tooth |
92990-05300-00 |
from US $1.56 |
||
|
21
|
21
EL8-48193-00-00 Washer 3 |
EL8-48193-00-00 |
from US $9.35 |
||
|
22
|
22
GH1-6046C-00-00 End,cable |
GH1-6046C-00-00 |
US $7.42 |
||
|
23
|
23
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
24
|
24
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
25
|
25
GJ1-U7252-00-00 Cable, ThrottleYmus |
GJ1-U7252-00-00 |
US $127.80 |
||
|
26
|
26
90600-913U3-00 ClampYmus |
90600-913U3-00 |
US $0.97 |
||
| replacement | |||||
|
26
|
26
90600-918U3-00 Clip, Nylon 18Ymus |
90600-918U3-00 |
from US $0.95 |
||
|
27
|
27
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
|
28
|
28
GJ1-U7242-00-00 Cable, ChokeYmus |
GJ1-U7242-00-00 |
US $225.94 |
||
| replacement | |||||
|
28
|
28
GJ1-YU724-02-00 Cable,chokeYmus |
GJ1-YU724-02-00 |
US $225.94 |
||
|
29
|
29
GA9-U724C-00-00
Knob, Choke
Ymus |
GA9-U724C-00-00 |
— | ||
| replacement | |||||
|
29
|
29
GP7-U724C-00-00
Choke Knob
Ymus |
GP7-U724C-00-00 |
— | ||
|
30
|
30
GA9-U724D-00-00 ScrewYmus |
GA9-U724D-00-00 |
from US $5.73 |
||
| replacement | |||||
|
30
|
30
GP7-U724D-00-00 Screw, KnobYmus |
GP7-U724D-00-00 |
US $5.29 |
||
|
31
|
31
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
31
|
31
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
32
|
32
EU0-67267-00-00 Connector,cable |
EU0-67267-00-00 |
from US $38.96 |
||
|
33
|
33
EU0-62694-00-00 Cap |
EU0-62694-00-00 |
from US $8.19 |
||
|
34
|
34
EU0-61446-00-00 Washer |
EU0-61446-00-00 |
from US $5.97 |
||
|
35
|
35
EU0-61486-00-00 Stopper |
EU0-61486-00-00 |
from US $3.20 |
||
|
36
|
36
EU0-61435-00-00 Seal, Pipe 30 |
EU0-61435-00-00 |
from US $5.41 |
||
|
37
|
37
EU0-61438-00-00 Packing |
EU0-61438-00-00 |
from US $4.04 |
||
|
38
|
38
EU0-62241-30-00 Nut, Drain 1 |
EU0-62241-30-00 |
from US $10.77 |
||
|
39
|
39
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
40
|
40
GH1-6043H-00-00 Clamp, Cable |
GH1-6043H-00-00 |
US $21.49 |
||
|
41
|
41
GH1-6043J-00-00 Shim,cable |
GH1-6043J-00-00 |
US $12.13 |
||
|
42
|
42
90119-06908-00 Bolt With Washer (Eu0) |
90119-06908-00 |
from US $2.27 |
||
|
43
|
43
EU0-U1461-30-00 Shaft, Joint BallYmus |
EU0-U1461-30-00 |
from US $26.07 |
||
| replacements | |||||
|
43
|
43
F0V-U1461-00-00 Stud, Joint BallYmus |
F0V-U1461-00-00 |
from US $51.53 |
||
|
43
|
43
EU0-61461-30-00 Shaft,joint BallYmus |
EU0-61461-30-00 |
from US $26.07 |
||
|
44
|
44
GJ1-67578-00-00 Packing, Hose 2 |
GJ1-67578-00-00 |
US $2.54 |
||
|
45
|
45
GH6-U1481-00-00
Cable, Steering
Ymus |
GH6-U1481-00-00 |
— | ||
|
46
|
46
GJ1-67578-00-00 Packing, Hose 2 |
GJ1-67578-00-00 |
US $2.54 |
||
|
47
|
47
EU0-U1461-30-00 Shaft, Joint BallYmus |
EU0-U1461-30-00 |
from US $26.07 |
||
| replacements | |||||
|
47
|
47
F0V-U1461-00-00 Stud, Joint BallYmus |
F0V-U1461-00-00 |
from US $51.53 |
||
|
47
|
47
EU0-61461-30-00 Shaft,joint BallYmus |
EU0-61461-30-00 |
from US $26.07 |
||
|
48
|
48
EU0-U1461-01-00
Stud, Joint Ball
Ymus |
EU0-U1461-01-00 |
— | ||
| replacements | |||||
|
48
|
48
EU0-61461-01-00
Stood, Joint Ball
Ymus |
EU0-61461-01-00 |
— | ||
|
48
|
48
EU0-61461-02-00 Stud, Joint BallYmus |
EU0-61461-02-00 |
from US $18.20 |
||
|
48
|
48
EU0-U1461-02-00
Stud, Joint Ball
Ymus |
EU0-U1461-02-00 |
— | ||
|
48
|
48
EU0-U1461-10-00 SHAFT, JOINT BALLYmus |
EU0-U1461-10-00 |
from US $27.20 |
||
|
49
|
49
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
50
|
50
90699-36U01-00 Spirap,11Ymus |
90699-36U01-00 |
US $13.88 |
||
| replacement | |||||
|
50
|
50
90699-36100-00 Spiral TubeYmus |
90699-36100-00 |
from US $13.88 |
||
