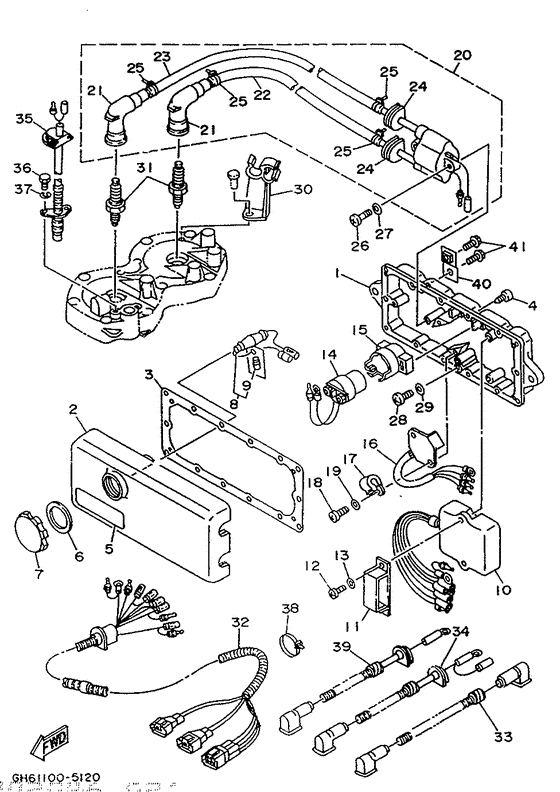

Electrical 1 Diagram Yamaha RA700
- Model code
- GH63
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
62L-8552A-00-98 HousingLow gloss black |
62L-8552A-00-98 |
from US $137.19 |
||
| replacement | |||||
|
01
|
01
62L-8552A-00-8P HousingLow gloss black |
62L-8552A-00-8P |
from US $137.19 |
||
|
02
|
02
6M6-8552E-00-00 Cover, Case |
6M6-8552E-00-00 |
from US $49.18 |
||
| replacement | |||||
|
02
|
02
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
03
|
03
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
04
|
04
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
04
|
04
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
05
|
05
61L-83623-00-00 Mark 3Ur japan |
61L-83623-00-00 |
US $15.17 |
||
| replacement | |||||
|
05
|
05
63N-83623-00-00 Mark 3Ur japan |
63N-83623-00-00 |
US $6.25 |
||
|
05
|
05
6R7-83623-40-00 Mark 3Ur english |
6R7-83623-40-00 |
from US $7.23 |
||
|
05
|
05
6R7-83623-50-00
Mark 3
Ur french |
6R7-83623-50-00 |
— | ||
|
06
|
06
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
07
|
07
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
08
|
08
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
08
|
08
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
09
|
09
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
09
|
09
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
10
|
10
62T-85540-00-00 C.d.i. Unit Assy |
62T-85540-00-00 |
US $586.08 |
||
| replacements | |||||
|
10
|
10
62T-85540-01-00 C.d.i. Unit Assy |
62T-85540-01-00 |
US $586.08 |
||
|
10
|
10
62T-85540-04-00 CDI UNIT ASSY |
62T-85540-04-00 |
from US $586.08 |
||
|
11
|
11
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
12
|
12
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
15
|
15
6M6-81952-01-00
Holder, Relay
|
6M6-81952-01-00 |
— | ||
|
16
|
16
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
17
|
17
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
18
|
18
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
62E-85570-10-00
Ignition Coil Assy
|
62E-85570-10-00 |
— | ||
| replacement | |||||
|
20
|
20
62E-85570-11-00 Ignition Coil Assy |
62E-85570-11-00 |
from US $237.64 |
||
|
21
|
21
62E-82731-10-00 Cap, Plug |
62E-82731-10-00 |
US $15.86 |
||
|
22
|
22
62E-82351-00-00 Tube, Cord 2 |
62E-82351-00-00 |
US $31.23 |
||
| replacement | |||||
|
22
|
22
6R8-82352-00-00 Tube, Cord 2 |
6R8-82352-00-00 |
US $31.23 |
||
|
23
|
23
62E-82352-00-00 Tube, Cord 2 |
62E-82352-00-00 |
US $31.23 |
||
| replacement | |||||
|
23
|
23
6R8-82352-00-00 Tube, Cord 2 |
6R8-82352-00-00 |
US $31.23 |
||
|
24
|
24
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
25
|
25
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
25
|
25
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
25
|
25
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
26
|
26
978-80060-30-00
Screw, Pan Head
|
978-80060-30-00 |
— | ||
| replacement | |||||
|
26
|
26
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
28
|
28
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
30
|
30
62T-82361-00-00 Clamp, Cord |
62T-82361-00-00 |
from US $9.07 |
||
|
31
|
31
94702-00195-00 Br8Hs Ngk Screw Top |
94702-00195-00 |
from US $7.08 |
||
| replacements | |||||
|
31
|
31
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK) |
BR8-HS000-00-00 |
US $26.36 |
||
|
31
|
31
94701-00195-00 Plug,spark(Ngk Br8Hs) |
94701-00195-00 |
US $7.76 |
||
|
31
|
31
NGK-BR8HS-00-00 Br8Hs Ngk Screw Top |
NGK-BR8HS-00-00 |
US $23.40 |
||
|
32
|
32
62T-82553-01-00 Extension, Wire Lead |
62T-82553-01-00 |
US $284.18 |
||
|
33
|
33
62T-82117-00-00 Wire, Lead |
62T-82117-00-00 |
US $84.29 |
||
| replacement | |||||
|
33
|
33
62T-82117-01-00 Wire, Lead |
62T-82117-01-00 |
US $84.29 |
||
|
34
|
34
62T-82117-10-00 Wire, Lead |
62T-82117-10-00 |
US $71.68 |
||
| replacement | |||||
|
34
|
34
62T-82117-11-00 Wire, Lead |
62T-82117-11-00 |
US $71.68 |
||
|
35
|
35
62T-82560-01-00 Thermoswitch Assy |
62T-82560-01-00 |
from US $164.41 |
||
|
36
|
36
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
36
|
36
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
37
|
37
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
38
|
38
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
38
|
38
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
39
|
39
62L-82117-20-00 Wire, Lead |
62L-82117-20-00 |
from US $52.50 |
||
|
40
|
40
GH6-6815D-00-00 Bracket,electric Box |
GH6-6815D-00-00 |
US $14.09 |
||
|
41
|
41
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
