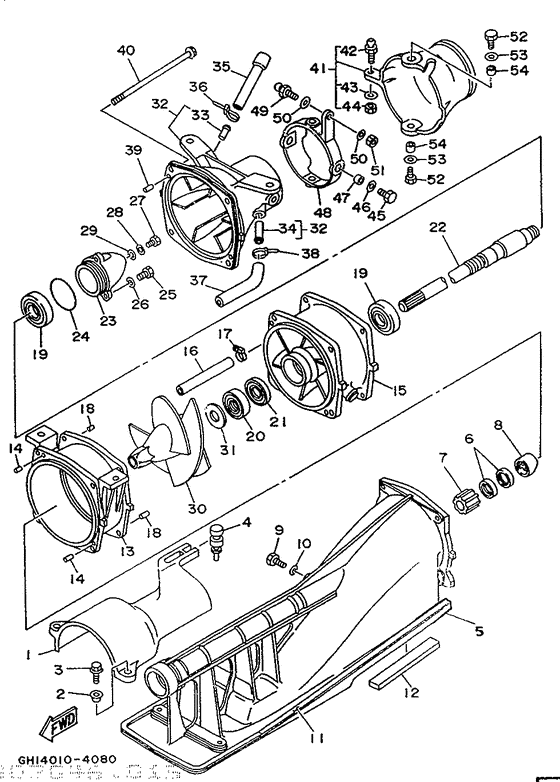

Jet unit 1 Diagram Yamaha RA700
- Model code
- GH63
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
62T-51381-00-00
Cover
|
62T-51381-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
90387-06M60-00 Collar |
90387-06M60-00 |
from US $3.72 |
||
|
03
|
03
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
03
|
03
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
03
|
03
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
04
|
04
90480-06M46-00 Grommet |
90480-06M46-00 |
from US $5.24 |
||
|
05
|
05
62T-51311-00-94
Duct, Intake
|
62T-51311-00-94 |
— | ||
| replacements | |||||
|
05
|
05
62T-51311-03-94
Duct, Intake
|
62T-51311-03-94 |
— | ||
|
05
|
05
62T-51311-02-94
Duct, Intake
|
62T-51311-02-94 |
— | ||
|
06
|
06
93102-18M35-00 Oil Seal |
93102-18M35-00 |
from US $10.63 |
||
|
07
|
07
6R8-45318-00-00 Bushing, Drive Shaft |
6R8-45318-00-00 |
US $49.24 |
||
|
08
|
08
6R8-51348-00-5B Spacer |
6R8-51348-00-5B |
US $49.45 |
||
| replacement | |||||
|
08
|
08
6R8-51348-02-94 Spacer |
6R8-51348-02-94 |
US $30.91 |
||
|
09
|
09
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
09
|
09
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
6R8-51367-01-00 Felt, Packing |
6R8-51367-01-00 |
from US $10.20 |
||
|
12
|
12
63M-51368-00-00 Felt, Packing |
63M-51368-00-00 |
from US $5.67 |
||
|
13
|
13
6R8-51312-00-94 Housing, Impeller |
6R8-51312-00-94 |
from US $482.26 |
||
| replacement | |||||
|
13
|
13
6R8-51312-03-94 Housing, Impeller |
6R8-51312-03-94 |
from US $508.25 |
||
|
14
|
14
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
15
|
15
62T-51315-00-94
Duct, Impeller
|
62T-51315-00-94 |
— | ||
| replacement | |||||
|
15
|
15
62T-51315-01-00
Duct, Impeller
|
62T-51315-01-00 |
— | ||
|
16
|
16
90445-14M17-00 Hose (L102) |
90445-14M17-00 |
from US $4.84 |
||
|
17
|
17
90450-14M05-00 Hose Clamp Assy(62T) |
90450-14M05-00 |
from US $9.07 |
||
|
18
|
18
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
19
|
19
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
19
|
19
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $23.24 |
||
|
20
|
20
93102-25M34-00 Oil Seal |
93102-25M34-00 |
from US $14.57 |
||
|
21
|
21
93101-25M50-00 Oil Seal |
93101-25M50-00 |
from US $9.15 |
||
|
22
|
22
6R8-45511-00-00 Shaft, Drive |
6R8-45511-00-00 |
US $573.21 |
||
|
23
|
23
6R7-51326-00-94 Cap |
6R7-51326-00-94 |
from US $61.90 |
||
| replacement | |||||
|
23
|
23
62T-51326-00-00 Cap |
62T-51326-00-00 |
from US $61.90 |
||
|
24
|
24
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $4.72 |
||
|
25
|
25
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
25
|
25
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
27
|
27
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
27
|
27
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
29
|
29
90430-06M03-00 Gasket |
90430-06M03-00 |
from US $1.70 |
||
|
30
|
30
62T-51321-B0-00 Impeller |
62T-51321-B0-00 |
US $986 |
||
|
31
|
31
62T-51348-00-00 Spacer |
62T-51348-00-00 |
from US $24.51 |
||
|
32
|
32
62T-51318-00-5B Nozzle |
62T-51318-00-5B |
from US $276.97 |
||
| replacement | |||||
|
32
|
32
62T-51318-01-94 Nozzle |
62T-51318-01-94 |
from US $338.15 |
||
|
33
|
33
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
34
|
34
62T-51129-00-00 Nipple |
62T-51129-00-00 |
from US $15.16 |
||
|
35
|
35
62T-51673-00-00
Pipe 1
|
62T-51673-00-00 |
— | ||
|
36
|
36
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
36
|
36
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
37
|
37
90445-14M24-00 Hose (L380) |
90445-14M24-00 |
from US $11.33 |
||
| replacement | |||||
|
37
|
37
90445-14M25-00 Hose (L380) |
90445-14M25-00 |
from US $11.33 |
||
|
38
|
38
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
38
|
38
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
39
|
39
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
40
|
40
90101-06M04-00 Bolt |
90101-06M04-00 |
from US $14.45 |
||
|
41
|
41
62T-51313-00-00
Nozzle, Deflector
|
62T-51313-00-00 |
— | ||
| replacement | |||||
|
41
|
41
62T-51313-02-00
Nozzle, Deflector
|
62T-51313-02-00 |
— | ||
|
42
|
42
6R7-42316-00-00 Bolt, Joint |
6R7-42316-00-00 |
from US $19.69 |
||
|
43
|
43
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
44
|
44
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
44
|
44
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
45
|
45
97395-08018-00 Bolt |
97395-08018-00 |
from US $3.12 |
||
| replacement | |||||
|
45
|
45
97095-08018-00 Bolt, Hexagon |
97095-08018-00 |
from US $3.47 |
||
|
46
|
46
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
46
|
46
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
47
|
47
90387-08M08-00 Collar |
90387-08M08-00 |
from US $6.40 |
||
| replacement | |||||
|
47
|
47
90387-08M27-00
Collar
|
90387-08M27-00 |
— | ||
|
48
|
48
62T-51190-00-5B Ring,trim |
62T-51190-00-5B |
from US $64.91 |
||
| replacements | |||||
|
48
|
48
62T-51190-01-94 Ring,trim |
62T-51190-01-94 |
from US $61.94 |
||
|
48
|
48
62T-51190-01-00 Ring,trim |
62T-51190-01-00 |
from US $83 |
||
|
49
|
49
6R7-42316-00-00 Bolt, Joint |
6R7-42316-00-00 |
from US $19.69 |
||
|
50
|
50
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
51
|
51
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
51
|
51
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
52
|
52
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
53
|
53
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
53
|
53
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
54
|
54
90387-08M06-00 Collar |
90387-08M06-00 |
from US $5.97 |
||
