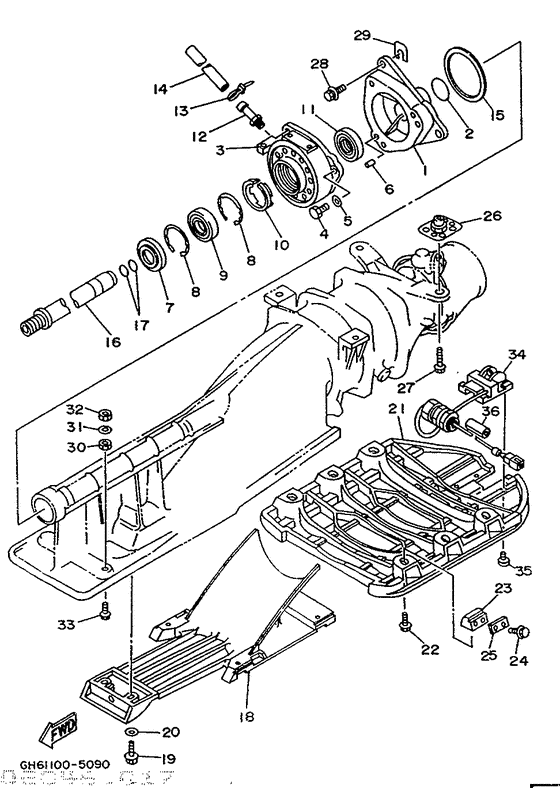

Jet unit 2 Diagram Yamaha RA700
- Model code
- GH63
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
62G-45331-00-94 Housing, Bearing |
62G-45331-00-94 |
from US $54.21 |
||
| replacement | |||||
|
01
|
01
62G-45331-01-94
Housing, Bearing
|
62G-45331-01-94 |
— | ||
|
02
|
02
93210-35M72-00 O-Ring |
93210-35M72-00 |
from US $7.65 |
||
|
03
|
03
61X-45332-01-9M
Housing, Bearing
|
61X-45332-01-9M |
— | ||
| replacements | |||||
|
03
|
03
61X-45332-03-94
Housing, Bearing
|
61X-45332-03-94 |
— | ||
|
03
|
03
61X-45332-03-00 Housing, Bearing |
61X-45332-03-00 |
from US $224.41 |
||
|
03
|
03
61X-G5332-00-00 HOUSING, BEARING |
61X-G5332-00-00 |
from US $232.85 |
||
|
04
|
04
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
04
|
04
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
04
|
04
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
05
|
05
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
05
|
05
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
06
|
06
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
07
|
07
93101-25M55-00 Oil Seal |
93101-25M55-00 |
from US $13.18 |
||
|
08
|
08
93430-47M04-00 Circlip |
93430-47M04-00 |
from US $5.06 |
||
|
09
|
09
93306-205U6-00 Bearing |
93306-205U6-00 |
from US $47.25 |
||
|
10
|
10
63M-51348-00-00
Spacer
|
63M-51348-00-00 |
— | ||
|
11
|
11
93101-25M56-00 Oil Seal |
93101-25M56-00 |
US $19.56 |
||
| replacement | |||||
|
11
|
11
93101-24001-00 Oil Seal |
93101-24001-00 |
from US $19.56 |
||
|
12
|
12
61L-45378-00-00 Nipple, Hose |
61L-45378-00-00 |
from US $8.08 |
||
|
13
|
13
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
13
|
13
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
14
|
14
90445-09M21-00 Hose (L445) |
90445-09M21-00 |
from US $14.73 |
||
|
15
|
15
6K8-45127-00-00 Seal |
6K8-45127-00-00 |
from US $11.19 |
||
|
16
|
16
6R8-51323-10-00
Shaft, Coupler
|
6R8-51323-10-00 |
— | ||
|
17
|
17
93210-17MA4-00 O-Ring |
93210-17MA4-00 |
from US $1.70 |
||
|
18
|
18
63N-51333-00-5B Screen, Intake |
63N-51333-00-5B |
from US $109.15 |
||
| replacement | |||||
|
18
|
18
63N-51333-02-94
Screen, Intake
|
63N-51333-02-94 |
— | ||
|
19
|
19
97095-06018-00 Bolt |
97095-06018-00 |
from US $4.11 |
||
| replacement | |||||
|
19
|
19
97080-06018-00 Bolt (Fj0) |
97080-06018-00 |
from US $4.11 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
GJ1-U273B-00-00 Plate 2Ymus |
GJ1-U273B-00-00 |
US $226.22 |
||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
Ymus |
999-99999-99-00 |
— | ||
|
22
|
22
90119-089U6-00 Bolt, With WasherYmus |
90119-089U6-00 |
from US $4.81 |
||
| replacement | |||||
|
22
|
22
901-19088-29-00 Bolt, With WasherYmus |
901-19088-29-00 |
from US $8.50 |
||
|
23
|
23
GJ1-62733-00-00 Packing |
GJ1-62733-00-00 |
from US $33.15 |
||
|
24
|
24
90119-089U5-00 Bolt, With WasherYmus |
90119-089U5-00 |
from US $4.34 |
||
| replacements | |||||
|
24
|
24
90119-089UL-00 Bolt, With WasherYmus |
90119-089UL-00 |
from US $6.94 |
||
|
24
|
24
90119-08907-00 Bolt, With WasherYmus |
90119-08907-00 |
from US $7.08 |
||
|
25
|
25
GH1-62663-01-00
Packing 1
|
GH1-62663-01-00 |
— | ||
|
26
|
26
90179-10925-00 Nut |
90179-10925-00 |
from US $7.37 |
||
|
27
|
27
90119-10906-00 Bolt |
90119-10906-00 |
US $9.95 |
||
|
28
|
28
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
|
29
|
29
GD0-U7249-00-05 Shim (T=0.5)Ur ymus |
GD0-U7249-00-05 |
from US $1.56 |
||
|
29
|
29
GD0-U7249-00-10 Shim (T=1.0)Ur ymus |
GD0-U7249-00-10 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
GD0-U7249-00-05 Shim (T=0.5)Ur ymus |
GD0-U7249-00-05 |
from US $1.56 |
||
|
29
|
29
GD0-67249-00-05 ShimUr |
GD0-67249-00-05 |
from US $1.15 |
||
| replacements | |||||
|
29
|
29
GD0-67249-A0-00 Shim (T=0.5)Ur |
GD0-67249-A0-00 |
from US $1.56 |
||
|
29
|
29
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
29
|
29
GD0-67249-00-10 ShimUr |
GD0-67249-00-10 |
from US $1.56 |
||
| replacements | |||||
|
29
|
29
999-99999-99-00
Not Available
Ur |
999-99999-99-00 |
— | ||
|
29
|
29
GD0-67249-B0-00 Shim (T=1.0)Ｔ＝１．０ Ur |
GD0-67249-B0-00 |
from US $1.56 |
||
|
30
|
30
90180-06900-00 Nut, T |
90180-06900-00 |
US $15.23 |
||
|
31
|
31
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
32
|
32
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2.36 |
||
|
33
|
33
90119-06934-00 Bolt, With Washer |
90119-06934-00 |
from US $2.45 |
||
|
34
|
34
GJ1-U8K31-00-00 Speed Sensor AssyYmus |
GJ1-U8K31-00-00 |
from US $165.17 |
||
| replacement | |||||
|
34
|
34
GJ1-U8K31-03-00 Sensor SpeedYmus |
GJ1-U8K31-03-00 |
from US $194.38 |
||
|
35
|
35
98780-05512-00 Screw, Flat Head |
98780-05512-00 |
from US $2.36 |
||
| replacement | |||||
|
35
|
35
98780-05012-00 Screw, Flat Head |
98780-05012-00 |
from US $2.69 |
||
|
36
|
36
GJ1-6822E-00-00 Gr0Mmet |
GJ1-6822E-00-00 |
US $25.72 |
||
