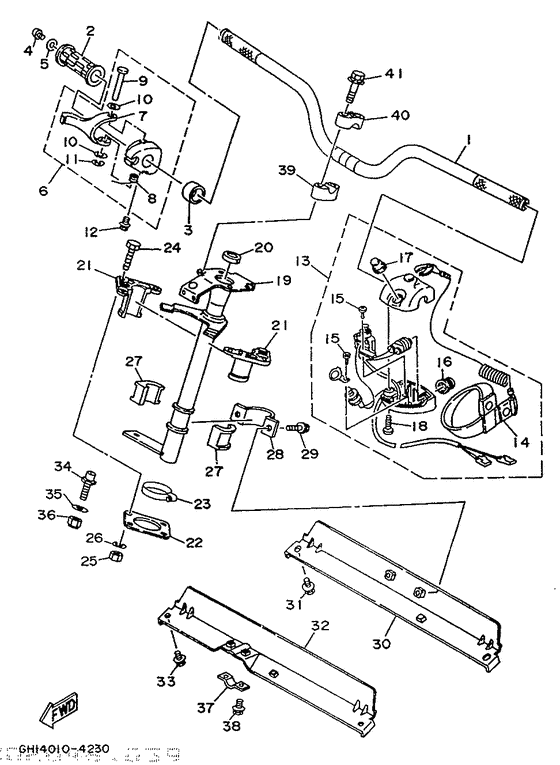

Steering 1 Diagram Yamaha RA700
- Model code
- GH63
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
GJ1-U1552-00-00
Handle
Ymus |
GJ1-U1552-00-00 |
— | ||
| replacements | |||||
|
01
|
01
GJ1-U1552-03-00
Handle
Ymus |
GJ1-U1552-03-00 |
— | ||
|
01
|
01
GJ1-U1552-02-00
Handle
Ymus |
GJ1-U1552-02-00 |
— | ||
|
02
|
02
EW2-61553-00-00 Grip, Handle |
EW2-61553-00-00 |
from US $20.50 |
||
|
03
|
03
90560-22281-00 Spacer |
90560-22281-00 |
from US $8.64 |
||
|
04
|
04
90149-05959-00 Screw,trass Head (Fj0) |
90149-05959-00 |
from US $1.98 |
||
|
05
|
05
90201-05928-00 Washer, Plate |
90201-05928-00 |
US $1.98 |
||
| replacements | |||||
|
05
|
05
90201-05M09-00 Washer, Plate |
90201-05M09-00 |
from US $1.98 |
||
|
05
|
05
90201-05800-00 Washer, Plate |
90201-05800-00 |
from US $1.98 |
||
|
06
|
06
EW2-67250-01-00 Throttle Lever Assy |
EW2-67250-01-00 |
from US $65.63 |
||
| replacement | |||||
|
06
|
06
EW2-67250-02-00 Throttle Lever Assy |
EW2-67250-02-00 |
from US $65.63 |
||
|
07
|
07
EW2-67255-00-00 Lever, Throttle |
EW2-67255-00-00 |
from US $24.51 |
||
|
08
|
08
EW2-67256-00-00 Spring |
EW2-67256-00-00 |
from US $3.40 |
||
|
09
|
09
EW2-67257-00-00 Shaft |
EW2-67257-00-00 |
from US $9.63 |
||
| replacement | |||||
|
09
|
09
EW2-67257-01-00 Shaft |
EW2-67257-01-00 |
from US $9.63 |
||
|
10
|
10
EW2-67258-01-00 Washer, Plate |
EW2-67258-01-00 |
US $1.07 |
||
| replacement | |||||
|
10
|
10
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
11
|
11
EW2-67259-01-00 Circlip |
EW2-67259-01-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
12
|
12
90159-05900-00 Screw, With Washer |
90159-05900-00 |
from US $2.27 |
||
|
13
|
13
FK7-68310-06-00
Switch Box Assy
|
FK7-68310-06-00 |
— | ||
| replacement | |||||
|
13
|
13
GA7-68310-01-00 Switch Box Assy |
GA7-68310-01-00 |
from US $340.18 |
||
|
14
|
14
EW2-68348-00-00 Lanyard, Stop Switch |
EW2-68348-00-00 |
from US $29.04 |
||
|
15
|
15
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
16
|
16
FK7-68312-02-00 Stop Button Comp |
FK7-68312-02-00 |
from US $7.42 |
||
|
17
|
17
FK7-68313-01-00 Start Button Comp |
FK7-68313-01-00 |
from US $11.90 |
||
| replacement | |||||
|
17
|
17
FK7-68313-02-00 Start Button Comp |
FK7-68313-02-00 |
from US $11.90 |
||
|
18
|
18
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
19
|
19
GH1-61541-01-00
Column, Steering
|
GH1-61541-01-00 |
— | ||
| replacements | |||||
|
19
|
19
GP2-61541-00-00
Column, Steering
|
GP2-61541-00-00 |
— | ||
|
19
|
19
GH1-61541-02-00
Column, Steering
|
GH1-61541-02-00 |
— | ||
|
20
|
20
GH1-61469-00-00 Packing, Steering Column |
GH1-61469-00-00 |
US $6.25 |
||
|
21
|
21
GH1-6141B-00-00 Bearing, Column |
GH1-6141B-00-00 |
from US $26.35 |
||
|
22
|
22
GH1-6143C-30-00 Seal,rubber |
GH1-6143C-30-00 |
US $8.15 |
||
|
23
|
23
90601-142U6-00 Band, HoseYmus |
90601-142U6-00 |
US $29.61 |
||
|
24
|
24
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
25
|
25
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
26
|
26
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
27
|
27
GH1-6141D-01-00 Bearing, Steering |
GH1-6141D-01-00 |
from US $13.46 |
||
|
28
|
28
EU0-61588-00-00 Joint, Bearing |
EU0-61588-00-00 |
US $34.29 |
||
|
29
|
29
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
30
|
30
GH1-61433-00-00 Bracket, Bearing |
GH1-61433-00-00 |
US $107.15 |
||
|
31
|
31
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
32
|
32
GH1-61467-01-00
Bracket,stopper Cable
|
GH1-61467-01-00 |
— | ||
|
33
|
33
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
34
|
34
FN8-6131B-00-00 Pin, Stopper |
FN8-6131B-00-00 |
from US $30.18 |
||
|
35
|
35
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
36
|
36
95720-10300-00 Nut |
95720-10300-00 |
from US $4.25 |
||
|
37
|
37
GH1-61468-01-00 Stopper, Cable |
GH1-61468-01-00 |
from US $11.12 |
||
|
38
|
38
90119-06908-00 Bolt With Washer (Eu0) |
90119-06908-00 |
from US $2.27 |
||
|
39
|
39
EU0-23814-01-00 Holder, Handle Upper |
EU0-23814-01-00 |
from US $14.73 |
||
| replacement | |||||
|
39
|
39
EU0-23814-02-00 Holder, Handle Upper |
EU0-23814-02-00 |
from US $14.73 |
||
|
40
|
40
EU0-23814-30-00 Holder, Handle Upper |
EU0-23814-30-00 |
from US $13.74 |
||
| replacements | |||||
|
40
|
40
EU0-23814-31-00 Holder, Handle Upper |
EU0-23814-31-00 |
from US $13.74 |
||
|
40
|
40
EU0-23814-32-00 Holder, Handle Upper |
EU0-23814-32-00 |
from US $22.22 |
||
|
41
|
41
90119-08925-00 Bolt, With Washer |
90119-08925-00 |
US $3.82 |
||
