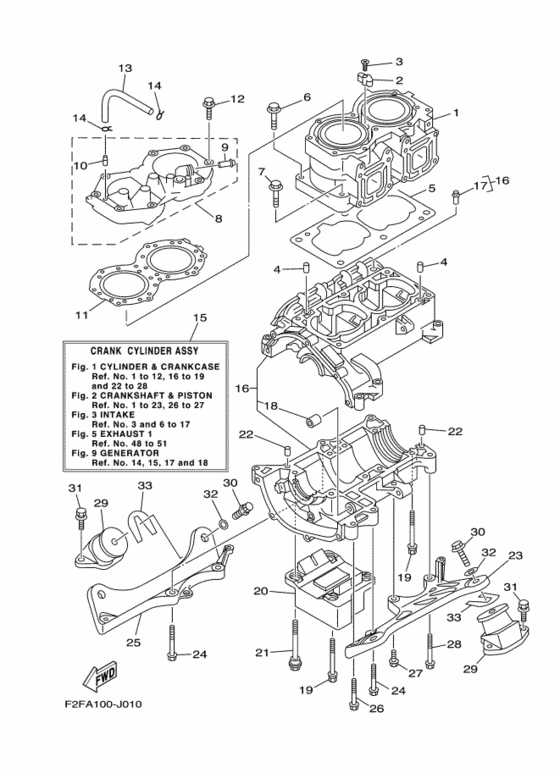

Cylinder & crankcase Diagram Yamaha SJ700 Super JET
- Model code
- F2FC
- Engine Capacity
- 700
- Year
- 2010
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61X-11311-01-8S Cylinder 1ＣＹＬＩＮＤＥＲ １; |
61X-11311-01-8S |
from US $958.14 |
||
|
2
|
2
6E5-11325-00-00 AnodeＡＮＯＤＥ; |
6E5-11325-00-00 |
from US $5.40 |
||
|
3
|
3
98780-04015-00 Screw,flat HeadＳＣＲＥＷ， ＦＬＡＴ ＨＥＡＤ; |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
3
|
3
98780-04014-00 Screw, Flat Head(Ga5)ＳＣＲＥＷ， ＦＬＡＴ ＨＥＡＤ; |
98780-04014-00 |
from US $1.70 |
||
|
4
|
4
936-06120-19-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; |
936-06120-19-00 |
from US $2.86 |
||
|
5
|
5
6M6-11351-A2-00 Gasket, CylinderＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ; |
6M6-11351-A2-00 |
from US $11.46 |
||
|
6
|
6
90119-10M56-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10M56-00 |
from US $3.97 |
||
|
7
|
7
90119-10M07-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10M07-00 |
from US $6.52 |
||
|
8
|
8
64U-11111-00-8S Head, Cylinder 1ＨＥＡＤ， ＣＹＬＩＮＤＥＲ １; |
64U-11111-00-8S |
from US $255.60 |
||
|
9
|
9
6K8-51129-00-00 Nipple．ＮＩＰＰＬＥ; |
6K8-51129-00-00 |
from US $7.65 |
||
|
10
|
10
6R7-14485-00-00 Pipe, Joint．ＰＩＰＥ， ＪＯＩＮＴ; |
6R7-14485-00-00 |
from US $8.93 |
||
|
11
|
11
62T-11181-01-00 Gasket, Cylinder Head 1ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ ＨＥＡＤ １; |
62T-11181-01-00 |
from US $51.52 |
||
|
12
|
12
90119-08M96-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08M96-00 |
from US $4.82 |
||
|
13
|
13
90445-07M19-00 Hose (L200)ＨＯＳＥ ; Ｌ２００ |
90445-07M19-00 |
from US $2.27 |
||
|
14
|
14
90467-06016-00 ClipＣＬＩＰ; |
90467-06016-00 |
from US $2.55 |
||
|
15
|
15
64V-W0090-02-8S Crank Cylinder AssyＣＲＡＮＫ ＣＹＬＩＮＤＥＲ ＡＳＳＹ; |
64V-W0090-02-8S |
from US $4,355.98 |
||
|
16
|
16
62T-15100-00-8S Crankcase AssyＣＲＡＮＫＣＡＳＥ ＡＳＳＹ; |
62T-15100-00-8S |
from US $996.61 |
||
| replacement | |||||
|
16
|
16
62T-15100-00-00 Crankcase AssyＣＲＡＮＫＣＡＳＥ ＡＳＳＹ; |
62T-15100-00-00 |
from US $992.56 |
||
|
17
|
17
62T-14251-10-00 Nipple．ＮＩＰＰＬＥ; |
62T-14251-10-00 |
from US $5.41 |
||
|
18
|
18
90380-12M29-00 Bush, Solid．ＢＵＳＨ， ＳＯＬＩＤ; |
90380-12M29-00 |
from US $8.74 |
||
|
19
|
19
90119-08M55-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08M55-00 |
from US $4.72 |
||
|
20
|
20
6BA-44532-00-00 Stopper, Upper MountＳＴＯＰＰＥＲ， ＵＰＰＥＲ ＭＯＵＮＴ; |
6BA-44532-00-00 |
from US $121.30 |
||
|
21
|
21
90109-08M56-00 BoltＢＯＬＴ; |
90109-08M56-00 |
from US $10.75 |
||
|
22
|
22
936-06120-19-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; |
936-06120-19-00 |
from US $2.86 |
||
|
23
|
23
6R7-21415-01-94 Bracket, Front Upper 1ＢＲＡＣＫＥＴ， ＦＲＯＮＴ ＵＰＰＥＲ １; |
6R7-21415-01-94 |
from US $137.21 |
||
| replacement | |||||
|
23
|
23
6R7-21415-01-00 Bracket, Front Upper 1ＢＲＡＣＫＥＴ， ＦＲＯＮＴ ＵＰＰＥＲ １; |
6R7-21415-01-00 |
from US $145.07 |
||
|
24
|
24
90119-10M02-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10M02-00 |
from US $9 |
||
| replacement | |||||
|
24
|
24
90119-10M23-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10M23-00 |
from US $5.40 |
||
|
25
|
25
6R7-21425-01-94 Bracket, Rear Upper 1ＢＲＡＣＫＥＴ， ＲＥＡＲ ＵＰＰＥＲ １; |
6R7-21425-01-94 |
from US $126.97 |
||
| replacement | |||||
|
25
|
25
6R7-21425-01-00 Bracket, Rear Upper 1ＢＲＡＣＫＥＴ， ＲＥＡＲ ＵＰＰＥＲ １; |
6R7-21425-01-00 |
from US $126.97 |
||
|
26
|
26
90119-10M01-00 Bolt, With Washer(63N)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10M01-00 |
from US $3.04 |
||
|
27
|
27
90119-10M00-00 Bolt, With Washer(63N)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10M00-00 |
from US $6.66 |
||
|
28
|
28
90119-10M03-00 Bolt, With Washer(63N)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10M03-00 |
from US $7.63 |
||
|
29
|
29
6R7-44517-00-8S Mount RubberＭＯＵＮＴ ＲＵＢＢＥＲ; |
6R7-44517-00-8S |
from US $41.73 |
||
|
30
|
30
90119-08904-00 Bolt With Washer (Eu0)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08904-00 |
from US $5.38 |
||
|
31
|
31
90119-08038-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08038-00 |
from US $2.36 |
||
|
32
|
32
EU0-67324-00-00 PlateＰＬＡＴＥ; |
EU0-67324-00-00 |
from US $4.68 |
||
|
33
|
33
EU0-67354-00-01 Sim (0.1)．ＳＨＩＭ ; Ｔ＝０１; ＵＲ |
EU0-67354-00-01 |
from US $3.97 |
||
| replacement | |||||
|
33
|
33
EU0-67354-A0-00 Shim (T=0.1)．ＳＨＩＭ ; Ｔ＝０１; ＵＲ |
EU0-67354-A0-00 |
from US $3.97 |
||
|
33
|
33
EU0-67354-00-03 Sim (0.3)．ＳＨＩＭ ; Ｔ＝０３; ＵＲ |
EU0-67354-00-03 |
from US $3.97 |
||
| replacement | |||||
|
33
|
33
EU0-67354-B0-00 Shim (T=0.3)．ＳＨＩＭ ; Ｔ＝０３; ＵＲ |
EU0-67354-B0-00 |
from US $3.97 |
||
|
33
|
33
EU0-67354-00-05 Sim (0.5)．ＳＨＩＭ ; Ｔ＝０５; ＵＲ |
EU0-67354-00-05 |
from US $3.97 |
||
| replacement | |||||
|
33
|
33
EU0-67354-C0-00 Shim (T=0.5)Ｔ＝０．５ ．ＳＨＩＭ ; Ｔ＝０５; ＵＲ |
EU0-67354-C0-00 |
from US $3.97 |
||
|
33
|
33
EU0-67354-00-10 Sim (1.0)．ＳＨＩＭ ; Ｔ＝１０; ＵＲ |
EU0-67354-00-10 |
from US $3.92 |
||
| replacement | |||||
|
33
|
33
EU0-67354-D0-00 Shim (T=1.0)Ｔ＝１．０ ．ＳＨＩＭ ; Ｔ＝１０; ＵＲ |
EU0-67354-D0-00 |
from US $4.53 |
||
|
33
|
33
EU0-67354-00-20 Sim (2.0)．ＳＨＩＭ ; Ｔ＝２０; ＵＲ |
EU0-67354-00-20 |
from US $3.92 |
||
| replacement | |||||
|
33
|
33
EU0-67354-E0-00 Shim (T=2.0)．ＳＨＩＭ ; Ｔ＝２０; ＵＲ |
EU0-67354-E0-00 |
from US $5.81 |
||
