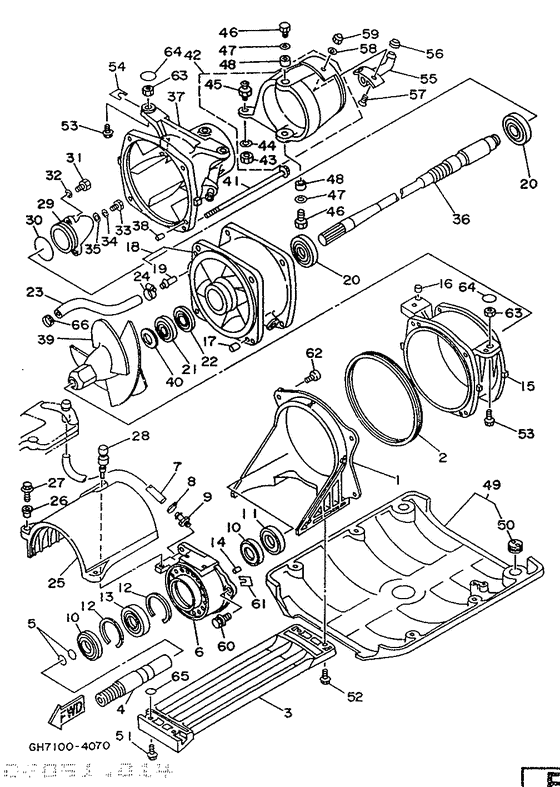

Jet unit Diagram Yamaha SJ700
- Model code
- GH73
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6R7-51311-00-00 Duct, Intake |
6R7-51311-00-00 |
from US $98.51 |
||
|
02
|
02
5R7-51117-01-00
Packing
|
5R7-51117-01-00 |
— | ||
|
03
|
03
6R7-51333-00-00 Screen, Intake |
6R7-51333-00-00 |
from US $94.92 |
||
|
04
|
04
6R7-51323-02-00 Shaft, Coupler |
6R7-51323-02-00 |
from US $309.48 |
||
|
05
|
05
93210-17MA4-00 O-Ring |
93210-17MA4-00 |
from US $1.70 |
||
|
06
|
06
61X-45332-00-9M Housing, Bearing |
61X-45332-00-9M |
from US $206.56 |
||
| replacement | |||||
|
06
|
06
999-99026-43-00 Housing Set, Bearing (61X-00) |
999-99026-43-00 |
from US $240.12 |
||
|
07
|
07
90445-09M17-00 Hose (L445) |
90445-09M17-00 |
from US $14.73 |
||
| replacement | |||||
|
07
|
07
90445-09M21-00 Hose (L445) |
90445-09M21-00 |
from US $14.73 |
||
|
08
|
08
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
08
|
08
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
08
|
08
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
09
|
09
61L-45378-00-00 Nipple, Hose |
61L-45378-00-00 |
from US $8.08 |
||
|
10
|
10
93101-25M55-00 Oil Seal |
93101-25M55-00 |
from US $13.18 |
||
|
11
|
11
93101-25M56-00 Oil Seal |
93101-25M56-00 |
US $19.56 |
||
| replacement | |||||
|
11
|
11
93101-24001-00 Oil Seal |
93101-24001-00 |
from US $19.56 |
||
|
12
|
12
93430-47M04-00 Circlip |
93430-47M04-00 |
from US $5.06 |
||
|
13
|
13
93306-205U5-00 Bearing |
93306-205U5-00 |
from US $44.59 |
||
| replacement | |||||
|
13
|
13
93306-205U6-00 Bearing |
93306-205U6-00 |
from US $47.25 |
||
|
14
|
14
93606-07M17-00 Pin, Dowel |
93606-07M17-00 |
from US $1.98 |
||
|
15
|
15
6R7-51312-00-94 Housing, Impeller |
6R7-51312-00-94 |
from US $375.12 |
||
| replacements | |||||
|
15
|
15
6R7-51312-03-94 Housing, Impeller |
6R7-51312-03-94 |
from US $375.12 |
||
|
15
|
15
6R7-51312-03-00 Housing, Impeller |
6R7-51312-03-00 |
from US $410.56 |
||
|
16
|
16
93606-07M17-00 Pin, Dowel |
93606-07M17-00 |
from US $1.98 |
||
|
17
|
17
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
18
|
18
62T-51315-00-94
Duct, Impeller
|
62T-51315-00-94 |
— | ||
| replacement | |||||
|
18
|
18
62T-51315-01-00
Duct, Impeller
|
62T-51315-01-00 |
— | ||
|
19
|
19
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
20
|
20
93306-205UO-00
Bearing
|
93306-205UO-00 |
— | ||
|
21
|
21
93102-25M34-00 Oil Seal |
93102-25M34-00 |
from US $14.57 |
||
|
22
|
22
93101-25M50-00 Oil Seal |
93101-25M50-00 |
from US $9.15 |
||
|
23
|
23
90445-14M12-00 Hose |
90445-14M12-00 |
US $13.27 |
||
| replacement | |||||
|
23
|
23
90445-14M11-00 Hose (L180) |
90445-14M11-00 |
US $13.27 |
||
|
24
|
24
90450-14M05-00 Hose Clamp Assy(62T) |
90450-14M05-00 |
from US $9.07 |
||
|
25
|
25
61X-51381-00-00 Cover |
61X-51381-00-00 |
from US $19.54 |
||
|
26
|
26
90387-06M60-00 Collar |
90387-06M60-00 |
from US $3.72 |
||
|
27
|
27
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
27
|
27
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
27
|
27
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
28
|
28
90480-06M69-00 Grommet |
90480-06M69-00 |
from US $23.85 |
||
|
29
|
29
6R7-51326-00-94 Cap |
6R7-51326-00-94 |
from US $61.90 |
||
| replacement | |||||
|
29
|
29
62T-51326-00-00 Cap |
62T-51326-00-00 |
from US $61.90 |
||
|
30
|
30
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $4.72 |
||
|
31
|
31
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
31
|
31
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
32
|
32
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
32
|
32
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
35
|
35
90430-06M03-00 Gasket |
90430-06M03-00 |
from US $1.70 |
||
|
36
|
36
6R7-45511-00-00 Shaft, Drive |
6R7-45511-00-00 |
from US $573.52 |
||
| replacement | |||||
|
36
|
36
6R7-45511-01-00 Shaft, Drive |
6R7-45511-01-00 |
from US $605.45 |
||
|
37
|
37
6R7-51318-04-5B Nozzle |
6R7-51318-04-5B |
from US $290.83 |
||
| replacement | |||||
|
37
|
37
6R7-51318-05-94 Nozzle |
6R7-51318-05-94 |
from US $348.16 |
||
|
38
|
38
93603-12019-00
Pin, Dowel
|
93603-12019-00 |
— | ||
|
39
|
39
6R7-51321-00-94
Impeller
|
6R7-51321-00-94 |
— | ||
| replacement | |||||
|
39
|
39
6R7-51321-00-8S Impeller |
6R7-51321-00-8S |
from US $172.70 |
||
|
40
|
40
90209-20M20-00 Spacer |
90209-20M20-00 |
from US $24.51 |
||
| replacement | |||||
|
40
|
40
62T-51348-00-00 Spacer |
62T-51348-00-00 |
from US $24.51 |
||
|
41
|
41
90119-06M70-00 Bolt, With Washer |
90119-06M70-00 |
from US $12.13 |
||
|
42
|
42
61L-51313-00-00 Nozzle, Deflector |
61L-51313-00-00 |
from US $101.23 |
||
|
43
|
43
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
43
|
43
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
44
|
44
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
45
|
45
6R7-42316-00-00 Bolt, Joint |
6R7-42316-00-00 |
from US $19.69 |
||
|
46
|
46
97395-08018-00 Bolt |
97395-08018-00 |
from US $3.12 |
||
| replacement | |||||
|
46
|
46
97095-08018-00 Bolt, Hexagon |
97095-08018-00 |
from US $3.47 |
||
|
47
|
47
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
47
|
47
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
48
|
48
90387-08M06-00 Collar |
90387-08M06-00 |
from US $5.97 |
||
|
49
|
49
EW2-62730-00-00 Plate 2 |
EW2-62730-00-00 |
from US $209.40 |
||
| replacements | |||||
|
49
|
49
F2F-6273B-00-00 Plate 2 |
F2F-6273B-00-00 |
from US $197.93 |
||
|
49
|
49
F2F-6273B-09-00 PLATE 2 |
F2F-6273B-09-00 |
from US $197.93 |
||
|
50
|
50
FK7-62732-00-00
Bolt, Jack
|
FK7-62732-00-00 |
— | ||
| replacement | |||||
|
50
|
50
FK7-62732-01-00
Bolt,jack
|
FK7-62732-01-00 |
— | ||
|
51
|
51
90119-06915-00 Bolt, With Washer |
90119-06915-00 |
from US $4.68 |
||
| replacements | |||||
|
51
|
51
901-19069-29-00 Bolt, With Washer |
901-19069-29-00 |
from US $4.68 |
||
|
51
|
51
901-19068-96-00 Bolt, With Washer |
901-19068-96-00 |
from US $4.68 |
||
|
52
|
52
90119-06908-00 Bolt With Washer (Eu0) |
90119-06908-00 |
from US $2.27 |
||
|
53
|
53
90119-10917-00
Bolt, With Washer
|
90119-10917-00 |
— | ||
|
54
|
54
EW2-67354-00-01 ShimUr |
EW2-67354-00-01 |
US $1.70 |
||
| replacement | |||||
|
54
|
54
EW2-67354-A0-00 Shim (T0.1)Ur |
EW2-67354-A0-00 |
US $0.88 |
||
|
54
|
54
EW2-67354-00-03 ShimUr |
EW2-67354-00-03 |
from US $1.70 |
||
| replacement | |||||
|
54
|
54
EW2-67354-B0-00 Shim (T=0.3)Ur |
EW2-67354-B0-00 |
US $0.88 |
||
|
54
|
54
EW2-67354-00-05 ShimUr |
EW2-67354-00-05 |
US $1.56 |
||
| replacement | |||||
|
54
|
54
EW2-67354-C0-00 Shim (T=0.5)Ur |
EW2-67354-C0-00 |
from US $1.56 |
||
|
54
|
54
EW2-67354-00-10 ShimUr |
EW2-67354-00-10 |
US $1.56 |
||
| replacement | |||||
|
54
|
54
EW2-67354-D0-00 Shim (T=1.0)Ｔ＝１．０ Ur |
EW2-67354-D0-00 |
from US $1.56 |
||
|
55
|
55
EU0-62693-02-00 Pipe |
EU0-62693-02-00 |
from US $30.32 |
||
|
56
|
56
6R8-62695-00-00 Cap, Spout |
6R8-62695-00-00 |
from US $4.53 |
||
|
57
|
57
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
58
|
58
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
59
|
59
95780-05300-00 Nut, M5 X 0.8 Nylon Lock |
95780-05300-00 |
from US $1.84 |
||
|
60
|
60
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
|
61
|
61
GDO-67249-00-05
Shim (T=1.5)
Ur |
GDO-67249-00-05 |
— | ||
|
61
|
61
GDO-67249-00-10
Shim (T=1.0)
Ur |
GDO-67249-00-10 |
— | ||
|
62
|
62
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
63
|
63
90179-10925-00 Nut |
90179-10925-00 |
from US $7.37 |
||
|
64
|
64
EW2-62723-00-00 Seal |
EW2-62723-00-00 |
US $0.74 |
||
|
65
|
65
EW2-62723-30-00 Seal |
EW2-62723-30-00 |
from US $2.27 |
||
|
66
|
66
90601-11583-00 Clamp, Ear 15 |
90601-11583-00 |
from US $9.63 |
||
