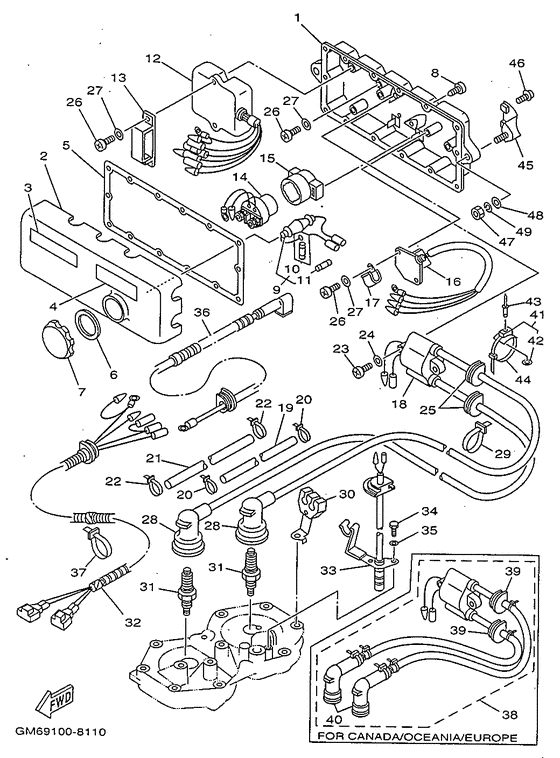

Electrical 1 Diagram Yamaha SJ700
- Model code
- GM6B
- Engine Capacity
- 700
- Year
- 1998
- Sales region
- Europe (General) (999)
- Colour
- Pure White (PURW; 0240)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6M6-8552A-01-98 Housing |
6M6-8552A-01-98 |
from US $116.47 |
||
| replacement | |||||
|
01
|
01
6M6-8552A-01-8P Housing |
6M6-8552A-01-8P |
from US $116.47 |
||
|
02
|
02
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
03
|
03
63N-83623-00-00 Mark 3Ur japan |
63N-83623-00-00 |
US $6.25 |
||
|
03
|
03
6R7-83623-40-00 Mark 3Ur english |
6R7-83623-40-00 |
from US $7.23 |
||
|
04
|
04
6R7-83623-50-00
Mark 3
French |
6R7-83623-50-00 |
— | ||
|
05
|
05
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
06
|
06
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
07
|
07
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
08
|
08
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
08
|
08
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
09
|
09
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
09
|
09
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
10
|
10
6K8-82159-00-00 Fuse Spear (10A) |
6K8-82159-00-00 |
from US $8.37 |
||
| replacement | |||||
|
10
|
10
6K8-82159-01-00 |
6K8-82159-01-00 |
US $10.58 |
||
|
11
|
11
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
11
|
11
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
12
|
12
62T-85540-01-00 C.d.i. Unit Assy |
62T-85540-01-00 |
US $586.08 |
||
| replacement | |||||
|
12
|
12
62T-85540-04-00 CDI UNIT ASSY |
62T-85540-04-00 |
from US $586.08 |
||
|
13
|
13
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
14
|
14
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
15
|
15
6M6-81952-01-00
Holder, Relay
|
6M6-81952-01-00 |
— | ||
|
16
|
16
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
17
|
17
90465-08M07-00 Clamp |
90465-08M07-00 |
US $3.40 |
||
| replacement | |||||
|
17
|
17
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
18
|
18
62E-85570-00-00 Ignition Coil AssyUr usa, guam,japan |
62E-85570-00-00 |
from US $237.64 |
||
|
19
|
19
6R7-82351-00-00 Tube, CordUr usa, guam,japan |
6R7-82351-00-00 |
from US $12.60 |
||
| replacement | |||||
|
19
|
19
63M-82351-00-00 Tube, CordUr usa, guam,japan |
63M-82351-00-00 |
from US $14.17 |
||
|
20
|
20
904-6511M-10-00
Clamp
Ur usa, guam,japan |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 BandUr usa, guam,japan |
80L-26397-00-00 |
from US $1.40 |
||
|
20
|
20
904-65100-98-00 ClampUr usa, guam,japan |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
6R7-82352-00-00 Tube, CordUr usa, guam,japan |
6R7-82352-00-00 |
from US $12.60 |
||
| replacement | |||||
|
21
|
21
63M-82351-00-00 Tube, CordUr usa, guam,japan |
63M-82351-00-00 |
from US $14.17 |
||
|
22
|
22
904-6511M-10-00
Clamp
Ur usa, guam,japan |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
22
|
22
80L-26397-00-00 BandUr usa, guam,japan |
80L-26397-00-00 |
from US $1.40 |
||
|
22
|
22
904-65100-98-00 ClampUr usa, guam,japan |
904-65100-98-00 |
from US $1.39 |
||
|
23
|
23
978-80060-30-00
Screw, Pan Head
|
978-80060-30-00 |
— | ||
| replacement | |||||
|
23
|
23
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
90480-06M43-00 GrommetUr usa, guam,japan |
90480-06M43-00 |
from US $3.83 |
||
|
26
|
26
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
26
|
26
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
28
|
28
6R7-82370-00-00 Plug Cap AssemblyUr usa, guam,japan |
6R7-82370-00-00 |
from US $50.34 |
||
| replacements | |||||
|
28
|
28
6K8-82370-00-00 Plug Cap AssemblyUr usa, guam,japan |
6K8-82370-00-00 |
from US $50.34 |
||
|
28
|
28
63M-82370-00-00 Plug Cap AssemblyUr usa, guam,japan |
63M-82370-00-00 |
from US $102.79 |
||
|
29
|
29
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
29
|
29
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
29
|
29
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
30
|
30
6R7-82361-01-00 Clamp, Cord |
6R7-82361-01-00 |
from US $12.61 |
||
| replacement | |||||
|
30
|
30
6R7-82361-02-00 |
6R7-82361-02-00 |
US $30.35 |
||
|
31
|
31
94702-00040-00 Plug, Spark (Ngk B7Hs)Ur usa, guam |
94702-00040-00 |
US $5.40 |
||
| replacements | |||||
|
31
|
31
B7H-S0000-00-00 Ngk Spark Plug B7HsUr usa, guam |
B7H-S0000-00-00 |
US $26.28 |
||
|
31
|
31
947-01001-10-00 Plug, Spark (Br7Hs)Ur usa, guam |
947-01001-10-00 |
US $7.08 |
||
|
31
|
31
94702-00272-00 Plug, Spark (Ngk Br7Hs)Ur canada, oceania, europe |
94702-00272-00 |
US $7.76 |
||
| replacement | |||||
|
31
|
31
947-01001-10-00 Plug, Spark (Br7Hs)Ur canada, oceania, europe |
947-01001-10-00 |
US $7.08 |
||
|
31
|
31
94709-00040-00
Plug, Spark (Ngk B7Hs)
Ur japan |
94709-00040-00 |
— | ||
|
32
|
32
6R7-82553-01-00 Extension, Wire Lead |
6R7-82553-01-00 |
from US $91.02 |
||
|
33
|
33
6R7-82560-00-00
Thermo Switch Assy
|
6R7-82560-00-00 |
— | ||
|
34
|
34
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
34
|
34
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
35
|
35
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
36
|
36
62E-82117-20-00 Wire, Lead |
62E-82117-20-00 |
from US $46.80 |
||
|
37
|
37
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
37
|
37
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
38
|
38
62E-85570-11-00 Ignition Coil AssyUr canada, oceania, europe |
62E-85570-11-00 |
from US $237.64 |
||
|
39
|
39
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
40
|
40
62E-82371-11-00 Cap, Plug |
62E-82371-11-00 |
from US $22.81 |
||
|
41
|
41
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
42
|
42
90201-05925-00
Washer, Plain
|
90201-05925-00 |
— | ||
|
43
|
43
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
43
|
43
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
44
|
44
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
44
|
44
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
45
|
45
EW2-68156-00-00 Bracket |
EW2-68156-00-00 |
from US $17.57 |
||
|
46
|
46
90119-06908-00 Bolt With Washer (Eu0) |
90119-06908-00 |
from US $2.27 |
||
|
47
|
47
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
47
|
47
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
47
|
47
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
48
|
48
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
49
|
49
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
