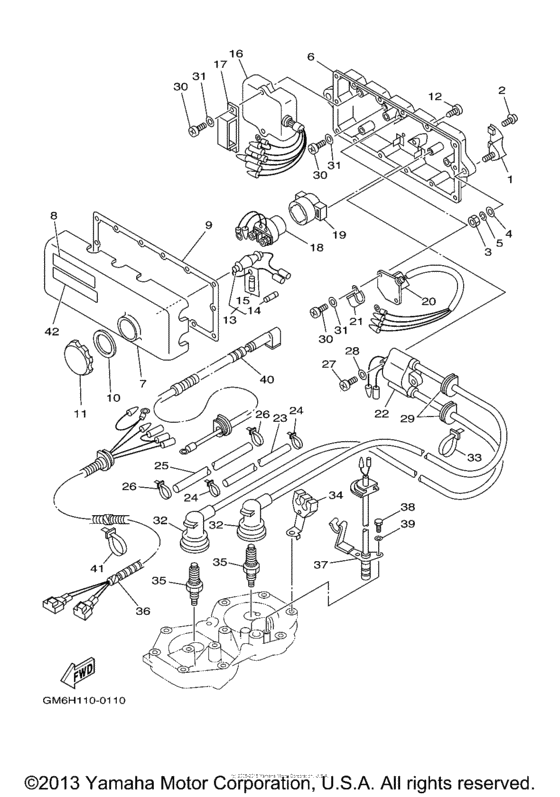

Electrical (1) Diagram Yamaha SJ700 Super JET
- Engine Capacity
- 700
- Year
- 2000
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EW2-68156-00-00 Bracket |
EW2-68156-00-00 |
from US $17.57 |
||
|
2
|
2
90119-06908-00 Bolt With Washer (Eu0) |
90119-06908-00 |
from US $2.27 |
||
|
3
|
3
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
3
|
3
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
3
|
3
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
4
|
4
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
6
|
6
6M6-8552A-01-8P Housing |
6M6-8552A-01-8P |
from US $116.47 |
||
|
7
|
7
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
8
|
8
6R7-83623-40-00 Mark 3USA |
6R7-83623-40-00 |
from US $7.23 |
||
|
9
|
9
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
10
|
10
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
11
|
11
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
12
|
12
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
12
|
12
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
13
|
13
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
13
|
13
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
14
|
14
6G1-82151-00-00 Fuse (10A)10A USA |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
14
|
14
1E6-82151-00-00 Fuse (10A)10A USA |
1E6-82151-00-00 |
from US $2.02 |
||
|
15
|
15
6K8-82159-00-00 Fuse Spear (10A)10A USA |
6K8-82159-00-00 |
from US $8.37 |
||
| replacement | |||||
|
15
|
15
6K8-82159-01-00 10A USA |
6K8-82159-01-00 |
US $10.58 |
||
|
16
|
16
62T-85540-01-00 C.d.i. Unit Assy |
62T-85540-01-00 |
US $586.08 |
||
| replacement | |||||
|
16
|
16
62T-85540-04-00 CDI UNIT ASSY |
62T-85540-04-00 |
from US $586.08 |
||
|
17
|
17
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
18
|
18
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
19
|
19
6M6-81952-01-00
Holder, Relay
|
6M6-81952-01-00 |
— | ||
|
20
|
20
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
21
|
21
90465-06M86-00 Clamp |
90465-06M86-00 |
from US $4.82 |
||
|
22
|
22
62E-85570-00-00 Ignition Coil Assy |
62E-85570-00-00 |
from US $237.64 |
||
|
23
|
23
6R7-82351-00-00 Tube, Cord |
6R7-82351-00-00 |
from US $12.60 |
||
| replacement | |||||
|
23
|
23
63M-82351-00-00 Tube, Cord |
63M-82351-00-00 |
from US $14.17 |
||
|
24
|
24
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
24
|
24
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
24
|
24
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
25
|
25
6R7-82352-00-00 Tube, CordUSA |
6R7-82352-00-00 |
from US $12.60 |
||
| replacement | |||||
|
25
|
25
63M-82351-00-00 Tube, CordUSA |
63M-82351-00-00 |
from US $14.17 |
||
|
26
|
26
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
26
|
26
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
26
|
26
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
27
|
27
978-80060-30-00
Screw, Pan Head
|
978-80060-30-00 |
— | ||
| replacement | |||||
|
27
|
27
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
29
|
29
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
30
|
30
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
30
|
30
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
32
|
32
6R7-82370-00-00 Plug Cap Assembly |
6R7-82370-00-00 |
from US $50.34 |
||
| replacements | |||||
|
32
|
32
6K8-82370-00-00 Plug Cap Assembly |
6K8-82370-00-00 |
from US $50.34 |
||
|
32
|
32
63M-82370-00-00 Plug Cap Assembly |
63M-82370-00-00 |
from US $102.79 |
||
|
33
|
33
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
33
|
33
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
33
|
33
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
34
|
34
6R7-82361-01-00 Clamp, Cord |
6R7-82361-01-00 |
from US $12.61 |
||
| replacement | |||||
|
34
|
34
6R7-82361-02-00 |
6R7-82361-02-00 |
US $30.35 |
||
|
35
|
35
NGK-B7HS0-00-00
Ngk Spark Plug B7Hs
B7HS USA |
NGK-B7HS0-00-00 |
— | ||
| replacement | |||||
|
35
|
35
B7H-S0000-00-00 Ngk Spark Plug B7HsB7HS USA |
B7H-S0000-00-00 |
US $26.28 |
||
|
36
|
36
6R7-82553-01-00 Extension, Wire Lead |
6R7-82553-01-00 |
from US $91.02 |
||
|
37
|
37
6R7-82560-00-00
Thermo Switch Assy
|
6R7-82560-00-00 |
— | ||
|
38
|
38
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
38
|
38
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
62E-82117-20-00 Wire, Lead |
62E-82117-20-00 |
from US $46.80 |
||
|
41
|
41
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
41
|
41
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
42
|
42
64V-2179X-01-00
Plate, Epa
|
64V-2179X-01-00 |
— | ||
