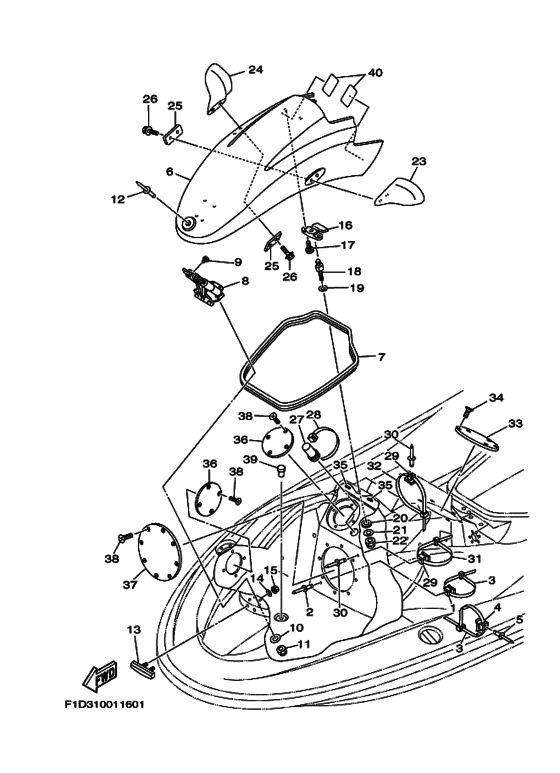

Engine hatch 2 Diagram Yamaha SV(SUV)1200
- Model code
- F1D4
- Engine Capacity
- 1200
- Year
- 2001
- Sales region
- Europe (010)
- Colour
- White Coat 3 (WC3; GA3T)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
2
|
2
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
2
|
2
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
3
|
3
90601-20027-00
Band
|
90601-20027-00 |
— | ||
|
4
|
4
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
5
|
5
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
5
|
5
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
6
|
6
F0D-U517B-00-P6
Lid, Engine Room
DRMF, YMUS |
F0D-U517B-00-P6 |
— | ||
| replacement | |||||
|
6
|
6
F1D-6517B-19-P6
Lid, Engine Room
DRMF, YMUS |
F1D-6517B-19-P6 |
— | ||
|
7
|
7
GU5-62663-00-00 Packing 1 |
GU5-62663-00-00 |
US $118.37 |
||
|
8
|
8
F0D-6515A-03-00 Hinge, Assy |
F0D-6515A-03-00 |
from US $255.29 |
||
| replacement | |||||
|
8
|
8
F0D-6515A-04-00 Hinge Assy |
F0D-6515A-04-00 |
US $485.18 |
||
|
9
|
9
90119-06966-00 Bolt, With WasherYMUS |
90119-06966-00 |
US $3.01 |
||
|
10
|
10
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
10
|
10
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
11
|
11
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
12
|
12
90267-48932-00 Rivet, Blind (Ad610Abs/llm10P) |
90267-48932-00 |
from US $1.28 |
||
|
13
|
13
F0D-6518E-01-00 Plate, Hinge Lid |
F0D-6518E-01-00 |
US $42.98 |
||
|
14
|
14
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
15
|
15
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
16
|
16
F0D-6517C-04-00 Lock, Lid |
F0D-6517C-04-00 |
US $57.66 |
||
|
17
|
17
90149-06906-00 Screw, Bind |
90149-06906-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
98980-06014-00 Screw, Bind |
98980-06014-00 |
from US $2.13 |
||
|
18
|
18
GU5-63774-00-00 Pin |
GU5-63774-00-00 |
US $66.80 |
||
|
19
|
19
90201-08929-00 Washer, Plate |
90201-08929-00 |
from US $5.81 |
||
|
20
|
20
F0D-6515E-00-00 Damper 2 |
F0D-6515E-00-00 |
from US $3.54 |
||
|
21
|
21
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
22
|
22
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
23
|
23
F0D-U596B-00-00 Mirror LhLH; YB, YMUS |
F0D-U596B-00-00 |
from US $62.50 |
||
| replacement | |||||
|
23
|
23
F0V-U596B-04-00 Mirror LhLH; YB, YMUS |
F0V-U596B-04-00 |
US $52.63 |
||
|
24
|
24
F0D-U596C-00-00 Mirror RhRH; YB, YMUS |
F0D-U596C-00-00 |
from US $63.63 |
||
| replacement | |||||
|
24
|
24
F0V-U596C-04-00 Mirror RhRH; YB, YMUS |
F0V-U596C-04-00 |
from US $76.93 |
||
|
25
|
25
F0D-U5646-00-00 PlateYMUS |
F0D-U5646-00-00 |
US $13.34 |
||
|
26
|
26
90119-08957-00 Bolt, With Washer |
90119-08957-00 |
from US $3.40 |
||
| replacement | |||||
|
26
|
26
90119-08038-00 Bolt, With Washer |
90119-08038-00 |
from US $2.36 |
||
|
27
|
27
GU2-6822E-01-00 Grommet |
GU2-6822E-01-00 |
from US $16.43 |
||
|
28
|
28
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
28
|
28
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
29
|
29
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
30
|
30
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
30
|
30
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
31
|
31
90601-20009-00 Band (Eu0)TAITON |
90601-20009-00 |
from US $2.27 |
||
|
32
|
32
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
32
|
32
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
33
|
33
GP1-U7228-00-00 Cover, Inspection 2YMUS |
GP1-U7228-00-00 |
US $25.06 |
||
|
34
|
34
EU0-67869-00-00 Screw, Flat Head Tapping |
EU0-67869-00-00 |
from US $2.13 |
||
|
35
|
35
F1D-6143G-00-00
Spacer
|
F1D-6143G-00-00 |
— | ||
|
36
|
36
GP1-U7227-00-00 Cover, Inspection 1YMUS |
GP1-U7227-00-00 |
from US $11.88 |
||
|
37
|
37
GU5-U7861-00-00 Cover InspectionYMUS |
GU5-U7861-00-00 |
US $27.31 |
||
|
38
|
38
EU0-67869-00-00 Screw, Flat Head Tapping |
EU0-67869-00-00 |
from US $2.13 |
||
|
39
|
39
90605-50201-00 Plug(Eu0) |
90605-50201-00 |
from US $3.54 |
||
|
40
|
40
F0D-65116-00-00 Trim, Hatch 2 |
F0D-65116-00-00 |
US $16.31 |
||
