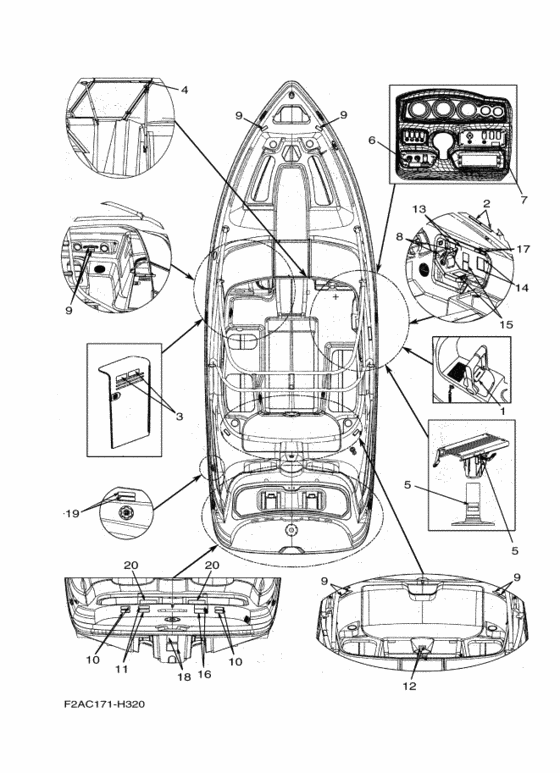

Important labels Diagram Yamaha SXT1100 SX230 HO (AR230 HO)
- Model code
- F2AJ
- Engine Capacity
- 2x1100
- Year
- 2009
- Sales region
- Europe (020)
- Colour
- Dark Purplish Blue Coat 8 (DPBC8; GA8N)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1C-U419G-11-00 Label, F-R Lever |
F1C-U419G-11-00 |
from US $19.13 |
||
|
2
|
2
F1C-U415M-00-00 Label, TowingEN |
F1C-U415M-00-00 |
US $15.44 |
||
|
2
|
2
F1C-U415M-10-00 Label, TowingFR |
F1C-U415M-10-00 |
US $14.58 |
||
|
3
|
3
F2A-U415P-00-00 Label, Warning Co 1CO 1; EN |
F2A-U415P-00-00 |
from US $4.86 |
||
|
3
|
3
F2A-U415P-10-00 Label, Warning Co 1CO 1; FR |
F2A-U415P-10-00 |
from US $4.54 |
||
|
4
|
4
F1C-U411A-00-00
Label, Caution
|
F1C-U411A-00-00 |
— | ||
|
5
|
5
F1C-U411D-00-00 Label, Caution A |
F1C-U411D-00-00 |
from US $20.54 |
||
|
6
|
6
F1C-U416F-00-00 Label, Warning 4 |
F1C-U416F-00-00 |
from US $24.25 |
||
|
7
|
7
F1C-U419F-00-00 Label,5 |
F1C-U419F-00-00 |
from US $24.25 |
||
|
8
|
8
F2G-U415P-00-00 Label, Warning Co 1CO 1; EN |
F2G-U415P-00-00 |
from US $7.04 |
||
|
8
|
8
F2G-U415P-10-00 Label, Warning Co 1CO 1; FR |
F2G-U415P-10-00 |
from US $7.04 |
||
|
9
|
9
GP1-U418C-20-00 Label, CautionEN |
GP1-U418C-20-00 |
from US $4.27 |
||
|
9
|
9
GP1-U418C-30-00 Label, CautionFR |
GP1-U418C-30-00 |
from US $9.18 |
||
|
10
|
10
F1C-U418C-00-00 Label, CautionEN |
F1C-U418C-00-00 |
from US $10.80 |
||
|
10
|
10
F1C-U418C-10-00 Label, CautionFR |
F1C-U418C-10-00 |
from US $14.13 |
||
|
11
|
11
F2G-U415R-00-00 Label, Warning Co 2EN |
F2G-U415R-00-00 |
from US $7.04 |
||
|
11
|
11
F2G-U415R-10-00 Label, WarningFR |
F2G-U415R-10-00 |
from US $7.04 |
||
|
12
|
12
GP1-U419D-10-00 Label 3EN |
GP1-U419D-10-00 |
from US $8.05 |
||
|
12
|
12
GP1-U419D-20-00 Label 3FR |
GP1-U419D-20-00 |
from US $10.13 |
||
|
13
|
13
F2G-U41D5-00-00 Label, Warning Shift LeverEN |
F2G-U41D5-00-00 |
from US $8.36 |
||
|
13
|
13
F2G-U41D5-10-00 Label, Warning Shift LeverFR |
F2G-U41D5-10-00 |
from US $8.36 |
||
|
14
|
14
F0R-U416C-21-00 Label, Warning 1EN |
F0R-U416C-21-00 |
from US $9.81 |
||
|
14
|
14
F0R-U416C-40-00 Label, Warning 1FR |
F0R-U416C-40-00 |
from US $16.18 |
||
|
15
|
15
F1C-U416C-10-00 Label, Warning 1EN |
F1C-U416C-10-00 |
from US $18.20 |
||
|
15
|
15
F1C-U416C-20-00 Label, Warning 1FR |
F1C-U416C-20-00 |
from US $18.20 |
||
|
16
|
16
F0R-U416G-11-00 Label, WarningEN |
F0R-U416G-11-00 |
from US $18.84 |
||
|
16
|
16
F0R-U416G-20-00 Label, WarningFR |
F0R-U416G-20-00 |
from US $9.95 |
||
|
17
|
17
F1C-U419B-00-00 Label 1EN |
F1C-U419B-00-00 |
US $6.52 |
||
|
17
|
17
F1C-U419B-10-00 Label 1FR |
F1C-U419B-10-00 |
US $211,749.98 |
||
|
18
|
18
F2G-U419C-00-00 Label 2EN |
F2G-U419C-00-00 |
from US $8.81 |
||
|
18
|
18
F2G-U419C-10-00 Label 2FR |
F2G-U419C-10-00 |
from US $3.58 |
||
|
19
|
19
F1C-U416B-00-00 Label, WarningEN |
F1C-U416B-00-00 |
from US $4.03 |
||
|
19
|
19
F1C-U416B-10-00 Label, WarningFR |
F1C-U416B-10-00 |
from US $14.15 |
||
|
20
|
20
F2G-U411D-00-00 Label, Caution AEN |
F2G-U411D-00-00 |
from US $21.22 |
||
|
20
|
20
F2G-U411D-10-00 Label, Caution AFR |
F2G-U411D-10-00 |
from US $11.59 |
