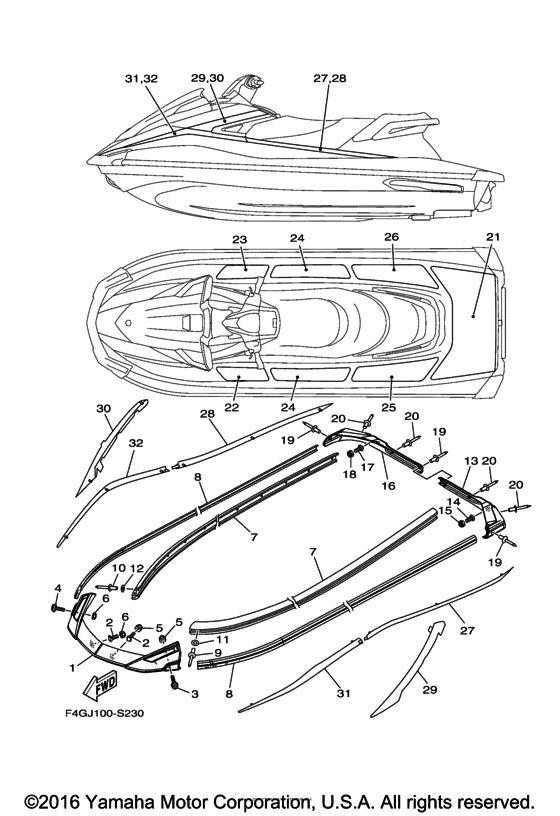

Gunwale & Mat Diagram Yamaha VX1050
- Year
- 2017
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2X-U2511-10-00 Gunwale, Bow |
F2X-U2511-10-00 |
from US $64.78 |
||
|
2
|
2
F1W-U491K-00-00 Bolt, Special |
F1W-U491K-00-00 |
from US $3.42 |
||
| replacement | |||||
|
2
|
2
F1W-U491K-01-00 Bolt, Special |
F1W-U491K-01-00 |
from US $4.04 |
||
|
3
|
3
90110-06191-00 Bolt, Hexagon Socket Head |
90110-06191-00 |
from US $2.36 |
||
|
4
|
4
90110-06191-00 Bolt, Hexagon Socket Head |
90110-06191-00 |
from US $2.36 |
||
|
5
|
5
F2N-U142L-00-00 Nut, Lock |
F2N-U142L-00-00 |
from US $2.13 |
||
|
6
|
6
F2N-U142L-00-00 Nut, Lock |
F2N-U142L-00-00 |
from US $2.13 |
||
|
7
|
7
F2X-U2512-10-00 Gunwale, Side |
F2X-U2512-10-00 |
from US $56.68 |
||
|
8
|
8
F2X-U2519-40-00 Inner,gunwale |
F2X-U2519-40-00 |
from US $30.35 |
||
|
9
|
9
902-67489-U8-00
Rivet, Blind
|
902-67489-U8-00 |
— | ||
| replacement | |||||
|
9
|
9
90267-48932-00 Rivet, Blind (Ad610Abs/llm10P) |
90267-48932-00 |
from US $1.28 |
||
|
10
|
10
902-67489-U8-00
Rivet, Blind
|
902-67489-U8-00 |
— | ||
| replacement | |||||
|
10
|
10
90267-48932-00 Rivet, Blind (Ad610Abs/llm10P) |
90267-48932-00 |
from US $1.28 |
||
|
11
|
11
9299R-05200-00 Washer |
9299R-05200-00 |
from US $1.56 |
||
|
12
|
12
9299R-05200-00 Washer |
9299R-05200-00 |
from US $1.56 |
||
|
13
|
13
F2X-U251D-10-00 Gunwale, Stern 1BLACK |
F2X-U251D-10-00 |
from US $24.28 |
||
|
14
|
14
F1W-U491K-00-00 Bolt, Special |
F1W-U491K-00-00 |
from US $3.42 |
||
| replacement | |||||
|
14
|
14
F1W-U491K-01-00 Bolt, Special |
F1W-U491K-01-00 |
from US $4.04 |
||
|
15
|
15
F2N-U142L-00-00 Nut, Lock |
F2N-U142L-00-00 |
from US $2.13 |
||
|
16
|
16
F2X-U251E-10-00 Gunwale, Stern 2BLACK |
F2X-U251E-10-00 |
from US $24.28 |
||
|
17
|
17
F1W-U491K-00-00 Bolt, Special |
F1W-U491K-00-00 |
from US $3.42 |
||
| replacement | |||||
|
17
|
17
F1W-U491K-01-00 Bolt, Special |
F1W-U491K-01-00 |
from US $4.04 |
||
|
18
|
18
F2N-U142L-00-00 Nut, Lock |
F2N-U142L-00-00 |
from US $2.13 |
||
|
19
|
19
902-67488-25-00 Rivet, Blind |
902-67488-25-00 |
from US $2.69 |
||
|
20
|
20
902-67488-25-00 Rivet, Blind |
902-67488-25-00 |
from US $2.69 |
||
|
21
|
21
F2X-U3581-10-00 Mat, UpperGRAY |
F2X-U3581-10-00 |
from US $344.02 |
||
|
22
|
22
F2X-U351H-10-00 Mat, Step 1GRAY |
F2X-U351H-10-00 |
from US $25.29 |
||
|
23
|
23
F2X-U351J-10-00 Mat, Step 2GRAY |
F2X-U351J-10-00 |
from US $25.29 |
||
|
24
|
24
F2X-U351K-10-00 Mat, Step 3GRAY |
F2X-U351K-10-00 |
from US $23.27 |
||
|
25
|
25
F2X-U351M-10-00 Mat, Step 4GRAY |
F2X-U351M-10-00 |
from US $32.38 |
||
|
26
|
26
F2X-U351N-10-00 Mat, Step 5GRAY |
F2X-U351N-10-00 |
from US $32.38 |
||
|
27
|
27
F2X-U89A8-00-00 Ornament, Stern Lh |
F2X-U89A8-00-00 |
from US $127.80 |
||
|
28
|
28
F2X-U89A9-00-00 Ornament, Stern Rh |
F2X-U89A9-00-00 |
from US $35.42 |
||
|
29
|
29
F2X-U89AA-00-00 Ornament, Middle Lh |
F2X-U89AA-00-00 |
from US $16.18 |
||
|
30
|
30
F2X-U89AB-00-00 Ornament, Middle Rh |
F2X-U89AB-00-00 |
from US $16.18 |
||
|
31
|
31
F2X-U89AC-00-00 Ornament, Bow Lh |
F2X-U89AC-00-00 |
from US $32.38 |
||
|
32
|
32
F2X-U89AD-00-00 Ornament, Bow Rh |
F2X-U89AD-00-00 |
from US $114.26 |
||
