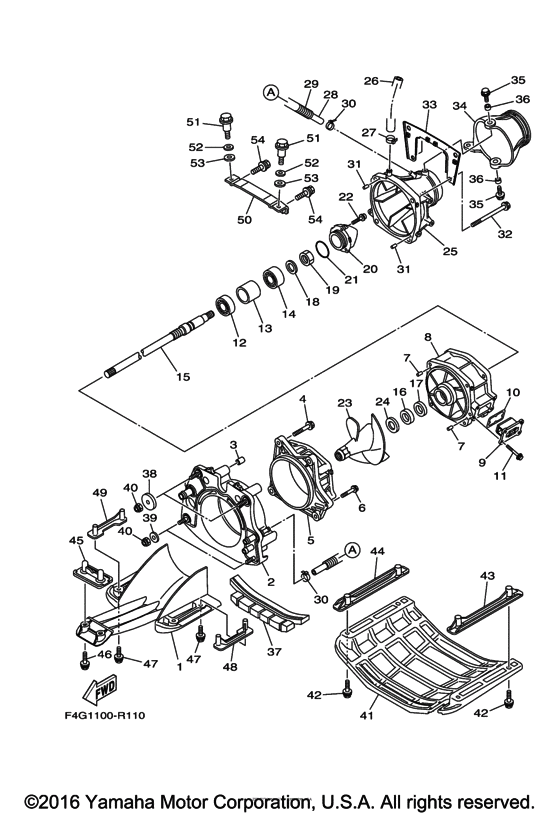

Jet Unit 1 Diagram Yamaha VX1050
- Year
- 2017
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6EX-R1333-00-00 Screen, Intake |
6EX-R1333-00-00 |
from US $99.20 |
||
|
2
|
2
6CS-G5831-10-00 PLATE, TRANSOM |
6CS-G5831-10-00 |
from US $196.40 |
||
|
3
|
3
995-90140-16-00 Pin, Dowel |
995-90140-16-00 |
from US $2.24 |
||
|
4
|
4
901-19108-10-00 Bolt,with Washer |
901-19108-10-00 |
from US $4.77 |
||
| replacement | |||||
|
4
|
4
901-19108-11-00 Bolt, With Washer |
901-19108-11-00 |
from US $2.65 |
||
|
5
|
5
66V-51312-01-00
Housing, Impeller
|
66V-51312-01-00 |
— | ||
| replacement | |||||
|
5
|
5
6CR-R1312-00-00 HOUSING, IMPELLER |
6CR-R1312-00-00 |
from US $186.28 |
||
|
6
|
6
901-19068-93-00 Bolt,with Washer |
901-19068-93-00 |
from US $7.37 |
||
| replacement | |||||
|
6
|
6
901-19068-94-00 Bolt, With Washer |
901-19068-94-00 |
from US $2.65 |
||
|
7
|
7
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
8
|
8
6B6-51315-01-00 Duct, Impeller |
6B6-51315-01-00 |
from US $441.94 |
||
| replacements | |||||
|
8
|
8
6B6-51315-01-94 Duct, Impeller |
6B6-51315-01-94 |
from US $441.94 |
||
|
8
|
8
999-99044-30-00 DUCT IMPELLER SET |
999-99044-30-00 |
from US $139.70 |
||
|
9
|
9
6EX-G6882-00-00 Filter |
6EX-G6882-00-00 |
from US $10.35 |
||
|
10
|
10
66V-42414-00-00 O-Ring |
66V-42414-00-00 |
from US $6.52 |
||
|
11
|
11
901-19068-89-00 Bolt,with Washer |
901-19068-89-00 |
from US $5.68 |
||
| replacement | |||||
|
11
|
11
901-19068-90-00 BOLT,WITH WASHER |
901-19068-90-00 |
from US $3.37 |
||
|
12
|
12
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
12
|
12
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $23.24 |
||
|
13
|
13
65V-45538-00-00 Spacer 1 |
65V-45538-00-00 |
from US $21.88 |
||
|
14
|
14
93306-304U1-00 Bearing |
93306-304U1-00 |
from US $23.48 |
||
| replacement | |||||
|
14
|
14
933-06304-XB-00 BEARING |
933-06304-XB-00 |
from US $24.28 |
||
|
15
|
15
68Y-45511-00-00 Shaft, Drive |
68Y-45511-00-00 |
from US $504.97 |
||
| replacement | |||||
|
15
|
15
68Y-G5511-00-00 SHAFT, DRIVE |
68Y-G5511-00-00 |
from US $465.12 |
||
|
16
|
16
93101-28M66-00 Oil Seal |
93101-28M66-00 |
from US $21.64 |
||
|
17
|
17
93101-28002-00 Oil Seal |
93101-28002-00 |
from US $12.48 |
||
|
18
|
18
929-9R166-00-00 Washer |
929-9R166-00-00 |
from US $4.72 |
||
|
19
|
19
9531P-16700-00 Nut |
9531P-16700-00 |
from US $9.35 |
||
| replacement | |||||
|
19
|
19
95317-16700-00 Nut(6F2) |
95317-16700-00 |
from US $4.72 |
||
|
20
|
20
6B6-51326-10-00 Cap |
6B6-51326-10-00 |
from US $31.17 |
||
|
21
|
21
93210-44003-00 O-Ring |
93210-44003-00 |
from US $2.55 |
||
|
22
|
22
90110-06822-00 Bolt, Hexagon Socket Head |
90110-06822-00 |
from US $2.43 |
||
| replacement | |||||
|
22
|
22
901-10068-23-00 Bolt, Hexagon Socket Head |
901-10068-23-00 |
from US $7.65 |
||
|
23
|
23
6EY-R1321-01-00 Impeller |
6EY-R1321-01-00 |
from US $238.93 |
||
|
24
|
24
66V-R1348-10-00 Spacer |
66V-R1348-10-00 |
from US $15.95 |
||
|
25
|
25
6EX-R1318-01-00 Nozzle |
6EX-R1318-01-00 |
from US $101.23 |
||
|
26
|
26
6CN-U72M2-00-00 Hose 1 |
6CN-U72M2-00-00 |
from US $13.32 |
||
|
27
|
27
90601-118UF-00 Band, Hose 18 |
90601-118UF-00 |
from US $5.81 |
||
|
28
|
28
904-45148-07-00 Hose (L355) |
904-45148-07-00 |
from US $3.69 |
||
|
29
|
29
90446-20MF5-00 Hose (L320) |
90446-20MF5-00 |
from US $4.72 |
||
|
30
|
30
90465-11829-00 Clamp |
90465-11829-00 |
from US $1.50 |
||
| replacements | |||||
|
30
|
30
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
30
|
30
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
31
|
31
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
32
|
32
901-19108-06-00 Bolt,with Washer |
901-19108-06-00 |
from US $10.96 |
||
| replacement | |||||
|
32
|
32
901-19108-07-00 Bolt, With Washer |
901-19108-07-00 |
from US $12.42 |
||
|
33
|
33
6EX-R1341-00-00 Bracket 1 |
6EX-R1341-00-00 |
from US $19.22 |
||
|
34
|
34
6EX-R1313-00-00 Nozzle, Deflector |
6EX-R1313-00-00 |
from US $29.34 |
||
|
35
|
35
90119-08840-00 Bolt, With Washer |
90119-08840-00 |
from US $4.53 |
||
| replacement | |||||
|
35
|
35
901-19088-41-00 Bolt, With Washer |
901-19088-41-00 |
from US $3.33 |
||
|
36
|
36
90387-08M06-00 Collar |
90387-08M06-00 |
from US $5.97 |
||
|
37
|
37
F2X-U72C0-00-00 Spacer |
F2X-U72C0-00-00 |
from US $21.24 |
||
|
38
|
38
F1S-U725E-01-00 Washer |
F1S-U725E-01-00 |
from US $11.12 |
||
|
39
|
39
90201-10801-00 Washer, Plate |
90201-10801-00 |
from US $6.23 |
||
|
40
|
40
957-2R103-00-00 Nut, Nylon |
957-2R103-00-00 |
from US $4.25 |
||
|
41
|
41
F2X-U273B-00-00 Plate 2 |
F2X-U273B-00-00 |
from US $218.68 |
||
|
42
|
42
90119-08823-00 Bolt, With Washer |
90119-08823-00 |
from US $8.02 |
||
| replacement | |||||
|
42
|
42
901-19088-29-00 Bolt, With Washer |
901-19088-29-00 |
from US $8.50 |
||
|
43
|
43
F2X-U8572-00-00 Bracket 2 |
F2X-U8572-00-00 |
from US $18.20 |
||
|
44
|
44
F2X-U8572-00-00 Bracket 2 |
F2X-U8572-00-00 |
from US $18.20 |
||
|
45
|
45
F2S-U8577-00-00 Bracket, 3 |
F2S-U8577-00-00 |
from US $21.24 |
||
|
46
|
46
90119-08823-00 Bolt, With Washer |
90119-08823-00 |
from US $8.02 |
||
| replacement | |||||
|
46
|
46
901-19088-29-00 Bolt, With Washer |
901-19088-29-00 |
from US $8.50 |
||
|
47
|
47
90119-08823-00 Bolt, With Washer |
90119-08823-00 |
from US $8.02 |
||
| replacement | |||||
|
47
|
47
901-19088-29-00 Bolt, With Washer |
901-19088-29-00 |
from US $8.50 |
||
|
48
|
48
F2X-U8571-00-00 Bracket 1 |
F2X-U8571-00-00 |
from US $18.20 |
||
|
49
|
49
F2X-U8571-00-00 Bracket 1 |
F2X-U8571-00-00 |
from US $18.20 |
||
|
50
|
50
F2C-U7557-01-00 Bracket |
F2C-U7557-01-00 |
from US $38.45 |
||
|
51
|
51
90109-08041-00 Bolt |
90109-08041-00 |
from US $4.88 |
||
| replacement | |||||
|
51
|
51
901-09080-43-00 Bolt |
901-09080-43-00 |
from US $8.50 |
||
|
52
|
52
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
53
|
53
90430-12002-00 Gasket |
90430-12002-00 |
from US $2.64 |
||
|
54
|
54
90119-089U7-00 Bolt, With Washer |
90119-089U7-00 |
from US $4.97 |
||
| replacements | |||||
|
54
|
54
901-19088-00-00 Bolt, With Washer |
901-19088-00-00 |
from US $10.66 |
||
|
54
|
54
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
