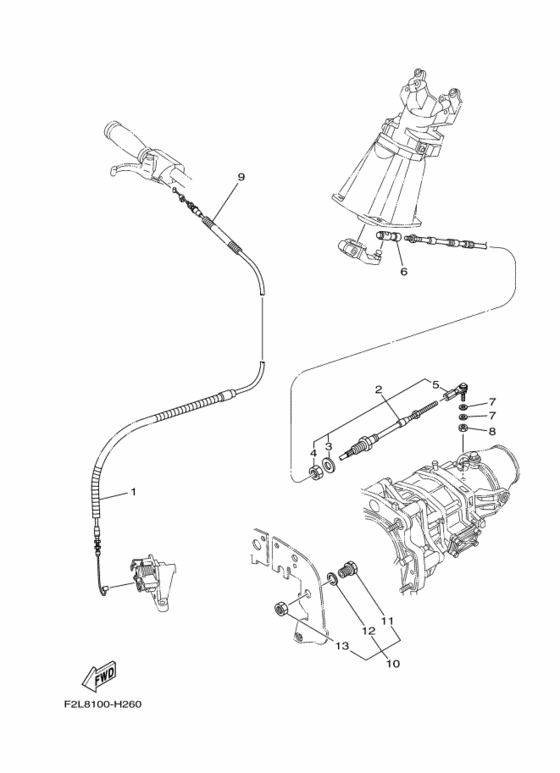

Control cable Diagram Yamaha VX1100
- Model code
- F2L8
- Engine Capacity
- 1100
- Year
- 2009
- Sales region
- Japan (030)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6D3-26311-02-00 Cable, Throttle 1ＣＡＢＬＥ， ＴＨＲＯＴＴＬＥ １; |
6D3-26311-02-00 |
from US $156.12 |
||
|
2
|
2
F1K-61481-01-00 Cable, SteeringＣＡＢＬＥ， ＳＴＥＥＲＩＮＧ; |
F1K-61481-01-00 |
US $526.50 |
||
| replacement | |||||
|
2
|
2
F1K-61481-03-00 CABLE, STEERINGＣＡＢＬＥ， ＳＴＥＥＲＩＮＧ; |
F1K-61481-03-00 |
from US $608.60 |
||
|
3
|
3
F1B-61438-00-00 Packing C．ＰＡＣＫＩＮＧ; |
F1B-61438-00-00 |
from US $2.69 |
||
|
4
|
4
F1B-6151S-00-00 Nut．ＮＵＴ; |
F1B-6151S-00-00 |
from US $8.08 |
||
|
5
|
5
F1B-61461-02-00 Stud, Joint Ball．ＳＴＵＤ， ＪＯＩＮＴ ＢＡＬＬ; |
F1B-61461-02-00 |
from US $88.28 |
||
|
6
|
6
GK5-U146F-00-00
Shaft,joint Ball
ＳＨＡＦＴ，ＪＯＩＮＴ ＢＡＬＬ; |
GK5-U146F-00-00 |
— | ||
| replacement | |||||
|
6
|
6
GK5-6146F-00-00 Shaft, Joint BallＳＨＡＦＴ，ＪＯＩＮＴ ＢＡＬＬ; |
GK5-6146F-00-00 |
from US $50.43 |
||
|
7
|
7
90201-06906-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-06906-00 |
from US $3.26 |
||
|
8
|
8
9538R-06700-00 NutＮＵＴ; |
9538R-06700-00 |
from US $1.52 |
||
|
9
|
9
90447-06803-00 TubeＴＵＢＥ; |
90447-06803-00 |
from US $3.54 |
||
|
10
|
10
F1K-67267-00-00 Connector, CableＣＯＮＮＥＣＴＯＲ， ＣＡＢＬＥ; |
F1K-67267-00-00 |
from US $51.40 |
||
|
11
|
11
F1K-61436-00-00 Body．ＢＯＤＹ; |
F1K-61436-00-00 |
from US $42.55 |
||
|
12
|
12
F1B-61438-00-00 Packing C．ＰＡＣＫＩＮＧ; |
F1B-61438-00-00 |
from US $2.69 |
||
|
13
|
13
F1B-6151S-00-00 Nut．ＮＵＴ; |
F1B-6151S-00-00 |
from US $8.08 |
||
