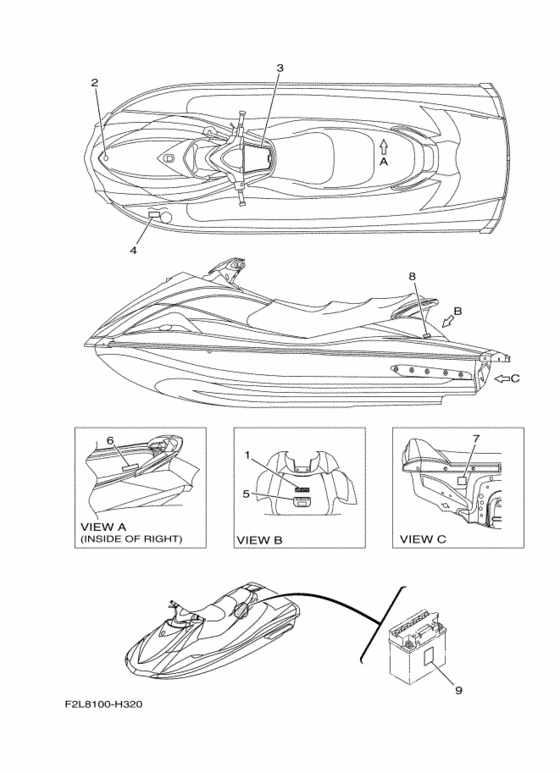

Important labels 3 (FOR JPN) Diagram Yamaha VX1100
- Model code
- F2L8
- Engine Capacity
- 1100
- Year
- 2009
- Sales region
- Japan (030)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1B-U411C-02-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
F1B-U411C-02-00 |
from US $26.30 |
||
|
2
|
2
F1K-U411H-00-00 Emblem, Tuning ForkＥＭＢＬＥＭ， ＴＵＮＩＮＧ ＦＯＲＫ; |
F1K-U411H-00-00 |
from US $26.30 |
||
|
3
|
3
F1K-641B1-22-00 Label, Warning Uniform 1ＬＡＢＥＬ， ＷＡＲＮＩＮＧ ＪＤＣ １; |
F1K-641B1-22-00 |
from US $68.39 |
||
|
4
|
4
F1B-6415B-20-00 Label, Warning(Fuel)ＬＡＢＥＬ， ＷＡＲＮＩＮＧ; ＦＵＥＬ |
F1B-6415B-20-00 |
from US $10.63 |
||
|
5
|
5
F1F-641E2-20-00 Label, Set 2ＬＡＢＥＬ， ＳＥＴ ２; |
F1F-641E2-20-00 |
from US $62.75 |
||
|
6
|
6
F0V-641DB-20-00 Label, Warning BatteryＬＡＢＥＬ， ＷＡＲＮＩＮＧ ＢＡＴＴＥＲＹ; |
F0V-641DB-20-00 |
from US $17.99 |
||
|
7
|
7
GA9-U418F-00-00 Label, CautionＬＡＢＥＬ， ＲＩＧＨＴＩＮＧ; |
GA9-U418F-00-00 |
US $129.49 |
||
| replacement | |||||
|
7
|
7
GH3-U411A-10-00 Label, CautionＬＡＢＥＬ， ＲＩＧＨＴＩＮＧ; |
GH3-U411A-10-00 |
US $105.99 |
||
|
8
|
8
F0P-U41G1-01-00
Label, Capacity
ＬＡＢＥＬ， ＣＡＰＡＣＩＴＹ; |
F0P-U41G1-01-00 |
— | ||
| replacements | |||||
|
8
|
8
F0P-U41G1-11-00
Label, Capacity
ＬＡＢＥＬ， ＣＡＰＡＣＩＴＹ; |
F0P-U41G1-11-00 |
— | ||
|
8
|
8
F0P-U41G1-00-00
Label, Capacity
ＬＡＢＥＬ， ＣＡＰＡＣＩＴＹ; |
F0P-U41G1-00-00 |
— | ||
|
9
|
9
F0V-U412G-10-00
Label, Battery
ＬＡＢＥＬ， ＢＡＴＴＥＲＹ; |
F0V-U412G-10-00 |
— | ||
