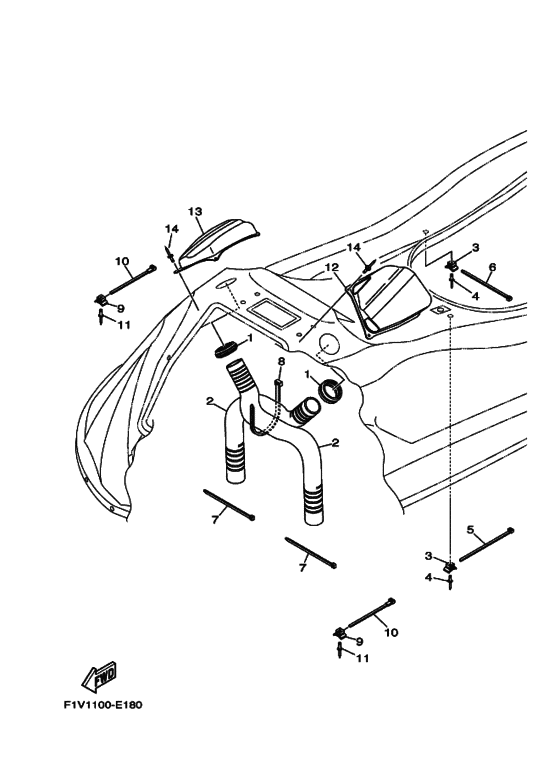

Ventilation Diagram Yamaha VX700
- Model code
- F1V1
- Engine Capacity
- 700
- Year
- 2006
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1K-U2127-00-00 Base, Air Intake |
F1K-U2127-00-00 |
from US $15.17 |
||
|
2
|
2
F1K-U213G-00-00 Hose, Ventilator 2 |
F1K-U213G-00-00 |
from US $50.01 |
||
| replacement | |||||
|
2
|
2
F2V-U213G-00-00 Hose, Ventilator 2 |
F2V-U213G-00-00 |
US $19.06 |
||
|
3
|
3
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
3
|
3
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
4
|
4
90267-489U6-00 Rivet, Blind |
90267-489U6-00 |
from US $2.69 |
||
| replacement | |||||
|
4
|
4
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
5
|
5
90464-32801-00 Clamp |
90464-32801-00 |
from US $3.12 |
||
|
6
|
6
90601-200U2-00 Band |
90601-200U2-00 |
from US $9.92 |
||
|
7
|
7
90464-99804-00 Clamp |
90464-99804-00 |
from US $8.93 |
||
|
8
|
8
90601-200U7-00 Band |
90601-200U7-00 |
from US $8.95 |
||
|
9
|
9
90600-917U4-00 Clamp Comp |
90600-917U4-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
10
|
10
90464-32801-00 Clamp |
90464-32801-00 |
from US $3.12 |
||
|
11
|
11
90267-489U6-00 Rivet, Blind |
90267-489U6-00 |
from US $2.69 |
||
| replacement | |||||
|
11
|
11
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
12
|
12
F1K-U2187-00-00 Box, Induction 1 |
F1K-U2187-00-00 |
from US $13.86 |
||
|
13
|
13
F1K-U2188-00-00 Box, Induction 2 |
F1K-U2188-00-00 |
from US $13.66 |
||
|
14
|
14
90267-48806-00 Rivet, Blind |
90267-48806-00 |
from US $1.84 |
||
