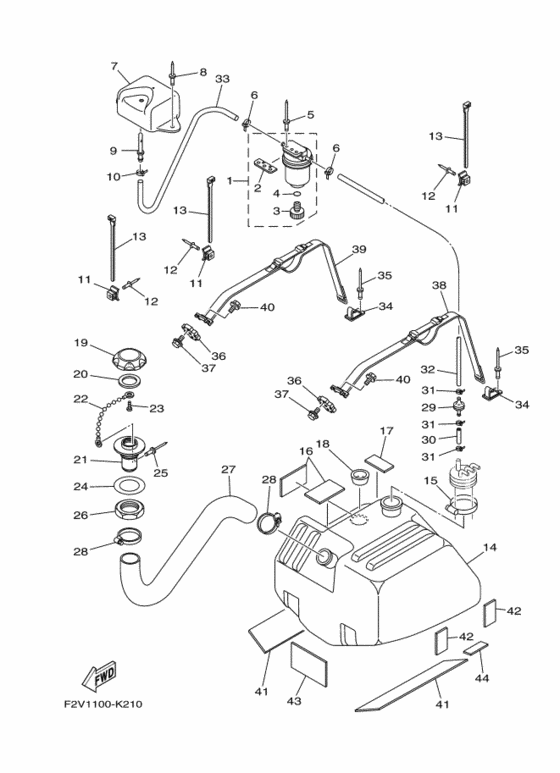

Fuel tank Diagram Yamaha VX700
- Model code
- F2V1
- Engine Capacity
- 700
- Year
- 2011
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2F-6214A-00-00 Filter, Vent Assy |
F2F-6214A-00-00 |
from US $57.20 |
||
|
2
|
2
EW2-62142-00-00 Plate, Filter |
EW2-62142-00-00 |
from US $26.38 |
||
|
3
|
3
70R-24543-00-00 Plug, Drain |
70R-24543-00-00 |
from US $5.40 |
||
|
4
|
4
70R-24489-00-00 O-Ring |
70R-24489-00-00 |
from US $2.36 |
||
|
5
|
5
90267-489U2-00 Rivet, Blind |
90267-489U2-00 |
from US $3.40 |
||
|
6
|
6
90465-11829-00 Clamp |
90465-11829-00 |
from US $1.50 |
||
| replacements | |||||
|
6
|
6
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
6
|
6
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
7
|
7
F1W-U2159-00-00 Socket, Ventilation |
F1W-U2159-00-00 |
from US $11.12 |
||
|
8
|
8
90267-489U6-00 Rivet, Blind |
90267-489U6-00 |
from US $2.69 |
||
| replacement | |||||
|
8
|
8
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
9
|
9
F1G-62149-00-00 Pipe, Ventilation |
F1G-62149-00-00 |
from US $8.64 |
||
|
10
|
10
90465-11829-00 Clamp |
90465-11829-00 |
from US $1.50 |
||
| replacements | |||||
|
10
|
10
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
10
|
10
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
11
|
11
F1W-U828M-00-00 Base, Clamp |
F1W-U828M-00-00 |
from US $3.54 |
||
|
12
|
12
90267-489U6-00 Rivet, Blind |
90267-489U6-00 |
from US $2.69 |
||
| replacement | |||||
|
12
|
12
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
13
|
13
90464-32801-00 Clamp |
90464-32801-00 |
from US $3.12 |
||
|
14
|
14
GU2-U7711-01-00 Tank, Fuel |
GU2-U7711-01-00 |
US $277.51 |
||
|
15
|
15
90601-162U5-00 Band, Hose 62 |
90601-162U5-00 |
from US $10.06 |
||
|
16
|
16
GJ1-U759B-00-00 Mat 1 |
GJ1-U759B-00-00 |
from US $5.24 |
||
|
17
|
17
GJ1-U759C-00-00 Mat 2 |
GJ1-U759C-00-00 |
from US $2.98 |
||
|
18
|
18
GH1-U759D-00-00 Mat 3 |
GH1-U759D-00-00 |
from US $11.60 |
||
|
19
|
19
F2N-U7831-10-00 Cap, Fuel FillerBLACK |
F2N-U7831-10-00 |
from US $29.34 |
||
|
20
|
20
GP7-U7832-01-00 Packing |
GP7-U7832-01-00 |
from US $14.31 |
||
|
21
|
21
GP7-U7833-11-00 SocketBLACK |
GP7-U7833-11-00 |
from US $15.17 |
||
|
22
|
22
GP7-U7835-00-00 Chain Ball |
GP7-U7835-00-00 |
from US $10.03 |
||
|
23
|
23
90169-049U1-00 Tapping Screw |
90169-049U1-00 |
from US $5.81 |
||
|
24
|
24
GP7-U7834-00-00 Packing Fuel Filler |
GP7-U7834-00-00 |
from US $15.02 |
||
|
25
|
25
90267-329UR-00 Rivet, Blind |
90267-329UR-00 |
from US $3.38 |
||
|
26
|
26
GP7-U783F-00-00 Nut, Fuel Filler |
GP7-U783F-00-00 |
from US $10.17 |
||
|
27
|
27
F2V-U7844-00-00 Hose |
F2V-U7844-00-00 |
US $31.99 |
||
|
28
|
28
90601-155U4-00 Band, Hose 55 |
90601-155U4-00 |
from US $9.59 |
||
|
29
|
29
EU0-67767-31-00 Check Valve |
EU0-67767-31-00 |
from US $24.94 |
||
|
30
|
30
GP7-U785H-00-00 Hose, Air Vent 3 |
GP7-U785H-00-00 |
from US $6.38 |
||
|
31
|
31
90465-11829-00 Clamp |
90465-11829-00 |
from US $1.50 |
||
| replacements | |||||
|
31
|
31
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
31
|
31
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
32
|
32
GJ3-U7856-10-00 Hose, Air Vent 3 |
GJ3-U7856-10-00 |
from US $7.16 |
||
|
33
|
33
F0D-U7856-10-00 Hose, Air Vent 3 |
F0D-U7856-10-00 |
from US $20.23 |
||
|
34
|
34
F1K-U5772-04-00 Hook A |
F1K-U5772-04-00 |
from US $14.35 |
||
|
35
|
35
90267-489U1-00 Rivet,blind |
90267-489U1-00 |
from US $4.77 |
||
| replacement | |||||
|
35
|
35
90267-48938-00 Rivet (Eu0) |
90267-48938-00 |
from US $3.72 |
||
|
36
|
36
F1X-U2873-00-00 Nut, Special |
F1X-U2873-00-00 |
from US $15.17 |
||
|
37
|
37
901-19068-30-00 Bolt, With Washer |
901-19068-30-00 |
from US $2.27 |
||
|
38
|
38
F2N-67743-00-00 Belt, Tank 1 |
F2N-67743-00-00 |
from US $56.43 |
||
|
39
|
39
F2C-67743-00-00 Belt, Tank 1 |
F2C-67743-00-00 |
from US $63.97 |
||
|
40
|
40
90119-089U7-00 Bolt, With Washer |
90119-089U7-00 |
from US $4.97 |
||
| replacements | |||||
|
40
|
40
901-19088-00-00 Bolt, With Washer |
901-19088-00-00 |
from US $10.66 |
||
|
40
|
40
90119-08903-00 Bolt With Washer (Eu0) |
90119-08903-00 |
from US $3.49 |
||
|
41
|
41
F1K-U759B-00-00 Mat 1 |
F1K-U759B-00-00 |
from US $15.99 |
||
|
42
|
42
F1W-U759C-01-00 Mat 2 |
F1W-U759C-01-00 |
from US $7.69 |
||
|
43
|
43
F1W-U8831-01-00 Bed,tank 1 |
F1W-U8831-01-00 |
from US $42.69 |
||
|
44
|
44
F1K-U759C-00-00 Mat 2 |
F1K-U759C-00-00 |
from US $6.48 |
||
