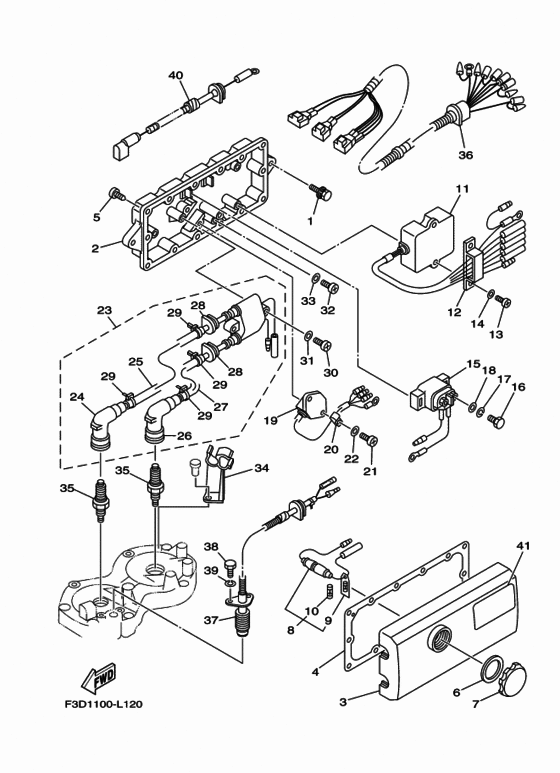

Electrical 1 Diagram Yamaha VX700
- Model code
- F3D1
- Engine Capacity
- 700
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90119-08965-00 Bolt, With Washer |
90119-08965-00 |
US $6.09 |
||
|
2
|
2
62L-8552A-00-8P Housing |
62L-8552A-00-8P |
from US $137.19 |
||
|
3
|
3
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
4
|
4
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
5
|
5
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
5
|
5
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
6
|
6
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
7
|
7
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
8
|
8
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
8
|
8
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
9
|
9
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
10
|
10
6K8-82159-00-00 Fuse Spear (10A) |
6K8-82159-00-00 |
from US $8.37 |
||
| replacement | |||||
|
10
|
10
6K8-82159-01-00 |
6K8-82159-01-00 |
US $10.58 |
||
|
11
|
11
62T-85540-01-00 C.d.i. Unit Assy |
62T-85540-01-00 |
US $586.08 |
||
| replacement | |||||
|
11
|
11
62T-85540-04-00 CDI UNIT ASSY |
62T-85540-04-00 |
from US $586.08 |
||
|
12
|
12
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
13
|
13
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
13
|
13
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
68N-81940-00-00 Starter Relay Assy |
68N-81940-00-00 |
from US $106.04 |
||
|
16
|
16
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
16
|
16
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
20
|
20
90465-06M86-00 Clamp |
90465-06M86-00 |
from US $4.82 |
||
|
21
|
21
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
21
|
21
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
62E-85570-11-00 Ignition Coil Assy |
62E-85570-11-00 |
from US $237.64 |
||
|
24
|
24
62E-82371-11-00 Cap, Plug |
62E-82371-11-00 |
from US $22.81 |
||
|
25
|
25
62E-82351-01-00 Tube, Cord |
62E-82351-01-00 |
from US $7.08 |
||
|
26
|
26
62E-82371-11-00 Cap, Plug |
62E-82371-11-00 |
from US $22.81 |
||
|
27
|
27
62E-82352-01-00 Tube, Cord 2 |
62E-82352-01-00 |
from US $8.08 |
||
|
28
|
28
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
29
|
29
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
29
|
29
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
29
|
29
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
30
|
30
978-80060-30-00
Screw, Pan Head
|
978-80060-30-00 |
— | ||
| replacement | |||||
|
30
|
30
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
32
|
32
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
32
|
32
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
34
|
34
62T-82361-00-00 Clamp, Cord |
62T-82361-00-00 |
from US $9.07 |
||
|
35
|
35
94702-00195-00 Br8Hs Ngk Screw Top |
94702-00195-00 |
from US $7.08 |
||
| replacements | |||||
|
35
|
35
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK) |
BR8-HS000-00-00 |
US $26.36 |
||
|
35
|
35
94701-00195-00 Plug,spark(Ngk Br8Hs) |
94701-00195-00 |
US $7.76 |
||
|
35
|
35
NGK-BR8HS-00-00 Br8Hs Ngk Screw Top |
NGK-BR8HS-00-00 |
US $23.40 |
||
|
36
|
36
6AE-82553-00-00 Extension, Wire Lead |
6AE-82553-00-00 |
from US $175.46 |
||
|
37
|
37
62T-82560-11-00 Thermo Switch Assy |
62T-82560-11-00 |
from US $126.83 |
||
|
38
|
38
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
38
|
38
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
6AE-82117-20-00 Wire, Lead |
6AE-82117-20-00 |
from US $57.47 |
||
|
41
|
41
6B6-83623-00-00 Mark 3 |
6B6-83623-00-00 |
from US $8.05 |
||
