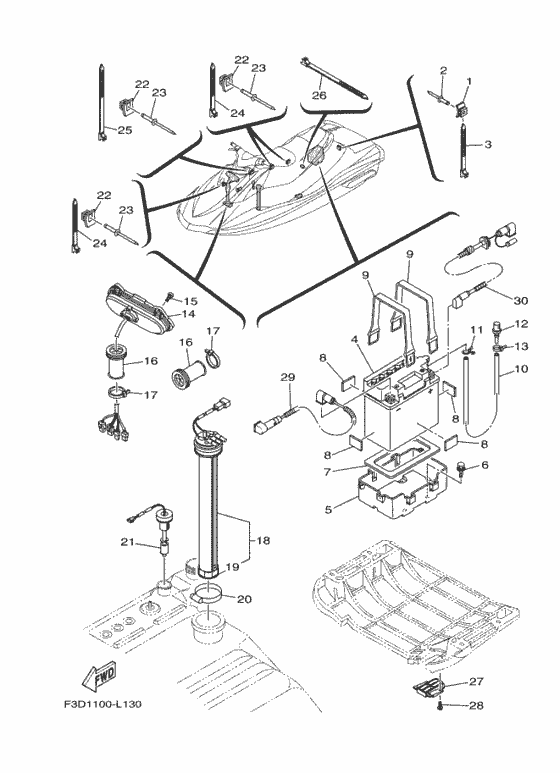

Electrical 2 Diagram Yamaha VX700
- Model code
- F3D1
- Engine Capacity
- 700
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1W-U828M-00-00 Base, Clamp |
F1W-U828M-00-00 |
from US $3.54 |
||
|
2
|
2
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
3
|
3
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
3
|
3
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
4
|
4
EU0-68217-A1-00
Battery (Yb16Cl-B)
|
EU0-68217-A1-00 |
— | ||
|
5
|
5
EW2-68211-00-00 Case, Battery |
EW2-68211-00-00 |
from US $31.77 |
||
|
6
|
6
90119-06920-00 Bolt, With Washer |
90119-06920-00 |
from US $2.27 |
||
|
7
|
7
EU0-68221-00-00 Pad, Battery |
EU0-68221-00-00 |
from US $21.54 |
||
| replacement | |||||
|
7
|
7
F1S-U8221-00-00 Pad, Battery |
F1S-U8221-00-00 |
from US $9 |
||
|
8
|
8
EU0-68221-30-00 Pad, Battery |
EU0-68221-30-00 |
from US $21.54 |
||
|
9
|
9
EU0-68218-04-00 Belt, Battery |
EU0-68218-04-00 |
from US $14.73 |
||
|
10
|
10
90699-50090-00 Hose |
90699-50090-00 |
US $17.57 |
||
| replacement | |||||
|
10
|
10
906-99501-35-00 Hose |
906-99501-35-00 |
US $17.57 |
||
|
11
|
11
90467-08M10-00 Clip |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
11
|
11
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
12
|
12
GJ3-6215F-00-00 Nipple |
GJ3-6215F-00-00 |
from US $7.23 |
||
|
13
|
13
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
13
|
13
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
14
|
14
F1V-6820A-01-00 Meter Assy |
F1V-6820A-01-00 |
from US $1,007.86 |
||
|
15
|
15
90111-05008-00 Bolt,hex. Socket Button |
90111-05008-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
901-11050-09-00 Bolt,hex. Socket Button |
901-11050-09-00 |
from US $1.42 |
||
|
16
|
16
GU2-6822E-01-00 Grommet |
GU2-6822E-01-00 |
from US $16.43 |
||
|
17
|
17
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
17
|
17
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
18
|
18
F0V-U824B-04-00 Sender, Fuel |
F0V-U824B-04-00 |
from US $793.32 |
||
|
19
|
19
F0V-H369N-00-00
Float
|
F0V-H369N-00-00 |
— | ||
|
20
|
20
906-01165-42-00 Band, Hose 65 |
906-01165-42-00 |
from US $9.78 |
||
|
21
|
21
GJ8-U824C-02-00 Sender, Oil |
GJ8-U824C-02-00 |
US $111.35 |
||
|
22
|
22
F1W-U828M-00-00 Base, Clamp |
F1W-U828M-00-00 |
from US $3.54 |
||
|
23
|
23
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
24
|
24
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
24
|
24
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
25
|
25
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
25
|
25
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
26
|
26
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
27
|
27
F1V-U273C-01-00 Cover,plate |
F1V-U273C-01-00 |
US $48.58 |
||
|
28
|
28
901-50058-07-00 Screw, Round Head |
901-50058-07-00 |
from US $2.29 |
||
|
29
|
29
6AE-82117-00-00 Wire, Lead |
6AE-82117-00-00 |
from US $57.47 |
||
|
30
|
30
63N-82117-11-00 Wire, Lead |
63N-82117-11-00 |
from US $58.72 |
||
