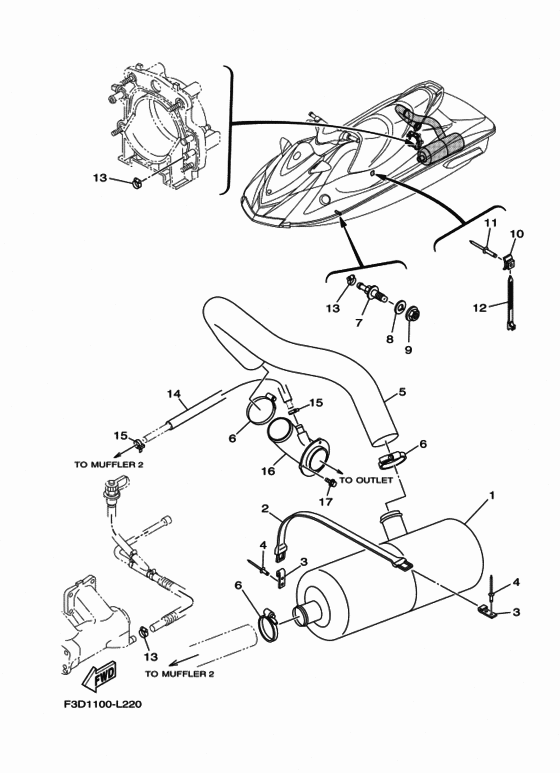

Exhaust 2 Diagram Yamaha VX700
- Model code
- F3D1
- Engine Capacity
- 700
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F3D-67550-00-00
Water Lock Comp
|
F3D-67550-00-00 |
— | ||
|
2
|
2
EU0-68218-04-00 Belt, Battery |
EU0-68218-04-00 |
from US $14.73 |
||
|
3
|
3
GA7-65772-00-00 Hook A |
GA7-65772-00-00 |
from US $5.24 |
||
|
4
|
4
90267-48020-00 Rivet, Blind |
90267-48020-00 |
from US $10.80 |
||
|
5
|
5
F3D-67555-00-00
Hose, Exhaust
|
F3D-67555-00-00 |
— | ||
|
6
|
6
906-01160-30-00 Clamp, Hose 60 |
906-01160-30-00 |
US $45.04 |
||
|
7
|
7
F1G-6753B-00-00 Pilot, Water |
F1G-6753B-00-00 |
from US $30.46 |
||
|
8
|
8
F1B-67564-00-00 Gasket |
F1B-67564-00-00 |
from US $4.39 |
||
|
9
|
9
F0X-62733-00-00 Nut |
F0X-62733-00-00 |
from US $10.06 |
||
|
10
|
10
F1W-U828M-00-00 Base, Clamp |
F1W-U828M-00-00 |
from US $3.54 |
||
|
11
|
11
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
12
|
12
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
13
|
13
90450-14M05-00 Hose Clamp Assy(62T) |
90450-14M05-00 |
from US $9.07 |
||
|
14
|
14
90669-67009-00 Corrugate Tube (L900) |
90669-67009-00 |
US $13.03 |
||
|
15
|
15
90601-20005-00 Band |
90601-20005-00 |
from US $1.98 |
||
|
16
|
16
GJ3-U7560-01-00 Exhaust, Thru-Hall |
GJ3-U7560-01-00 |
from US $209.11 |
||
|
17
|
17
90119-059U4-00 Bolt, With Washer |
90119-059U4-00 |
from US $2.69 |
||
| replacement | |||||
|
17
|
17
90119-05912-00 Bolt, With Washer |
90119-05912-00 |
from US $2.69 |
||
