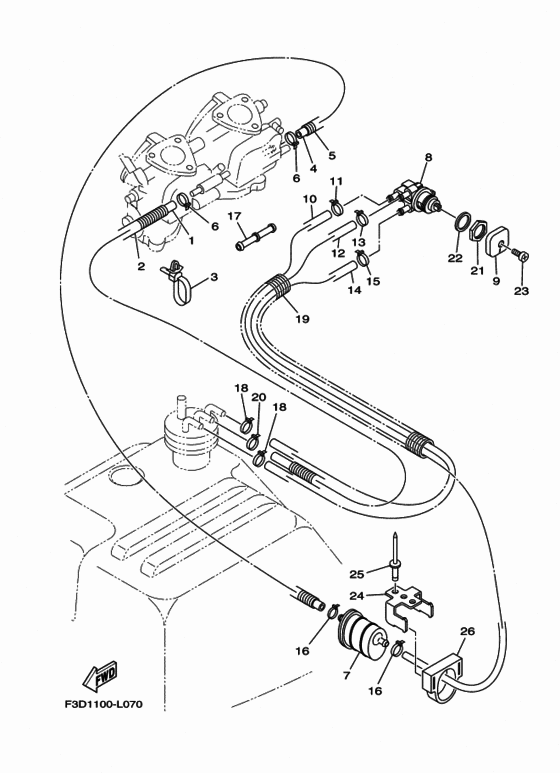

Fuel Diagram Yamaha VX700
- Model code
- F3D1
- Engine Capacity
- 700
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6DU-24313-00-00
Pipe 3
|
6DU-24313-00-00 |
— | ||
|
2
|
2
90446-17MA6-00 Hose (L700) |
90446-17MA6-00 |
from US $7.79 |
||
|
3
|
3
90465-12M56-00 Clamp |
90465-12M56-00 |
from US $5.24 |
||
|
4
|
4
6CP-24312-00-00 Pipe 2 |
6CP-24312-00-00 |
from US $41.59 |
||
|
5
|
5
90447-13006-00 Tube (L1250) |
90447-13006-00 |
from US $13.32 |
||
|
6
|
6
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
6
|
6
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
6
|
6
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
7
|
7
66V-24560-01-00 Filter Assy |
66V-24560-01-00 |
from US $23.38 |
||
|
8
|
8
6DU-24500-00-00
Fuel Cock Assy 1
|
6DU-24500-00-00 |
— | ||
|
9
|
9
6R7-24524-00-00 Lever, Cock |
6R7-24524-00-00 |
from US $6.52 |
||
|
10
|
10
90445-11M68-00 Hose (L450) |
90445-11M68-00 |
US $11.70 |
||
| replacement | |||||
|
10
|
10
90445-11M71-00
Hose (L450)
|
90445-11M71-00 |
— | ||
|
11
|
11
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
11
|
11
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
11
|
11
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
12
|
12
6DU-24315-00-00
Pipe 5
|
6DU-24315-00-00 |
— | ||
|
13
|
13
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
13
|
13
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
14
|
14
6DU-24316-00-00
Pipe 6
|
6DU-24316-00-00 |
— | ||
|
15
|
15
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
15
|
15
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
15
|
15
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
16
|
16
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
16
|
16
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
16
|
16
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
17
|
17
6G8-24376-00-00 Pipe, Joint 1 |
6G8-24376-00-00 |
from US $4.53 |
||
|
18
|
18
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
18
|
18
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
18
|
18
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
19
|
19
906-69680-03-00
Corrugate Tube (L300)
|
906-69680-03-00 |
— | ||
|
20
|
20
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
20
|
20
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
22
|
22
90202-22922-00 Washer, Plate |
90202-22922-00 |
US $8.22 |
||
|
23
|
23
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
24
|
24
EU0-67816-30-00 Bracket, Fuel Filter |
EU0-67816-30-00 |
from US $13.32 |
||
| replacement | |||||
|
24
|
24
FN8-67816-00-00 Bracket, Fuel Filter |
FN8-67816-00-00 |
from US $13.32 |
||
|
25
|
25
90267-48020-00 Rivet, Blind |
90267-48020-00 |
from US $10.80 |
||
|
26
|
26
EU0-67817-00-00 Holder, Filter |
EU0-67817-00-00 |
from US $8.93 |
||
