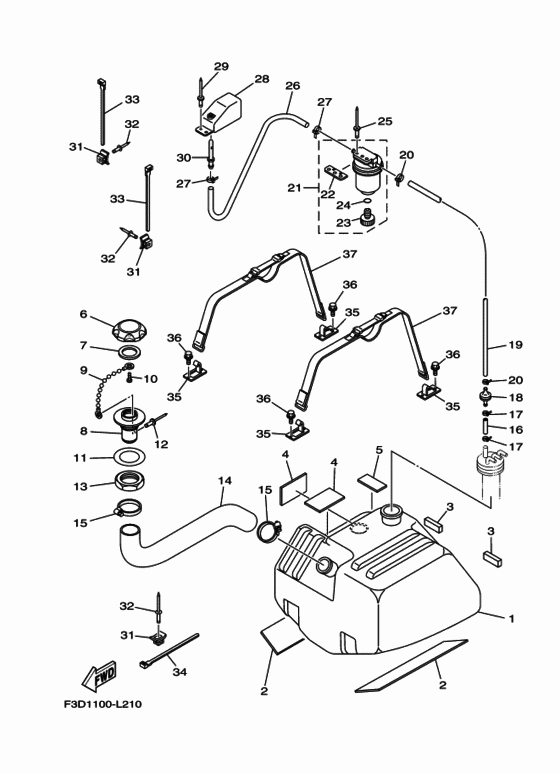

Fuel tank Diagram Yamaha VX700
- Model code
- F3D1
- Engine Capacity
- 700
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F3D-67711-00-00
Tank, Fuel
|
F3D-67711-00-00 |
— | ||
|
2
|
2
F3D-6759B-00-00
Mat 1
|
F3D-6759B-00-00 |
— | ||
|
3
|
3
F3D-6759C-00-00
Mat 2
|
F3D-6759C-00-00 |
— | ||
|
4
|
4
GJ1-6759B-00-00 Mat 1 |
GJ1-6759B-00-00 |
from US $3.74 |
||
|
5
|
5
GJ1-6759C-00-00 Mat 2 |
GJ1-6759C-00-00 |
from US $2.39 |
||
|
6
|
6
F2N-U7831-10-00 Cap, Fuel FillerBLACK |
F2N-U7831-10-00 |
from US $29.34 |
||
|
7
|
7
GP7-U7832-01-00 Packing |
GP7-U7832-01-00 |
from US $14.31 |
||
|
8
|
8
GP7-U7833-11-00 SocketBLACK |
GP7-U7833-11-00 |
from US $15.17 |
||
|
9
|
9
GP7-U7835-00-00 Chain Ball |
GP7-U7835-00-00 |
from US $10.03 |
||
|
10
|
10
90169-049U1-00 Tapping Screw |
90169-049U1-00 |
from US $5.81 |
||
|
11
|
11
GP7-U7834-00-00 Packing Fuel Filler |
GP7-U7834-00-00 |
from US $15.02 |
||
|
12
|
12
90267-329UR-00 Rivet, Blind |
90267-329UR-00 |
from US $3.38 |
||
|
13
|
13
GP7-U783F-00-00 Nut, Fuel Filler |
GP7-U783F-00-00 |
from US $10.17 |
||
|
14
|
14
F3D-67844-00-00
Hose
|
F3D-67844-00-00 |
— | ||
|
15
|
15
906-01153-50-00 Clamp, Hose 53 |
906-01153-50-00 |
US $32.73 |
||
|
16
|
16
90699-50004-00 Hose (L40) |
90699-50004-00 |
from US $17.43 |
||
| replacement | |||||
|
16
|
16
90699-50100-00 Hose |
90699-50100-00 |
from US $17.43 |
||
|
17
|
17
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
17
|
17
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.29 |
||
|
17
|
17
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
18
|
18
EU0-67767-31-00 Check Valve |
EU0-67767-31-00 |
from US $24.94 |
||
|
19
|
19
90699-50020-00 Hose (L200) |
90699-50020-00 |
US $17.43 |
||
|
20
|
20
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.29 |
||
|
20
|
20
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
F2F-6214A-00-00 Filter, Vent Assy |
F2F-6214A-00-00 |
from US $57.20 |
||
|
22
|
22
EW2-62142-00-00 Plate, Filter |
EW2-62142-00-00 |
from US $26.38 |
||
|
23
|
23
70R-24543-00-00 Plug, Drain |
70R-24543-00-00 |
from US $5.40 |
||
|
24
|
24
70R-24489-00-00 O-Ring |
70R-24489-00-00 |
from US $2.36 |
||
|
25
|
25
90267-48020-00 Rivet, Blind |
90267-48020-00 |
from US $10.80 |
||
|
26
|
26
90699-50130-00
Hose (L1300)
|
90699-50130-00 |
— | ||
|
27
|
27
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
27
|
27
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.29 |
||
|
27
|
27
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
28
|
28
GP7-62159-02-00 Socket, Ventilation |
GP7-62159-02-00 |
from US $19.41 |
||
|
29
|
29
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
30
|
30
F1G-62149-00-00 Pipe, Ventilation |
F1G-62149-00-00 |
from US $8.64 |
||
|
31
|
31
F1W-U828M-00-00 Base, Clamp |
F1W-U828M-00-00 |
from US $3.54 |
||
|
32
|
32
90267-48930-00 Rivet, Sealed |
90267-48930-00 |
from US $2.69 |
||
|
33
|
33
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
33
|
33
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
34
|
34
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
34
|
34
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
35
|
35
F3D-65772-00-00
Hook A
|
F3D-65772-00-00 |
— | ||
|
36
|
36
90119-069UH-00 Bolt, With Washer |
90119-069UH-00 |
from US $2.27 |
||
| replacement | |||||
|
36
|
36
901-19068-30-00 Bolt, With Washer |
901-19068-30-00 |
from US $2.27 |
||
|
37
|
37
F1K-67743-00-00 Belt, Tank 1 |
F1K-67743-00-00 |
from US $55.58 |
||
