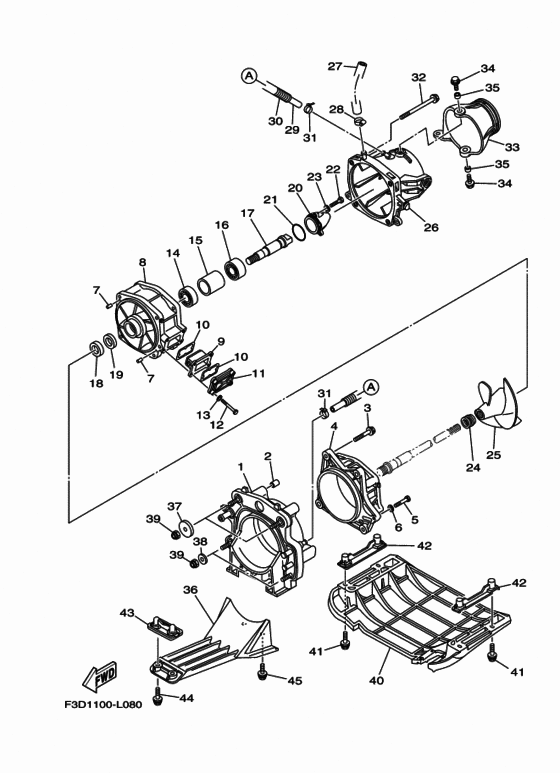

Jet unit 1 Diagram Yamaha VX700
- Model code
- F3D1
- Engine Capacity
- 700
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6DU-45831-00-00 Plate, Transom |
6DU-45831-00-00 |
US $1,320 |
||
|
2
|
2
995-90140-16-00 Pin, Dowel |
995-90140-16-00 |
from US $2.24 |
||
|
3
|
3
90119-10024-00 Bolt, With Washer |
90119-10024-00 |
from US $8.43 |
||
|
4
|
4
66V-51312-01-94 Housing, Impeller |
66V-51312-01-94 |
from US $310.65 |
||
| replacement | |||||
|
4
|
4
6CR-R1312-00-00 HOUSING, IMPELLER |
6CR-R1312-00-00 |
from US $186.28 |
||
|
5
|
5
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
5
|
5
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
6
|
6
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
8
|
8
66V-51315-01-94 Duct, Impeller |
66V-51315-01-94 |
from US $250.61 |
||
| replacement | |||||
|
8
|
8
66V-51315-01-00 Duct, Impeller |
66V-51315-01-00 |
from US $305.75 |
||
|
9
|
9
66V-46882-00-00 Filter |
66V-46882-00-00 |
from US $11.05 |
||
|
10
|
10
66V-42414-00-00 O-Ring |
66V-42414-00-00 |
from US $6.52 |
||
|
11
|
11
66V-45214-00-94 Cover, Water Inlet 1 |
66V-45214-00-94 |
from US $22.95 |
||
|
12
|
12
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
12
|
12
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
13
|
13
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
93306-27211-00 Bearing |
93306-27211-00 |
from US $37.04 |
||
|
15
|
15
65V-45538-00-00 Spacer 1 |
65V-45538-00-00 |
from US $21.88 |
||
|
16
|
16
933-06205-U0-00
Bearing
|
933-06205-U0-00 |
— | ||
| replacement | |||||
|
16
|
16
93306-205U1-00 Bearing |
93306-205U1-00 |
from US $23.24 |
||
|
17
|
17
6D3-45514-00-00 Shaft, Drive 4 |
6D3-45514-00-00 |
from US $254.98 |
||
|
18
|
18
93101-21001-00 Oil Seal |
93101-21001-00 |
from US $24.23 |
||
|
19
|
19
93101-21002-00 Oil Seal |
93101-21002-00 |
from US $9.21 |
||
|
20
|
20
62T-51326-10-00 Cap |
62T-51326-10-00 |
from US $46.70 |
||
|
21
|
21
93210-464A3-00 O-Ring |
93210-464A3-00 |
from US $2.50 |
||
|
22
|
22
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
6D3-R1319-00-00 Cap, Impeller |
6D3-R1319-00-00 |
from US $4.11 |
||
|
25
|
25
6AE-R1321-00-00 Impeller |
6AE-R1321-00-00 |
from US $338.15 |
||
|
26
|
26
6BU-R1318-00-00 Nozzle |
6BU-R1318-00-00 |
from US $64.58 |
||
| replacement | |||||
|
26
|
26
6BU-R1318-01-00 Nozzle |
6BU-R1318-01-00 |
from US $76.93 |
||
|
27
|
27
90445-16006-00 Hose (L260) |
90445-16006-00 |
from US $10.63 |
||
|
28
|
28
90450-20078-00 Hose Clamp Assy |
90450-20078-00 |
from US $16.65 |
||
|
29
|
29
90445-14008-00 Hose (L355) |
90445-14008-00 |
from US $10.06 |
||
|
30
|
30
90446-20MF5-00 Hose (L320) |
90446-20MF5-00 |
from US $4.72 |
||
|
31
|
31
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
31
|
31
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
31
|
31
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
32
|
32
901-19100-55-00 Bolt, With Washer |
901-19100-55-00 |
from US $13.60 |
||
|
33
|
33
6BU-R1313-00-00 Nozzle, Deflector |
6BU-R1313-00-00 |
from US $60.73 |
||
|
34
|
34
90119-08161-00 Bolt, With Washer |
90119-08161-00 |
US $4.53 |
||
|
35
|
35
90387-08M06-00 Collar |
90387-08M06-00 |
from US $5.97 |
||
|
36
|
36
6D3-R1333-01-00 Screen, Intake |
6D3-R1333-01-00 |
from US $155.90 |
||
|
37
|
37
F1S-U725E-01-00 Washer |
F1S-U725E-01-00 |
from US $11.12 |
||
|
38
|
38
90201-10801-00 Washer, Plate |
90201-10801-00 |
from US $6.23 |
||
|
39
|
39
95720-10300-00 Nut |
95720-10300-00 |
from US $4.25 |
||
|
40
|
40
F2N-U273B-00-00 Plate 2 |
F2N-U273B-00-00 |
from US $245.52 |
||
| replacement | |||||
|
40
|
40
F2N-U273B-10-00 Plate 2 |
F2N-U273B-10-00 |
from US $281.45 |
||
|
41
|
41
90119-08823-00 Bolt, With Washer |
90119-08823-00 |
from US $8.02 |
||
| replacement | |||||
|
41
|
41
901-19088-29-00 Bolt, With Washer |
901-19088-29-00 |
from US $8.50 |
||
|
42
|
42
F1G-U8572-02-00 Bracket 2 |
F1G-U8572-02-00 |
from US $26.30 |
||
|
43
|
43
F1K-U8577-01-00 Bracket, 3 |
F1K-U8577-01-00 |
from US $32.38 |
||
|
44
|
44
901-19068-95-00 Bolt, With Washer |
901-19068-95-00 |
from US $4.68 |
||
| replacement | |||||
|
44
|
44
901-19068-96-00 Bolt, With Washer |
901-19068-96-00 |
from US $4.68 |
||
|
45
|
45
901-19108-08-00 Bolt, With Washer |
901-19108-08-00 |
from US $6.35 |
||
| replacement | |||||
|
45
|
45
901-19108-09-00 Bolt, With Washer |
901-19108-09-00 |
from US $15.50 |
||
