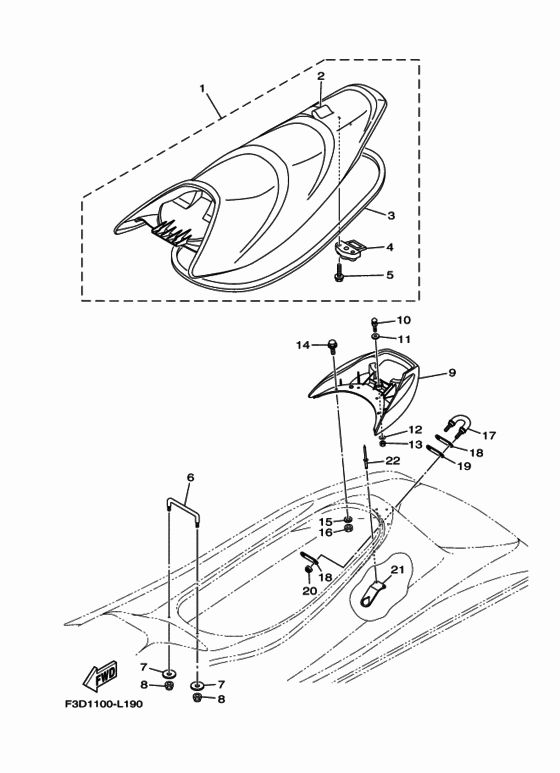

Seat & under locker Diagram Yamaha VX700
- Model code
- F3D1
- Engine Capacity
- 700
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2N-U371A-04-00 Double Seat Assy |
F2N-U371A-04-00 |
from US $660.13 |
||
|
2
|
2
F2N-U371B-00-00 Cover, Seat 1 (Silver) |
F2N-U371B-00-00 |
from US $259.18 |
||
|
3
|
3
F2N-U2664-00-00 Packing |
F2N-U2664-00-00 |
from US $70.85 |
||
|
4
|
4
F2C-U3850-00-00 Seat Lock Assy |
F2C-U3850-00-00 |
from US $32.38 |
||
|
5
|
5
901-19069-UP-00
Bolt, With Washer
|
901-19069-UP-00 |
— | ||
| replacements | |||||
|
5
|
5
90119-06914-00 Bolt, With Washer |
90119-06914-00 |
from US $3.26 |
||
|
5
|
5
90119-06808-00 Bolt, With Washer |
90119-06808-00 |
from US $4.50 |
||
|
6
|
6
F0X-6378C-00-00 Stay, Seat 1 |
F0X-6378C-00-00 |
from US $35.78 |
||
|
7
|
7
90201-08929-00 Washer, Plate |
90201-08929-00 |
from US $5.81 |
||
|
8
|
8
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
9
|
9
F2N-U271B-01-00 Grip, Hand |
F2N-U271B-01-00 |
from US $284.61 |
||
|
10
|
10
A00-63774-00-00 Pin |
A00-63774-00-00 |
US $10.28 |
||
|
11
|
11
90201-10017-00 Washer, Plate |
90201-10017-00 |
US $3.60 |
||
|
12
|
12
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
13
|
13
95720-10300-00 Nut |
95720-10300-00 |
from US $4.25 |
||
|
14
|
14
90119-089U2-00 Bolt, With Washer |
90119-089U2-00 |
US $8.95 |
||
|
15
|
15
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
16
|
16
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
17
|
17
F2N-U1628-02-00 Stern Eye |
F2N-U1628-02-00 |
from US $11.20 |
||
|
18
|
18
F3D-64953-00-00 Plate A |
F3D-64953-00-00 |
from US $2.69 |
||
|
19
|
19
F3D-61653-00-00
Packing
|
F3D-61653-00-00 |
— | ||
|
20
|
20
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
21
|
21
F3D-65938-00-00
Stay 1
|
F3D-65938-00-00 |
— | ||
|
22
|
22
90267-48020-00 Rivet, Blind |
90267-48020-00 |
from US $10.80 |
||
