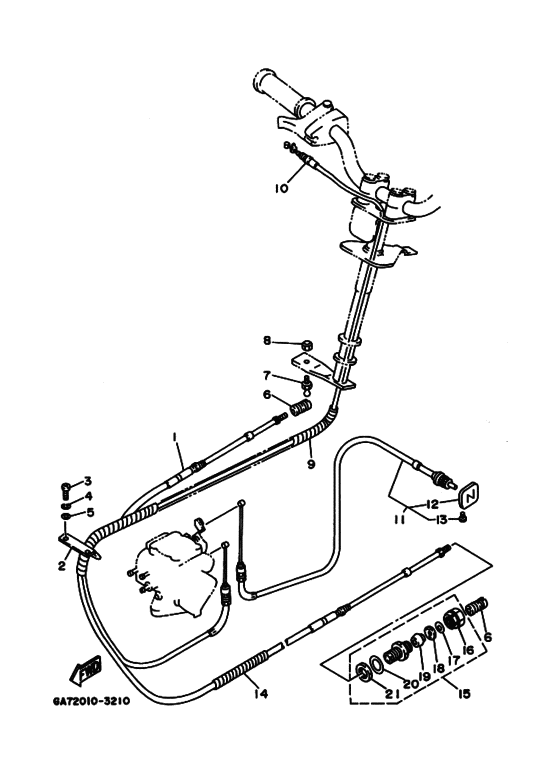

Control cable Diagram Yamaha WB700 700TZ
- Model code
- GA76
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- Japan (010)
- Colour
- Purplish Blue Solid 1 (PBS1; 0396)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GA7-61481-00-00 Cable, SteeringＣＡＢＬＥ， ＳＴＥＥＲＩＮＧ; |
GA7-61481-00-00 |
from US $261.12 |
||
|
2
|
2
EU0-61557-01-00 Guide, CableＧＵＩＤＥ， ＣＡＢＬＥ; |
EU0-61557-01-00 |
US $30.19 |
||
|
3
|
3
98580-04016-00 Screw, Panhead (+)ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-04016-00 |
from US $1.07 |
||
|
4
|
4
92990-04100-00 Washer, SpringＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
92990-04100-00 |
from US $1.21 |
||
|
5
|
5
929-90046-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90046-00-00 |
from US $1.07 |
||
|
6
|
6
EU0-61461-30-00 Shaft,joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
6
|
6
F0V-U1461-00-00 Stud, Joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
F0V-U1461-00-00 |
from US $51.53 |
||
|
7
|
7
EU0-61461-01-00
Stood, Joint Ball
ＳＴＵＤ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-01-00 |
— | ||
|
8
|
8
95720-06300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
9
|
9
90699-36085-00 Spirap 11ＳＰＩＲＡＰ １１; |
90699-36085-00 |
from US $13.88 |
||
| replacement | |||||
|
9
|
9
90699-36100-00 Spiral TubeＳＰＩＲＡＰ １１; |
90699-36100-00 |
from US $13.88 |
||
|
10
|
10
EU0-67252-02-00 Cable, Throttle 1ＣＡＢＬＥ， ＴＨＲＯＴＴＬＥ １; |
EU0-67252-02-00 |
from US $161.98 |
||
|
11
|
11
GA7-67242-00-00 Cable, ChokeＣＡＢＬＥ， ＣＨＯＫＥ; |
GA7-67242-00-00 |
US $143.57 |
||
|
12
|
12
EW2-67243-00-00 Knob, Choke．ＫＮＯＢ; |
EW2-67243-00-00 |
from US $22.25 |
||
|
13
|
13
90149-03930-00 Screw．ＳＣＲＥＷ; |
90149-03930-00 |
from US $10.48 |
||
|
14
|
14
90699-36020-00 Spiral TubeＳＰＩＲＡＬ ＴＵＢＥ １１; |
90699-36020-00 |
from US $13.88 |
||
| replacement | |||||
|
14
|
14
90699-36100-00 Spiral TubeＳＰＩＲＡＬ ＴＵＢＥ １１; |
90699-36100-00 |
from US $13.88 |
||
|
15
|
15
EU0-67267-00-00 Connector,cableＣＯＮＮＥＣＴＯＲ， ＣＡＢＬＥ; |
EU0-67267-00-00 |
from US $38.96 |
||
|
16
|
16
EU0-62694-00-00 Cap．ＣＡＰ; |
EU0-62694-00-00 |
from US $8.19 |
||
|
17
|
17
EU0-61446-00-00 Washer．ＷＡＳＨＥＲ ３０; |
EU0-61446-00-00 |
from US $5.97 |
||
|
18
|
18
EU0-61486-00-00 Stopper．ＳＴＯＰＰＥＲ; |
EU0-61486-00-00 |
from US $3.20 |
||
|
19
|
19
EU0-61435-00-00 Seal, Pipe 30．ＳＥＡＬ， ＰＩＰＥ ３０; |
EU0-61435-00-00 |
from US $5.41 |
||
|
20
|
20
EU0-61438-00-00 Packing．ＰＡＣＫＩＮＧ ; Ｃ |
EU0-61438-00-00 |
from US $4.04 |
||
|
21
|
21
EU0-62241-30-00 Nut, Drain 1．ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
