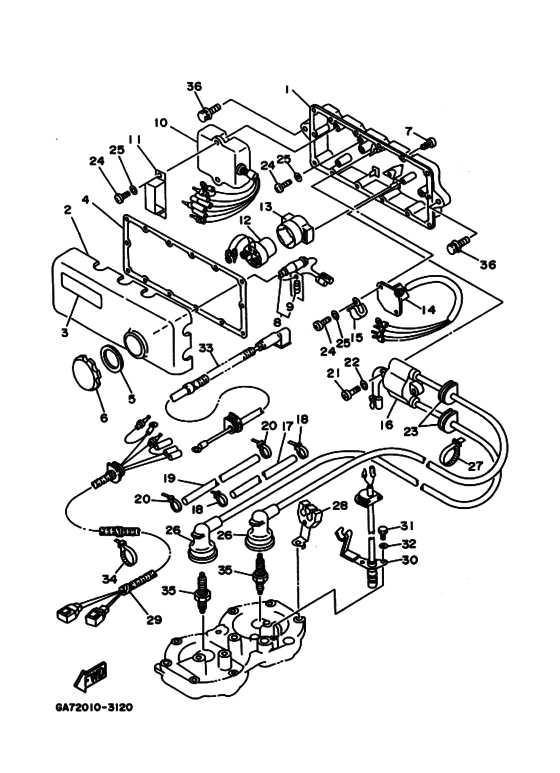

Electrical 1 Diagram Yamaha WB700 700TZ
- Model code
- GA76
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- Japan (010)
- Colour
- Purplish Blue Solid 1 (PBS1; 0396)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6M6-8552A-01-98 HousingＨＯＵＳＩＮＧ; ＬＯＷ ＧＬＯＳＳ ＢＬＡＣＫ |
6M6-8552A-01-98 |
from US $116.47 |
||
| replacement | |||||
|
1
|
1
6M6-8552A-01-8P HousingＨＯＵＳＩＮＧ; ＬＯＷ ＧＬＯＳＳ ＢＬＡＣＫ |
6M6-8552A-01-8P |
from US $116.47 |
||
|
2
|
2
6M6-8552E-00-00 Cover, CaseＣＯＶＥＲ， ＣＡＳＥ; |
6M6-8552E-00-00 |
from US $49.18 |
||
| replacement | |||||
|
2
|
2
6M6-8552E-01-00 Cover, CaseＣＯＶＥＲ， ＣＡＳＥ; |
6M6-8552E-01-00 |
from US $49.18 |
||
|
3
|
3
6R7-83623-40-00 Mark 3ＭＡＲＫ ３; |
6R7-83623-40-00 |
from US $7.23 |
||
|
4
|
4
6M6-81921-00-00 Gasket, TerminalＧＡＳＫＥＴ， ＴＥＲＭＩＮＡＬ; |
6M6-81921-00-00 |
from US $25.60 |
||
|
5
|
5
6M6-81844-00-00 GasketＧＡＳＫＥＴ; |
6M6-81844-00-00 |
from US $8.42 |
||
|
6
|
6
6M6-8132W-00-00 CapＣＡＰ; |
6M6-8132W-00-00 |
from US $13.14 |
||
|
7
|
7
97780-60525-00 Screw,tappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
7
|
7
97780-60625-00 Screw, Tapping(65J)ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60625-00 |
from US $2.22 |
||
|
8
|
8
6K8-82150-01-00 Fuse Holder AssyＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
8
|
8
6K8-82150-02-00 FUSE HOLDER ASSYＦＵＳＥ ＨＯＬＤＥＲ ＡＳＳＹ; |
6K8-82150-02-00 |
from US $26.78 |
||
|
9
|
9
6G1-82151-00-00 Fuse (10A)．ＦＵＳＥ; |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
1E6-82151-00-00 Fuse (10A)．ＦＵＳＥ; |
1E6-82151-00-00 |
from US $2.02 |
||
|
10
|
10
61X-85540-00-00 C.d.i. Unit Assy．．．ＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
61X-85540-00-00 |
from US $608.69 |
||
| replacements | |||||
|
10
|
10
6M6-85540-01-00 C.d.i. Unit Assembly．．．ＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
6M6-85540-01-00 |
from US $608.69 |
||
|
10
|
10
6M6-85540-02-00 C.d.i. Unit Assy．．．ＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
6M6-85540-02-00 |
US $641.90 |
||
|
11
|
11
90464-06M29-00 ClampＣＬＡＭＰ; |
90464-06M29-00 |
from US $4.64 |
||
|
12
|
12
6G1-81941-10-00 Starter Relay AssyＳＴＡＲＴＥＲ ＲＥＬＡＹ ＡＳＳＹ; |
6G1-81941-10-00 |
from US $57.24 |
||
|
13
|
13
6M6-81952-01-00
Holder, Relay
ＨＯＬＤＥＲ， ＲＥＬＡＹ; |
6M6-81952-01-00 |
— | ||
|
14
|
14
6M6-81960-A0-00 Rectifier & Regulator AssyＲＥＣＴＩＦＩＥＲ ＆ａｍｐ； ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
6M6-81960-A0-00 |
from US $95.28 |
||
|
15
|
15
90465-08028-00 ClampＣＬＡＭＰ; |
90465-08028-00 |
from US $3.40 |
||
|
16
|
16
62E-85570-00-00 Ignition Coil AssyＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
62E-85570-00-00 |
from US $237.64 |
||
|
17
|
17
62E-82351-00-00 Tube, Cord 2ＴＵＢＥ， ＣＯＲＤ; |
62E-82351-00-00 |
US $31.23 |
||
| replacement | |||||
|
17
|
17
6R8-82352-00-00 Tube, Cord 2ＴＵＢＥ， ＣＯＲＤ; |
6R8-82352-00-00 |
US $31.23 |
||
|
18
|
18
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
18
|
18
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
18
|
18
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
19
|
19
62E-82352-00-00 Tube, Cord 2ＴＵＢＥ， ＣＯＲＤ ２; |
62E-82352-00-00 |
US $31.23 |
||
| replacement | |||||
|
19
|
19
6R8-82352-00-00 Tube, Cord 2ＴＵＢＥ， ＣＯＲＤ ２; |
6R8-82352-00-00 |
US $31.23 |
||
|
20
|
20
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
20
|
20
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
985-80060-30-00
Screw Pan Head
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
985-80060-30-00 |
— | ||
| replacement | |||||
|
21
|
21
97885-06030-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-06030-00 |
from US $1.52 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
90480-06M43-00 GrommetＧＲＯＭＭＥＴ; |
90480-06M43-00 |
from US $3.83 |
||
|
24
|
24
985-03060-14-00
Screw, Pan Head
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
985-03060-14-00 |
— | ||
| replacement | |||||
|
24
|
24
98507-06014-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98507-06014-00 |
from US $1.07 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
6K8-82370-00-00 Plug Cap AssemblyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
6K8-82370-00-00 |
from US $50.34 |
||
|
27
|
27
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
27
|
27
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
27
|
27
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
28
|
28
6R7-82361-00-00
Clamp, Cord
ＣＬＡＭＰ， ＣＯＲＤ; |
6R7-82361-00-00 |
— | ||
|
29
|
29
62E-82553-00-00 Extension, Wire LeadＥＸＴＥＮＳＩＯＮ， ＷＩＲＥ ＬＥＡＤ; ＵＲ |
62E-82553-00-00 |
US $170.66 |
||
|
29
|
29
62E-82553-10-00
Extension, Wire Lead
ＥＸＴＥＮＳＩＯＮ， ＷＩＲＥ ＬＥＡＤ; ＵＲ ＦＯＲ ＣＡＮＡＤＡ／ＥＵＲＯＰＥ |
62E-82553-10-00 |
— | ||
|
30
|
30
6R7-82560-00-00
Thermo Switch Assy
ＴＨＥＲＭＯ ＳＷＩＴＣＨ ＡＳＳＹ; |
6R7-82560-00-00 |
— | ||
|
31
|
31
973-95060-16-00
Bolt, Hex
ＢＯＬＴ; |
973-95060-16-00 |
— | ||
| replacements | |||||
|
31
|
31
97095-06016-00 BoltＢＯＬＴ; |
97095-06016-00 |
US $1.39 |
||
|
31
|
31
97D95-06016-00 Bolt, Hexagon Deep RecessＢＯＬＴ; |
97D95-06016-00 |
from US $1.39 |
||
|
32
|
32
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ; |
929-95061-00-00 |
from US $0.97 |
||
|
33
|
33
62E-82117-20-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
62E-82117-20-00 |
from US $46.80 |
||
|
34
|
34
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
35
|
35
94701-00041-00 Plug, Spark (Ngk B8Hs)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ Ｂ８ＨＳ |
94701-00041-00 |
US $3.46 |
||
| replacements | |||||
|
35
|
35
B8H-S0000-00-00 elementＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ Ｂ８ＨＳ |
B8H-S0000-00-00 |
US $4.99 |
||
|
35
|
35
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK)ＰＬＵＧ， ＳＰＡＲＫ ; ＮＧＫ Ｂ８ＨＳ |
BR8-HS000-00-00 |
US $26.36 |
||
|
36
|
36
90119-08038-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08038-00 |
from US $2.36 |
||
