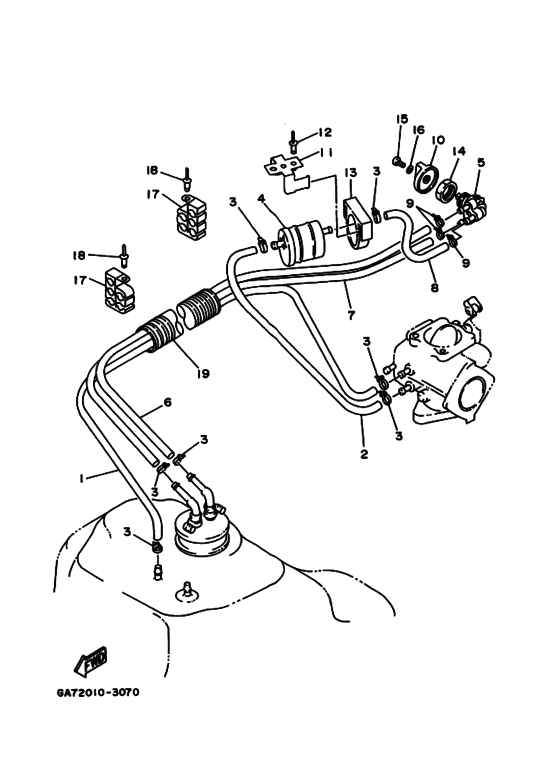

Fuel Diagram Yamaha WB700 700TZ
- Model code
- GA76
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- Japan (010)
- Colour
- Purplish Blue Solid 1 (PBS1; 0396)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90445-10M35-00 Hose (L1000)ＨＯＳＥ; |
90445-10M35-00 |
from US $45.75 |
||
| replacements | |||||
|
1
|
1
999-99999-99-00
Not Available
ＨＯＳＥ; |
999-99999-99-00 |
— | ||
|
1
|
1
90445-10M87-00 Hose (L1700)ＨＯＳＥ; |
90445-10M87-00 |
US $45.75 |
||
|
2
|
2
90445-10M92-00 HoseＨＯＳＥ; |
90445-10M92-00 |
US $11.19 |
||
| replacements | |||||
|
2
|
2
90445-115H4-00 Hose (L565)ＨＯＳＥ; |
90445-115H4-00 |
US $11.19 |
||
|
2
|
2
90445-10020-00 Hose (L590)ＨＯＳＥ; |
90445-10020-00 |
from US $11.19 |
||
|
3
|
3
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
3
|
3
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
3
|
3
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
4
|
4
6K8-24560-10-00 Filter AssyＦＩＬＴＥＲ ＡＳＳＹ; |
6K8-24560-10-00 |
from US $40.58 |
||
| replacement | |||||
|
4
|
4
6K8-24560-21-00 Filter AssyＦＩＬＴＥＲ ＡＳＳＹ; |
6K8-24560-21-00 |
from US $38.45 |
||
|
5
|
5
6K8-24500-02-00 Fuel Cock Assy 1ＦＵＥＬ ＣＯＣＫ ＡＳＳＹ １; |
6K8-24500-02-00 |
from US $58.01 |
||
| replacement | |||||
|
5
|
5
6K8-24500-03-00 Fuel Cock Assy 1ＦＵＥＬ ＣＯＣＫ ＡＳＳＹ １; |
6K8-24500-03-00 |
US $113.38 |
||
|
6
|
6
90445-10M64-00 Hose (L1010)ＨＯＳＥ; |
90445-10M64-00 |
from US $45.75 |
||
| replacements | |||||
|
6
|
6
999-99999-99-00
Not Available
ＨＯＳＥ; |
999-99999-99-00 |
— | ||
|
6
|
6
90445-10M87-00 Hose (L1700)ＨＯＳＥ; |
90445-10M87-00 |
US $45.75 |
||
|
7
|
7
90445-10M05-00 Hose (L1010)ＨＯＳＥ; |
90445-10M05-00 |
from US $45.75 |
||
| replacements | |||||
|
7
|
7
999-99999-99-00
Not Available
ＨＯＳＥ; |
999-99999-99-00 |
— | ||
|
7
|
7
90445-10M87-00 Hose (L1700)ＨＯＳＥ; |
90445-10M87-00 |
US $45.75 |
||
|
8
|
8
90445-10M67-00 Hose (L140)ＨＯＳＥ; |
90445-10M67-00 |
US $6.38 |
||
| replacement | |||||
|
8
|
8
90445-10M43-00 Hose (L400)ＨＯＳＥ; |
90445-10M43-00 |
from US $6.94 |
||
|
9
|
9
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
9
|
9
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
9
|
9
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
10
|
10
6K8-24524-10-00 Lever, CockＬＥＶＥＲ， ＣＯＣＫ; |
6K8-24524-10-00 |
from US $15.17 |
||
|
11
|
11
EU0-67816-30-00 Bracket, Fuel FilterＢＲＡＣＫＥＴ， ＦＵＥＬ ＦＩＬＴＥＲ; |
EU0-67816-30-00 |
from US $13.32 |
||
| replacement | |||||
|
11
|
11
FN8-67816-00-00 Bracket, Fuel FilterＢＲＡＣＫＥＴ， ＦＵＥＬ ＦＩＬＴＥＲ; |
FN8-67816-00-00 |
from US $13.32 |
||
|
12
|
12
90267-48940-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48940-00 |
from US $3.14 |
||
|
13
|
13
EU0-67817-00-00 Holder, FilterＨＯＬＤＥＲ; |
EU0-67817-00-00 |
from US $8.93 |
||
|
14
|
14
90170-22M11-00
Nut
ＮＵＴ; |
90170-22M11-00 |
— | ||
|
15
|
15
985-80040-10-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
985-80040-10-00 |
from US $1.07 |
||
|
16
|
16
929-90046-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90046-00-00 |
from US $1.07 |
||
|
17
|
17
EW2-67812-00-00
Holder, Pipe 2
ＨＯＬＤＥＲ， ＰＩＰＥ ２; |
EW2-67812-00-00 |
— | ||
|
18
|
18
90267-48925-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
18
|
18
90267-48802-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48802-00 |
from US $1.84 |
||
|
19
|
19
GA7-6773D-00-00
Tube
ＴＵＢＥ; |
GA7-6773D-00-00 |
— | ||
