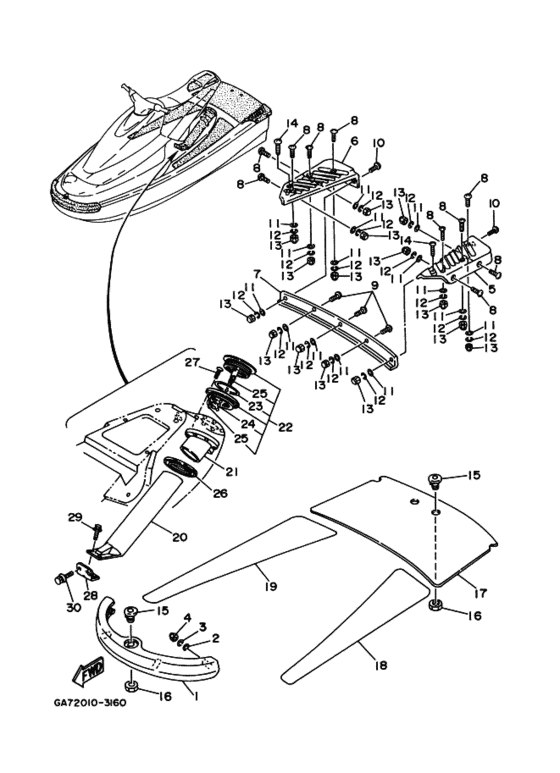

Gunwale. mat Diagram Yamaha WB700 700TZ
- Model code
- GA76
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- Japan (010)
- Colour
- Purplish Blue Solid 1 (PBS1; 0396)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GA7-62501-00-00
Bow Gunwale Comp
．ＢＯＷ ＧＵＮＷＡＬＥ ＣＯＭＰ; |
GA7-62501-00-00 |
— | ||
|
2
|
2
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.18 |
||
|
4
|
4
95380-06800-00 Nut (J17)ＮＵＴ; |
95380-06800-00 |
from US $1.18 |
||
|
5
|
5
GA7-6251D-00-00
Gunwale,stern 1
ＧＵＮＷＡＬＥ， ＳＴＥＲＮ １; |
GA7-6251D-00-00 |
— | ||
|
6
|
6
GA7-6251E-00-00
Gunwale,stern 2
ＧＵＮＷＡＬＥ， ＳＴＥＲＮ ２; |
GA7-6251E-00-00 |
— | ||
|
7
|
7
GA7-6252C-00-00
Cover,gunwale1
ＣＯＶＥＲ， ＧＵＮＷＡＬＥ １; |
GA7-6252C-00-00 |
— | ||
|
8
|
8
90149-06975-00 ScrewＳＣＲＥＷ; |
90149-06975-00 |
US $1.53 |
||
| replacement | |||||
|
8
|
8
901-54068-18-00
Screw(Fn8)
ＳＣＲＥＷ; |
901-54068-18-00 |
— | ||
|
9
|
9
90149-06973-00 ScrewＳＣＲＥＷ; |
90149-06973-00 |
US $4.82 |
||
|
10
|
10
90149-06971-00
Screw
ＳＣＲＥＷ; |
90149-06971-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
ＳＣＲＥＷ; |
999-99999-99-00 |
— | ||
|
11
|
11
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.18 |
||
|
12
|
12
929-95061-00-00 Washer, SpringＷＡＳＨＥＲ; |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
95380-06800-00 Nut (J17)ＮＵＴ; |
95380-06800-00 |
from US $1.18 |
||
|
14
|
14
90149-05937-00 ScrewＳＣＲＥＷ; |
90149-05937-00 |
from US $1.84 |
||
|
15
|
15
FN8-61651-00-00 Rope HoleＲＯＰＥ ＨＯＬＥ; |
FN8-61651-00-00 |
from US $4.99 |
||
| replacement | |||||
|
15
|
15
FN8-61651-01-00 Rope HoleＲＯＰＥ ＨＯＬＥ; |
FN8-61651-01-00 |
from US $8.50 |
||
|
16
|
16
EU0-61652-00-00 NutＮＵＴ; |
EU0-61652-00-00 |
from US $6.94 |
||
|
17
|
17
GA7-63581-00-00
Mat, Upper
ＭＡＴ， ＵＰＰＥＲ; |
GA7-63581-00-00 |
— | ||
|
18
|
18
GA7-6351H-00-00
Mat,step 1
ＭＡＴ， ＳＴＥＰ １; |
GA7-6351H-00-00 |
— | ||
|
19
|
19
GA7-6351J-00-00 Mat,step 2ＭＡＴ， ＳＴＥＰ ２; |
GA7-6351J-00-00 |
US $87.03 |
||
|
20
|
20
GA7-65983-00-00 Box, Fire ExtinguisherＢＯＸ， ＦＩＲＥ ＥＸＴＩＮＧＵＩＳＨＥＲ; |
GA7-65983-00-00 |
US $78.23 |
||
|
21
|
21
GA7-65984-00-00 GrommetＧＲＯＭＭＥＴ; |
GA7-65984-00-00 |
from US $62.17 |
||
|
22
|
22
GA7-62720-00-00 Inspection Cover AssyＩＮＳＰＥＣＴＩＯＮ ＣＯＶＥＲ ＡＳＳＹ; |
GA7-62720-00-00 |
US $94.01 |
||
| replacement | |||||
|
22
|
22
GA7-62720-01-00 Inspection Cover AssyＩＮＳＰＥＣＴＩＯＮ ＣＯＶＥＲ ＡＳＳＹ; |
GA7-62720-01-00 |
US $94.01 |
||
|
23
|
23
93211-03902-00 O-Ring．ＲＩＮＧ; |
93211-03902-00 |
from US $11.76 |
||
|
24
|
24
EU0-67835-30-00 Chain Ball．ＣＨＡＩＮ ＢＡＬＬ; |
EU0-67835-30-00 |
US $10.17 |
||
|
25
|
25
EU0-67839-00-00 Cupling．ＣＯＵＰＬＩＮＧ; |
EU0-67839-00-00 |
from US $7.65 |
||
|
26
|
26
GA7-6593J-00-00 Plate,fire ExtinguisherＰＬＡＴＥ， ＦＩＲＥ ＥＸＴＩＮＧＵＩＳＨＥＲ; |
GA7-6593J-00-00 |
from US $15.27 |
||
|
27
|
27
98780-04035-00
Screw, Flat Head
ＳＣＲＥＷ， ＦＬＡＴ ＨＥＡＤ; |
98780-04035-00 |
— | ||
| replacement | |||||
|
27
|
27
98780-04535-00
Screw, Flat Head
ＳＣＲＥＷ， ＦＬＡＴ ＨＥＡＤ; |
98780-04535-00 |
— | ||
|
28
|
28
GA7-6593H-00-00
Brkt.fire Extinguisher
．ＢＲＫＴ ＦＩＲＥ ＥＸＴＩＮＧＵＩＳＨＥＲ; |
GA7-6593H-00-00 |
— | ||
|
29
|
29
90119-06902-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06902-00 |
US $4.73 |
||
| replacement | |||||
|
29
|
29
90119-06940-00
Bolt, With Washer
ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06940-00 |
— | ||
|
30
|
30
90119-06901-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06901-00 |
from US $2.20 |
||
