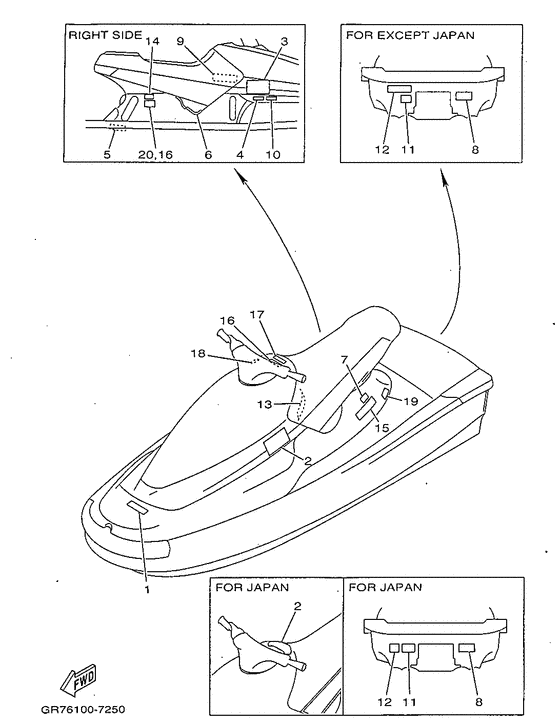

Important labels Diagram Yamaha WB700 700TZ
- Model code
- GR79
- Engine Capacity
- 700
- Year
- 1998
- Sales region
- Europe (General) (999)
- Colour
- Pure White (PURW; 0240)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
GA7-6416B-11-00
Label, Warning
Ur for japan |
GA7-6416B-11-00 |
— | ||
|
01
|
01
GA7-6416B-20-00
Label, Warning
Ur for except japan |
GA7-6416B-20-00 |
— | ||
|
02
|
02
GR7-6416C-10-00
Label, Warning 1
Ur for japan |
GR7-6416C-10-00 |
— | ||
|
02
|
02
GR7-6416C-30-00
Label, Warning 1
Ur for except japan |
GR7-6416C-30-00 |
— | ||
|
03
|
03
GR7-6416C-20-00
Label, Warning 1
For except japan |
GR7-6416C-20-00 |
— | ||
|
04
|
04
GA7-6416F-20-00
Label, Warning 4
Ur for except japan |
GA7-6416F-20-00 |
— | ||
|
04
|
04
GL3-6416F-00-00
Label, Warning 4
Ur for japan |
GL3-6416F-00-00 |
— | ||
|
05
|
05
GA7-6419B-20-00
Label 1
For except japan |
GA7-6419B-20-00 |
— | ||
|
06
|
06
GA7-6419C-00-00 Label,2 |
GA7-6419C-00-00 |
US $4.14 |
||
|
07
|
07
GA7-6419D-10-00
Label,3
Ur for japan |
GA7-6419D-10-00 |
— | ||
|
07
|
07
GA7-6419D-20-00
Label,3
Ur for except japan |
GA7-6419D-20-00 |
— | ||
|
08
|
08
FJ0-6418G-A0-00 Label, CautionUr for except japan |
FJ0-6418G-A0-00 |
US $32.44 |
||
|
08
|
08
GL3-6418G-00-00 Label, CautionUr for japan |
GL3-6418G-00-00 |
US $11.14 |
||
|
09
|
09
GA7-6418B-00-00 Label,cautionUr for except japan |
GA7-6418B-00-00 |
from US $8.08 |
||
|
09
|
09
GL3-6418B-00-00 Label,cautionUr for japan |
GL3-6418B-00-00 |
US $15.17 |
||
|
10
|
10
GA7-6418J-10-00
Label,caution
Ur for japan |
GA7-6418J-10-00 |
— | ||
|
10
|
10
GA7-6418J-21-00
Label,caution
Ur for except japan |
GA7-6418J-21-00 |
— | ||
|
11
|
11
FJ0-64188-00-00 Label, Righting |
FJ0-64188-00-00 |
US $6.14 |
||
| replacement | |||||
|
11
|
11
GK5-6418F-00-00 Label,righting |
GK5-6418F-00-00 |
US $6.14 |
||
|
12
|
12
FJ0-64161-E0-00
Label,warning 5
Ur for except japan |
FJ0-64161-E0-00 |
— | ||
| replacement | |||||
|
12
|
12
GK5-6416G-20-00
Label,warning
Ur for except japan |
GK5-6416G-20-00 |
— | ||
|
12
|
12
GL3-6415G-01-00
Label,warning 5
Ur for japan |
GL3-6415G-01-00 |
— | ||
|
13
|
13
GA7-6418B-20-00
Label,caution
For except japan |
GA7-6418B-20-00 |
— | ||
|
14
|
14
GA7-6418C-11-00
Label, Caution
Ur for japan |
GA7-6418C-11-00 |
— | ||
|
14
|
14
GA7-6418C-20-00
Label, Caution
Ur for except japan |
GA7-6418C-20-00 |
— | ||
|
15
|
15
GA7-6416H-20-00
Label,warning(France)
For except japan |
GA7-6416H-20-00 |
— | ||
|
16
|
16
EU0-64197-00-00 Plate CapacityUr for japan |
EU0-64197-00-00 |
US $11.48 |
||
|
16
|
16
GR7-6415E-10-00
Label, Warning
Ur for except japan |
GR7-6415E-10-00 |
— | ||
| replacement | |||||
|
16
|
16
GM6-6415E-00-00 Label, WarningUr for except japan |
GM6-6415E-00-00 |
US $8.06 |
||
|
17
|
17
GR7-6415E-30-00
Label, Warning
For except japan |
GR7-6415E-30-00 |
— | ||
| replacement | |||||
|
17
|
17
GM6-6415E-20-00
Label, Warning
For except japan |
GM6-6415E-20-00 |
— | ||
|
18
|
18
GR7-6415E-20-00
Label, Warning
For japan |
GR7-6415E-20-00 |
— | ||
|
19
|
19
GR7-6415F-10-00
Label, Warning
Ur for japan |
GR7-6415F-10-00 |
— | ||
|
19
|
19
GR7-6415F-20-00
Label, Warning
Ur for except japan |
GR7-6415F-20-00 |
— | ||
|
20
|
20
GR7-6419E-00-00
Label 4
For except japan |
GR7-6419E-00-00 |
— | ||
