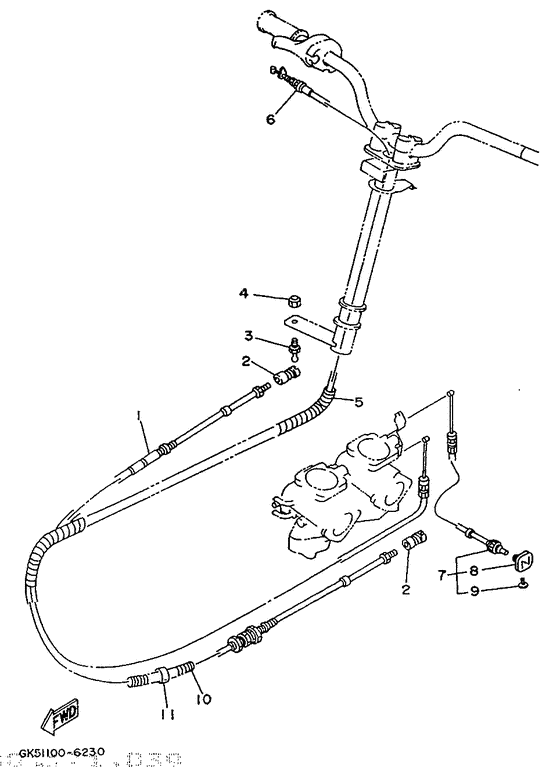

Control cable Diagram Yamaha WB760
- Model code
- GK53
- Engine Capacity
- 760
- Year
- 1996
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
GK5-61480-00-00 Steering Cable Assy |
GK5-61480-00-00 |
US $355.21 |
||
|
02
|
02
GK5-6146F-00-00 Shaft, Joint Ball |
GK5-6146F-00-00 |
from US $50.43 |
||
|
03
|
03
EU0-61461-01-00
Stood, Joint Ball
|
EU0-61461-01-00 |
— | ||
|
04
|
04
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
05
|
05
90699-36100-00 Spiral Tube |
90699-36100-00 |
from US $13.88 |
||
|
06
|
06
GK5-67252-00-00
Cable, Throttle
|
GK5-67252-00-00 |
— | ||
|
07
|
07
GK5-67242-00-00 Cable, Choke |
GK5-67242-00-00 |
from US $109.33 |
||
|
08
|
08
EW2-67243-00-00 Knob, Choke |
EW2-67243-00-00 |
from US $22.25 |
||
|
09
|
09
90149-03930-00 Screw |
90149-03930-00 |
from US $10.48 |
||
|
10
|
10
90699-36020-00 Spiral Tube |
90699-36020-00 |
from US $13.88 |
||
| replacement | |||||
|
10
|
10
90699-36100-00 Spiral Tube |
90699-36100-00 |
from US $13.88 |
||
|
11
|
11
GK5-67578-00-00
Packing, Hose 2
|
GK5-67578-00-00 |
— | ||
