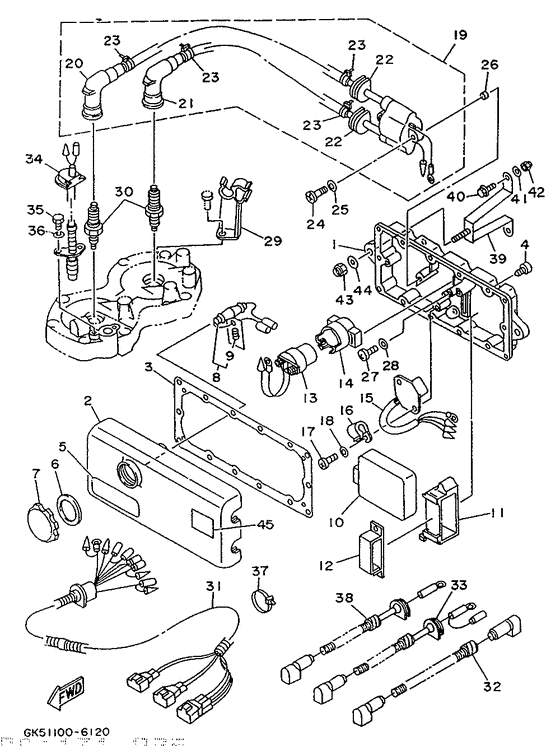

Electrical 1 Diagram Yamaha WB760
- Model code
- GK53
- Engine Capacity
- 760
- Year
- 1996
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
64X-8552A-00-5B Housing |
64X-8552A-00-5B |
US $108.22 |
||
| replacement | |||||
|
01
|
01
64X-8552A-01-8P Housing |
64X-8552A-01-8P |
US $108.22 |
||
|
02
|
02
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
03
|
03
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
04
|
04
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
04
|
04
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
05
|
05
63N-83623-00-00 Mark 3Ur japan |
63N-83623-00-00 |
US $6.25 |
||
|
05
|
05
6R7-83623-40-00 Mark 3Ur english |
6R7-83623-40-00 |
from US $7.23 |
||
|
05
|
05
6R7-83623-50-00
Mark 3
Ur franch |
6R7-83623-50-00 |
— | ||
|
06
|
06
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
07
|
07
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
08
|
08
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
| replacement | |||||
|
08
|
08
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
09
|
09
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
09
|
09
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
10
|
10
64X-85540-00-00 C.d.i. Unit Assy |
64X-85540-00-00 |
from US $500.69 |
||
| replacement | |||||
|
10
|
10
64X-85540-01-00 C.d.i. Unit Assembly |
64X-85540-01-00 |
from US $528.50 |
||
|
11
|
11
64X-85546-00-00 Band |
64X-85546-00-00 |
from US $13.95 |
||
|
12
|
12
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
13
|
13
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
14
|
14
6M6-81952-01-00
Holder, Relay
|
6M6-81952-01-00 |
— | ||
|
15
|
15
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
16
|
16
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
17
|
17
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
64X-85570-00-00 Ignition Coil Assy |
64X-85570-00-00 |
from US $331.61 |
||
| replacement | |||||
|
19
|
19
64X-85570-01-00 Ignition Coil Assy |
64X-85570-01-00 |
from US $404.98 |
||
|
20
|
20
62E-82371-10-00 Cap, Plug |
62E-82371-10-00 |
from US $15.86 |
||
|
21
|
21
62E-82371-10-00 Cap, Plug |
62E-82371-10-00 |
from US $15.86 |
||
|
22
|
22
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
23
|
23
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
23
|
23
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
23
|
23
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
24
|
24
978-80060-30-00
Screw, Pan Head
|
978-80060-30-00 |
— | ||
| replacement | |||||
|
24
|
24
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
90387-06M30-00 Collar |
90387-06M30-00 |
from US $7.51 |
||
|
27
|
27
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
29
|
29
62T-82361-00-00 Clamp, Cord |
62T-82361-00-00 |
from US $9.07 |
||
|
30
|
30
94702-00195-00 Br8Hs Ngk Screw Top |
94702-00195-00 |
from US $7.08 |
||
| replacements | |||||
|
30
|
30
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK) |
BR8-HS000-00-00 |
US $28.96 |
||
|
30
|
30
94701-00195-00 Plug,spark(Ngk Br8Hs) |
94701-00195-00 |
US $7.76 |
||
|
30
|
30
NGK-BR8HS-00-00 Br8Hs Ngk Screw Top |
NGK-BR8HS-00-00 |
US $23.40 |
||
|
31
|
31
63N-82553-00-00 Extension, Wire Lead |
63N-82553-00-00 |
from US $345.40 |
||
|
32
|
32
62T-82117-01-00 Wire, Lead |
62T-82117-01-00 |
US $84.29 |
||
|
33
|
33
62T-82117-11-00 Wire, Lead |
62T-82117-11-00 |
US $71.68 |
||
|
34
|
34
64X-82560-00-00
Thermo Switch Assembly
|
64X-82560-00-00 |
— | ||
|
35
|
35
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
35
|
35
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
36
|
36
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
37
|
37
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
37
|
37
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
38
|
38
6M6-82117-21-00 Wire, Lead |
6M6-82117-21-00 |
from US $32.90 |
||
|
39
|
39
GK5-6815D-00-00
Bracket,electric Box
|
GK5-6815D-00-00 |
— | ||
|
40
|
40
90105-06903-00 Bolt, Flange |
90105-06903-00 |
from US $1.98 |
||
|
41
|
41
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
42
|
42
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
43
|
43
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
44
|
44
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
45
|
45
4GB-2155A-00-00
Mark, Ce
For franch |
4GB-2155A-00-00 |
— | ||
