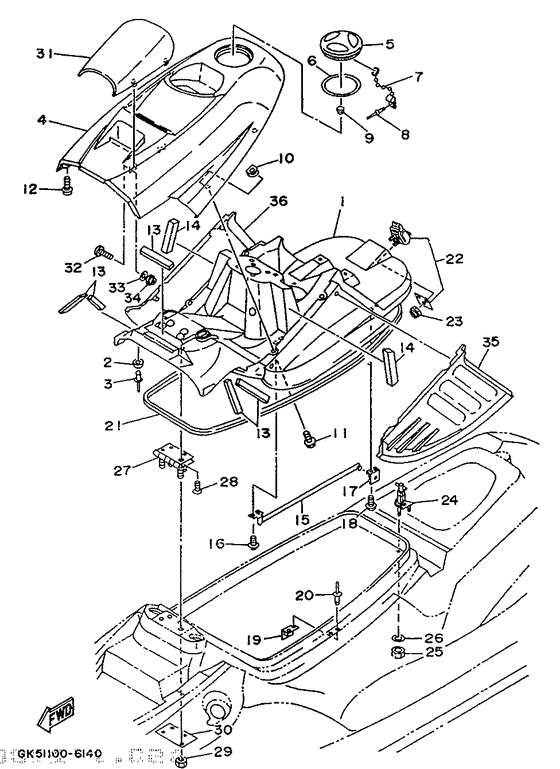

Engine hatch 1 Diagram Yamaha WB760
- Model code
- GK53
- Engine Capacity
- 760
- Year
- 1996
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
GK5-6516A-00-00 Engine Hatch Comp |
GK5-6516A-00-00 |
US $1,272.51 |
||
| replacement | |||||
|
01
|
01
GK5-6516A-10-00 Engine Hatch Comp |
GK5-6516A-10-00 |
US $1,272.51 |
||
|
02
|
02
GA7-63768-00-00 Cushion,rubber |
GA7-63768-00-00 |
US $6.03 |
||
|
03
|
03
90267-48931-00 Rivet, Blind |
90267-48931-00 |
from US $3.28 |
||
| replacements | |||||
|
03
|
03
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
03
|
03
90267-489U9-00 Rivet, Blind |
90267-489U9-00 |
from US $3.83 |
||
|
04
|
04
GK5-6516N-00-00 Cover,engine Hatch |
GK5-6516N-00-00 |
US $665.75 |
||
|
05
|
05
GK5-6591C-00-00
Cap,case
|
GK5-6591C-00-00 |
— | ||
| replacement | |||||
|
05
|
05
GK5-6591C-01-00
Cap,case
|
GK5-6591C-01-00 |
— | ||
|
06
|
06
GK5-6591D-00-00
Packing, Case
|
GK5-6591D-00-00 |
— | ||
|
07
|
07
GK5-64735-00-00
Ball,chain
|
GK5-64735-00-00 |
— | ||
| replacement | |||||
|
07
|
07
GK5-64735-09-00
Chain, Ball
|
GK5-64735-09-00 |
— | ||
|
08
|
08
90267-40936-00 Rivet, Blind |
90267-40936-00 |
from US $2.13 |
||
|
09
|
09
90338-12081-00 Plug |
90338-12081-00 |
from US $2.57 |
||
| replacement | |||||
|
09
|
09
90605-50201-00 Plug(Eu0) |
90605-50201-00 |
from US $3.54 |
||
|
10
|
10
90183-06902-00 Nut, Spring |
90183-06902-00 |
from US $6.23 |
||
|
11
|
11
90119-06947-00 Bolt, With Washer |
90119-06947-00 |
US $2.74 |
||
|
12
|
12
90149-06906-00 Screw, Bind |
90149-06906-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
98980-06014-00 Screw, Bind |
98980-06014-00 |
from US $2.13 |
||
|
13
|
13
GK5-6266E-00-00
Packing,6
|
GK5-6266E-00-00 |
— | ||
|
14
|
14
GK5-6266G-00-00
Packing,8
|
GK5-6266G-00-00 |
— | ||
|
15
|
15
GH1-62891-01-00 Support, Hatch |
GH1-62891-01-00 |
US $97.61 |
||
|
16
|
16
90159-06901-00 Screw, With Washer |
90159-06901-00 |
from US $2.55 |
||
|
17
|
17
GK5-62892-00-00 Fix, Plate |
GK5-62892-00-00 |
from US $29.34 |
||
|
18
|
18
90159-06901-00 Screw, With Washer |
90159-06901-00 |
from US $2.55 |
||
|
19
|
19
FN8-62884-00-00 Bracket, Hatch Support |
FN8-62884-00-00 |
US $17.59 |
||
|
20
|
20
90267-48940-00 Rivet, Blind |
90267-48940-00 |
from US $3.14 |
||
|
21
|
21
GK5-62664-00-00
Packing
|
GK5-62664-00-00 |
— | ||
| replacement | |||||
|
21
|
21
GK5-62664-01-00
Packing
|
GK5-62664-01-00 |
— | ||
|
22
|
22
FJ0-62840-02-00
Hatch Lock Assembly
|
FJ0-62840-02-00 |
— | ||
|
23
|
23
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
24
|
24
GK5-62843-00-00
Hook, Hatch Lock
|
GK5-62843-00-00 |
— | ||
|
25
|
25
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
26
|
26
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
27
|
27
GK5-6517G-00-00 Hinge, Hatch |
GK5-6517G-00-00 |
US $138.71 |
||
| replacement | |||||
|
27
|
27
GK5-6517G-01-00
Hinge, Hatch
|
GK5-6517G-01-00 |
— | ||
|
28
|
28
98780-06014-00 Screw Flat Head |
98780-06014-00 |
from US $3.12 |
||
|
29
|
29
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
30
|
30
GK5-65193-00-00
Plate
|
GK5-65193-00-00 |
— | ||
|
31
|
31
GK5-6515N-00-00 Visor |
GK5-6515N-00-00 |
from US $261.12 |
||
|
32
|
32
90149-05945-00
Screw
|
90149-05945-00 |
— | ||
| replacement | |||||
|
32
|
32
90149-05969-00 Screw |
90149-05969-00 |
US $2.16 |
||
|
33
|
33
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
34
|
34
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
35
|
35
GK5-6353C-00-00
Pad, Knee 1
|
GK5-6353C-00-00 |
— | ||
|
36
|
36
GK5-6353D-00-00
Pad, Knee 2
|
GK5-6353D-00-00 |
— | ||
