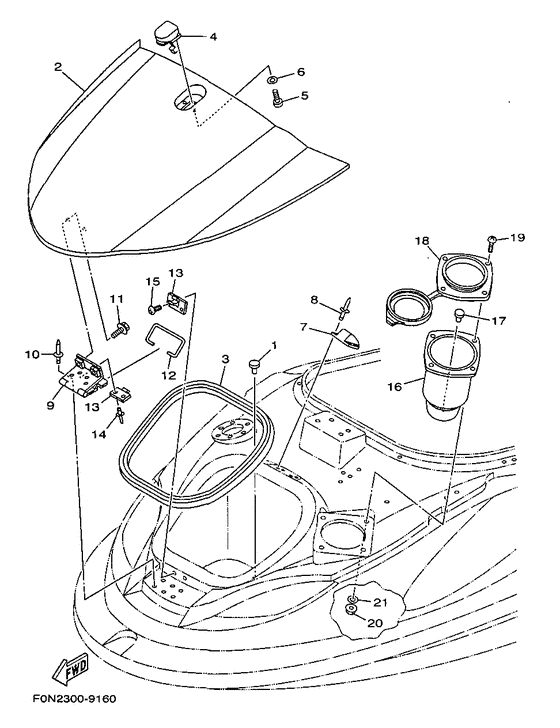

Engine hatch 2 Diagram Yamaha WB800
- Model code
- F0N2
- Engine Capacity
- 800
- Year
- 1999
- Sales region
- Europe (General) (999)
- Colour
- White Coat 2 (WC2; GA3C)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90605-50201-00 Plug(Eu0) |
90605-50201-00 |
from US $3.54 |
||
|
02
|
02
F0N-6476A-00-5D
Lid,locker Bow
|
F0N-6476A-00-5D |
— | ||
| replacements | |||||
|
02
|
02
F0N-6476A-09-5D
Lid,locker Bow
|
F0N-6476A-09-5D |
— | ||
|
02
|
02
F0N-6476A-01-5D
Lid,locker Bow
|
F0N-6476A-01-5D |
— | ||
|
03
|
03
F0N-6266D-00-00
Packing 5
|
F0N-6266D-00-00 |
— | ||
|
04
|
04
GP7-6517C-00-00 Lock, Lid |
GP7-6517C-00-00 |
from US $74.43 |
||
| replacement | |||||
|
04
|
04
F1K-6517C-00-00 Lock, Lid |
F1K-6517C-00-00 |
from US $79.99 |
||
|
05
|
05
90149-05918-00 Screw |
90149-05918-00 |
US $2.13 |
||
| replacement | |||||
|
05
|
05
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
06
|
06
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
07
|
07
GP7-6517F-10-00 Keep, Lock |
GP7-6517F-10-00 |
from US $14.26 |
||
|
08
|
08
90267-48932-00 Rivet, Blind (Ad610Abs/llm10P) |
90267-48932-00 |
from US $1.28 |
||
|
09
|
09
F0N-6517D-00-00 Hinge, Lid |
F0N-6517D-00-00 |
US $139.54 |
||
| replacement | |||||
|
09
|
09
F0N-6517D-01-00 Hinge, Lid |
F0N-6517D-01-00 |
US $139.54 |
||
|
10
|
10
90267-48940-00 Rivet, Blind |
90267-48940-00 |
from US $3.14 |
||
|
11
|
11
90119-06908-00 Bolt With Washer (Eu0) |
90119-06908-00 |
from US $2.27 |
||
|
12
|
12
F0N-6517P-00-00
Support, Lid
|
F0N-6517P-00-00 |
— | ||
|
13
|
13
F0N-6517U-00-00 Holder, Lid Support |
F0N-6517U-00-00 |
US $20.54 |
||
|
14
|
14
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
15
|
15
97780-50114-00 Screw, Tapping |
97780-50114-00 |
US $1.84 |
||
| replacement | |||||
|
15
|
15
977-80505-14-00 Screw, Tapping |
977-80505-14-00 |
from US $1.84 |
||
|
16
|
16
FJ0-65911-01-00
Case 1
|
FJ0-65911-01-00 |
— | ||
|
17
|
17
90605-50201-00 Plug(Eu0) |
90605-50201-00 |
from US $3.54 |
||
|
18
|
18
F0N-6519C-00-00
Cap, case
|
F0N-6519C-00-00 |
— | ||
|
19
|
19
90149-05960-00 Screw |
90149-05960-00 |
from US $1.98 |
||
|
20
|
20
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
21
|
21
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
