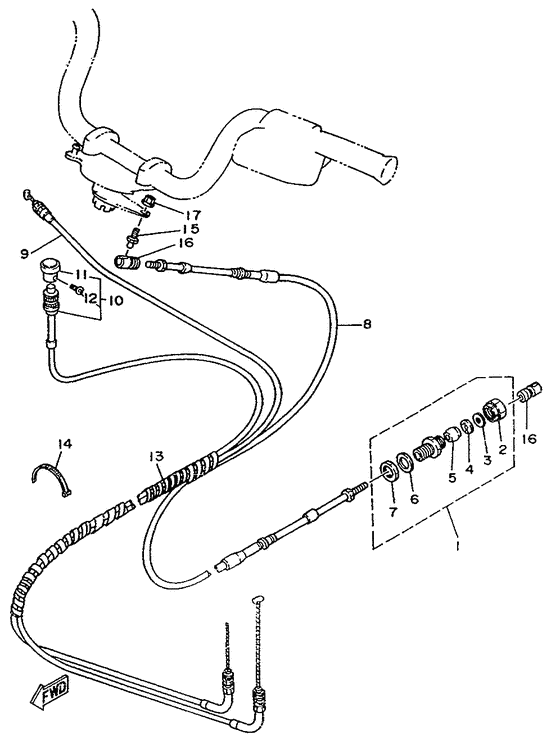

Control cable Diagram Yamaha WJ500
- Model code
- EW3
- Engine Capacity
- 500
- Year
- 1990
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
EU0-67267-00-00 Connector,cable |
EU0-67267-00-00 |
from US $38.96 |
||
|
02
|
02
EU0-62694-00-00 Cap |
EU0-62694-00-00 |
from US $8.19 |
||
|
03
|
03
EU0-61446-00-00 Washer |
EU0-61446-00-00 |
from US $5.97 |
||
|
04
|
04
EU0-61486-00-00 Stopper |
EU0-61486-00-00 |
from US $3.20 |
||
|
05
|
05
EU0-61435-00-00 Seal, Pipe 30 |
EU0-61435-00-00 |
from US $5.41 |
||
|
06
|
06
EU0-61438-00-00 Packing |
EU0-61438-00-00 |
from US $4.04 |
||
|
07
|
07
EU0-62241-30-00 Nut, Drain 1 |
EU0-62241-30-00 |
from US $10.77 |
||
|
08
|
08
EW3-61481-02-00 Cable, Steering (Ew3-61481-01) |
EW3-61481-02-00 |
from US $83.76 |
||
|
09
|
09
EW3-67252-02-00 Cable, Throttle (Ew3-67252-00) |
EW3-67252-02-00 |
US $137.21 |
||
|
10
|
10
EW3-67242-02-00 Cable, Choke (Ew3-67242-00) |
EW3-67242-02-00 |
US $130.03 |
||
| replacement | |||||
|
10
|
10
EW3-67242-03-00 Cable, Choke (Ew3-67242-00) |
EW3-67242-03-00 |
US $130.03 |
||
|
11
|
11
EU0-67243-00-00 Knob |
EU0-67243-00-00 |
from US $4.11 |
||
|
12
|
12
90149-03930-00 Screw |
90149-03930-00 |
from US $10.48 |
||
|
13
|
13
90699-36100-00 Spiral Tube |
90699-36100-00 |
from US $13.88 |
||
|
14
|
14
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
14
|
14
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
15
|
15
EU0-61461-00-00 Stud, Joint Ball |
EU0-61461-00-00 |
from US $26.07 |
||
| replacements | |||||
|
15
|
15
EU0-61461-01-00
Stood, Joint Ball
|
EU0-61461-01-00 |
— | ||
|
15
|
15
EU0-61461-02-00 Stud, Joint Ball |
EU0-61461-02-00 |
from US $18.20 |
||
|
15
|
15
EU0-U1461-02-00
Stud, Joint Ball
|
EU0-U1461-02-00 |
— | ||
|
15
|
15
EU0-U1461-10-00 SHAFT, JOINT BALL |
EU0-U1461-10-00 |
from US $27.20 |
||
|
16
|
16
EU0-61461-30-00 Shaft,joint Ball |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
16
|
16
F0V-U1461-00-00 Stud, Joint Ball |
F0V-U1461-00-00 |
from US $51.53 |
||
|
17
|
17
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
