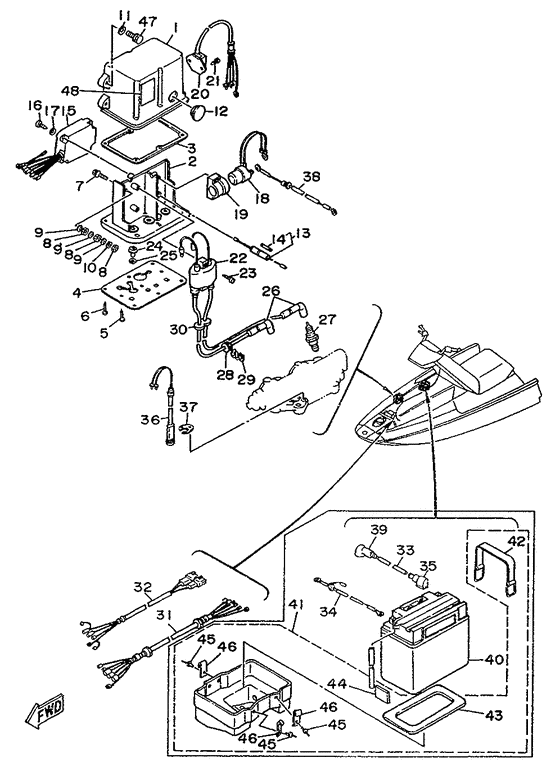

Electrical Diagram Yamaha WJ500
- Model code
- EW3
- Engine Capacity
- 500
- Year
- 1990
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6K8-8552A-00-00 Housing |
6K8-8552A-00-00 |
US $80.78 |
||
|
02
|
02
6K8-8552E-00-00
Cover Case
|
6K8-8552E-00-00 |
— | ||
|
03
|
03
6K8-81921-00-00 Gasket, Terminal |
6K8-81921-00-00 |
from US $21.11 |
||
|
04
|
04
6K8-85599-00-00
Cover
|
6K8-85599-00-00 |
— | ||
|
05
|
05
97780-60535-00
Screw, Tapping
|
97780-60535-00 |
— | ||
|
06
|
06
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $2.02 |
||
|
07
|
07
90119-06M34-00 Bolt, With Washer |
90119-06M34-00 |
from US $2.13 |
||
|
08
|
08
95313-06700-00 Nut |
95313-06700-00 |
US $4.21 |
||
|
09
|
09
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
10
|
10
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
90201-08095-00 Washer, Plate |
90201-08095-00 |
from US $3.56 |
||
| replacement | |||||
|
11
|
11
90201-08455-00 Washer, Plate |
90201-08455-00 |
from US $4.11 |
||
|
12
|
12
647-45151-01-00 Cover, Upper Casing |
647-45151-01-00 |
US $4.96 |
||
|
13
|
13
6K8-82150-00-00 Fuse Holder Assy |
6K8-82150-00-00 |
from US $24.37 |
||
| replacements | |||||
|
13
|
13
6K8-82150-01-00 Fuse Holder Assy |
6K8-82150-01-00 |
from US $26.78 |
||
|
13
|
13
6K8-82150-02-00 FUSE HOLDER ASSY |
6K8-82150-02-00 |
from US $26.78 |
||
|
14
|
14
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
14
|
14
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
15
|
15
6K8-85540-11-00 Cdi Unit Assembly |
6K8-85540-11-00 |
US $554.36 |
||
|
16
|
16
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
16
|
16
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
19
|
19
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
20
|
20
6K8-81960-AO-00
Rectifier & Regulator Assy
|
6K8-81960-AO-00 |
— | ||
|
21
|
21
97780-60512-00
Screw, Tapping(6K8)
|
97780-60512-00 |
— | ||
|
22
|
22
6K8-85570-10-00 Ignition Coil Asy |
6K8-85570-10-00 |
from US $186.45 |
||
| replacement | |||||
|
22
|
22
6K8-85570-19-00 Ignition Coil |
6K8-85570-19-00 |
from US $186.45 |
||
|
23
|
23
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
23
|
23
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
24
|
24
90480-18M21-00
Grommet
|
90480-18M21-00 |
— | ||
|
25
|
25
90387-18M00-00 Collar |
90387-18M00-00 |
US $4.77 |
||
|
26
|
26
6K8-82370-10-00 Plug Cap Assy |
6K8-82370-10-00 |
US $102.79 |
||
| replacement | |||||
|
26
|
26
63M-82370-00-00 Plug Cap Assembly |
63M-82370-00-00 |
from US $102.79 |
||
|
27
|
27
947-02002-71-00
Plug, Spark (Ngk Br7Hs-10)
|
947-02002-71-00 |
— | ||
| replacement | |||||
|
27
|
27
BR7-HS000-00-00 Plug, Spark (10 in pack) |
BR7-HS000-00-00 |
US $19.60 |
||
|
28
|
28
90480-25M18-00 Grommet |
90480-25M18-00 |
from US $5.81 |
||
|
29
|
29
90464-07M05-00 Clamp |
90464-07M05-00 |
from US $5.09 |
||
|
30
|
30
90480-25M18-00 Grommet |
90480-25M18-00 |
from US $5.81 |
||
|
31
|
31
6K8-82553-01-00
Extension, Wire Lead
|
6K8-82553-01-00 |
— | ||
| replacement | |||||
|
31
|
31
6K8-82553-02-00
Extension Wire Lead
|
6K8-82553-02-00 |
— | ||
|
33
|
33
6K8-82117-31-00
Wire, Lead
|
6K8-82117-31-00 |
— | ||
| replacement | |||||
|
33
|
33
6K8-82117-32-00
Wire, Lead
|
6K8-82117-32-00 |
— | ||
|
34
|
34
6K8-82117-10-00 Wire, Lead |
6K8-82117-10-00 |
US $40.25 |
||
| replacement | |||||
|
34
|
34
6K8-82117-11-00 Wire, Lead |
6K8-82117-11-00 |
US $40.25 |
||
|
35
|
35
6K8-82119-10-00 Cover, Lead Wire |
6K8-82119-10-00 |
US $10.48 |
||
|
36
|
36
6K8-82560-00-00
Thermo Switch Assembly
|
6K8-82560-00-00 |
— | ||
|
37
|
37
6K8-82588-00-00
Plate
|
6K8-82588-00-00 |
— | ||
|
38
|
38
6K8-82117-20-00 Wire, Lead |
6K8-82117-20-00 |
US $40.25 |
||
| replacement | |||||
|
38
|
38
6K8-82117-11-00 Wire, Lead |
6K8-82117-11-00 |
US $40.25 |
||
|
39
|
39
6K8-82119-00-00
Cover, Lead Wire
|
6K8-82119-00-00 |
— | ||
|
40
|
40
EU0-82110-78-00
Battery (Fb16Cl-B)
|
EU0-82110-78-00 |
— | ||
| replacements | |||||
|
40
|
40
BTY-CB16C-LB-00
Battery cb16cl-b
|
BTY-CB16C-LB-00 |
— | ||
|
40
|
40
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
|
YB1-6CLB0-00-00 |
— | ||
|
41
|
41
EW3-68211-09-00
Battery Case
|
EW3-68211-09-00 |
— | ||
|
42
|
42
EU0-68218-04-00 Belt, Battery |
EU0-68218-04-00 |
from US $14.73 |
||
|
43
|
43
EU0-68221-00-00 Pad, Battery |
EU0-68221-00-00 |
from US $21.54 |
||
| replacement | |||||
|
43
|
43
F1S-U8221-00-00 Pad, Battery |
F1S-U8221-00-00 |
from US $9 |
||
|
44
|
44
EU0-68221-30-00 Pad, Battery |
EU0-68221-30-00 |
from US $21.54 |
||
|
45
|
45
90267-48931-00 Rivet, Blind |
90267-48931-00 |
from US $3.28 |
||
| replacements | |||||
|
45
|
45
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
45
|
45
90267-489U9-00 Rivet, Blind |
90267-489U9-00 |
from US $3.83 |
||
|
46
|
46
EW3-65772-30-00
Hook A
|
EW3-65772-30-00 |
— | ||
|
47
|
47
90119-06902-00 Bolt, With Washer |
90119-06902-00 |
US $4.73 |
||
| replacement | |||||
|
47
|
47
90119-06940-00
Bolt, With Washer
|
90119-06940-00 |
— | ||
|
48
|
48
6K8-83621-00-00
Mark 1
|
6K8-83621-00-00 |
— | ||
