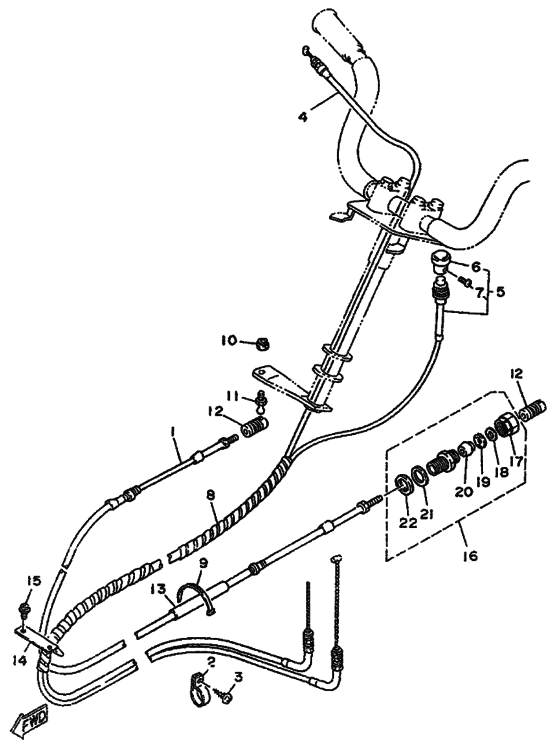

Control cable Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-61481-03-00 Cable, Steering |
EU0-61481-03-00 |
US $202.64 |
||
|
2
|
2
90600-91728-00 Clamp |
90600-91728-00 |
from US $2.08 |
||
|
3
|
3
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.52 |
||
|
4
|
4
EU0-67252-01-00 Cable, Throttle |
EU0-67252-01-00 |
from US $150.28 |
||
| replacements | |||||
|
4
|
4
EU0-67252-02-00 Cable, Throttle 1 |
EU0-67252-02-00 |
from US $161.98 |
||
|
4
|
4
EU0-U7252-01-00 Cable, Throttle 1 |
EU0-U7252-01-00 |
from US $170.08 |
||
|
5
|
5
EU0-67242-02-00 Cable Choke |
EU0-67242-02-00 |
US $126.77 |
||
| replacements | |||||
|
5
|
5
EU0-67242-03-00
Cable,choke
|
EU0-67242-03-00 |
— | ||
|
5
|
5
EU0-U7242-01-00 Cable Choke |
EU0-U7242-01-00 |
US $125.26 |
||
|
6
|
6
EU0-67243-00-00 Knob |
EU0-67243-00-00 |
from US $4.11 |
||
|
7
|
7
90149-03930-00 Screw |
90149-03930-00 |
from US $10.48 |
||
|
8
|
8
90699-36100-00 Spiral Tube |
90699-36100-00 |
from US $13.88 |
||
|
9
|
9
90601-20005-00 Band |
90601-20005-00 |
from US $1.98 |
||
|
10
|
10
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
11
|
11
EU0-61461-00-00 Stud, Joint Ball |
EU0-61461-00-00 |
from US $26.07 |
||
| replacements | |||||
|
11
|
11
EU0-61461-01-00
Stood, Joint Ball
|
EU0-61461-01-00 |
— | ||
|
11
|
11
EU0-61461-02-00 Stud, Joint Ball |
EU0-61461-02-00 |
from US $18.20 |
||
|
11
|
11
EU0-U1461-02-00
Stud, Joint Ball
|
EU0-U1461-02-00 |
— | ||
|
11
|
11
EU0-U1461-10-00 SHAFT, JOINT BALL |
EU0-U1461-10-00 |
from US $27.20 |
||
|
12
|
12
EU0-61461-30-00 Shaft,joint Ball |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
12
|
12
F0V-U1461-00-00 Stud, Joint Ball |
F0V-U1461-00-00 |
from US $51.53 |
||
|
13
|
13
EU0-61474-00-00 Pipe Sleeve |
EU0-61474-00-00 |
US $5.83 |
||
|
14
|
14
EU0-61557-01-00 Guide, Cable |
EU0-61557-01-00 |
US $30.19 |
||
|
15
|
15
97680-04316-00
Screw, W/washer
|
97680-04316-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
EU0-67267-00-00 Connector,cable |
EU0-67267-00-00 |
from US $38.96 |
||
|
17
|
17
EU0-62694-00-00 Cap |
EU0-62694-00-00 |
from US $8.19 |
||
|
18
|
18
EU0-61446-00-00 Washer |
EU0-61446-00-00 |
from US $5.97 |
||
|
19
|
19
EU0-61486-00-00 Stopper |
EU0-61486-00-00 |
from US $3.20 |
||
|
20
|
20
EU0-61435-00-00 Seal, Pipe 3030 |
EU0-61435-00-00 |
from US $5.41 |
||
|
21
|
21
EU0-61438-00-00 Packing |
EU0-61438-00-00 |
from US $4.04 |
||
|
22
|
22
EU0-62241-30-00 Nut, Drain 1 |
EU0-62241-30-00 |
from US $10.77 |
||
