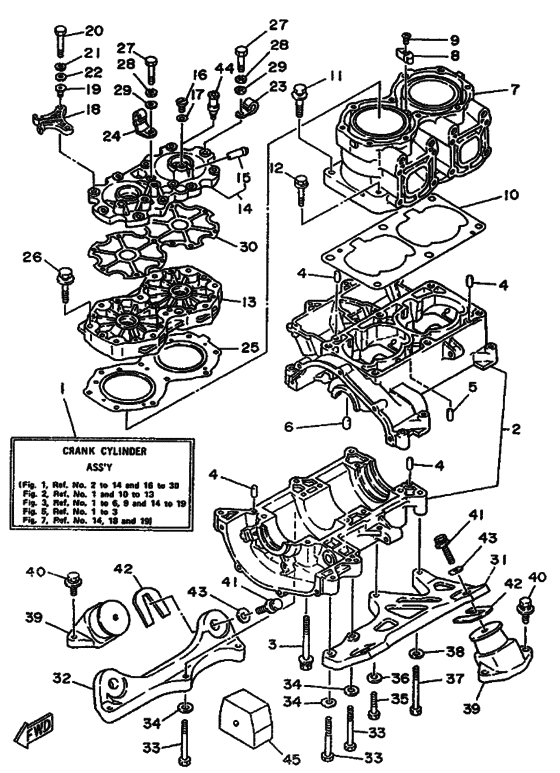

Cylinder & crankcase Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6M6-W0090-00-EK Crank Cylinder Assy |
6M6-W0090-00-EK |
US $4,397.31 |
||
| replacement | |||||
|
1
|
1
6M6-W0090-06-8P Crank Cylinder Assy |
6M6-W0090-06-8P |
US $4,408.18 |
||
|
2
|
2
6M6-15100-00-94 Crankcase Assembly |
6M6-15100-00-94 |
US $1,211.53 |
||
| replacement | |||||
|
2
|
2
6M6-15100-00-8S Crankcase Assy |
6M6-15100-00-8S |
US $1,193.74 |
||
|
3
|
3
90119-08M55-00 Bolt, With Washer |
90119-08M55-00 |
from US $4.72 |
||
|
4
|
4
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
5
|
5
93603-10049-00 Pin, Dowel |
93603-10049-00 |
from US $2.70 |
||
|
6
|
6
93604-07141-00 Pin, Dowel |
93604-07141-00 |
from US $2.36 |
||
|
7
|
7
6M6-11311-00-94 Cylinder 1 |
6M6-11311-00-94 |
US $791.73 |
||
| replacement | |||||
|
7
|
7
6M6-11311-01-8S Cylinder 1 |
6M6-11311-01-8S |
US $791.73 |
||
|
8
|
8
6ES-11325-00-00
Anode
|
6ES-11325-00-00 |
— | ||
|
9
|
9
98680-04016-00 Screw, Flat Head |
98680-04016-00 |
from US $1.39 |
||
| replacements | |||||
|
9
|
9
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.70 |
||
|
9
|
9
98780-04016-00 Screw, Flat Head (Fe4) |
98780-04016-00 |
from US $2.13 |
||
|
10
|
10
6M6-11351-00-00 Gasket, Cylinder |
6M6-11351-00-00 |
from US $15.98 |
||
| replacement | |||||
|
10
|
10
6M6-11351-A2-00 Gasket, Cylinder |
6M6-11351-A2-00 |
from US $11.46 |
||
|
11
|
11
90119-10M56-00 Bolt, With Washer |
90119-10M56-00 |
from US $3.97 |
||
|
12
|
12
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $6.52 |
||
|
13
|
13
6M6-11111-00-94 Head, Cylinder 1 |
6M6-11111-00-94 |
from US $265.27 |
||
| replacement | |||||
|
13
|
13
6M6-11111-00-8S GASKET,CYL HEAD 1 |
6M6-11111-00-8S |
from US $265.27 |
||
|
14
|
14
6M6-11191-00-9M Cover, Cylinder Head |
6M6-11191-00-9M |
US $126.61 |
||
| replacement | |||||
|
14
|
14
6M6-11191-00-8S element |
6M6-11191-00-8S |
US $126.61 |
||
|
15
|
15
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
16
|
16
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
16
|
16
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
17
|
17
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
17
|
17
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
18
|
18
90464-08M30-00 Clamp |
90464-08M30-00 |
US $10.58 |
||
|
19
|
19
90387-06M05-00 Collar |
90387-06M05-00 |
from US $5.97 |
||
|
20
|
20
97313-06040-00 Bolt (682) |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
21
|
21
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
23
|
23
90464-07M33-00 Clamp |
90464-07M33-00 |
US $8.57 |
||
|
24
|
24
90465-06M35-00 Clamp |
90465-06M35-00 |
US $16.09 |
||
|
25
|
25
6M6-11181-00-00 Gasket, Cylinder Head 1 |
6M6-11181-00-00 |
from US $40.01 |
||
| replacement | |||||
|
25
|
25
6M6-11181-A1-00 Gasket, Cylinder Head 1 |
6M6-11181-A1-00 |
US $76.54 |
||
|
26
|
26
901-1908M-19-00
Bolt, With Washer
|
901-1908M-19-00 |
— | ||
| replacement | |||||
|
26
|
26
90119-08019-00 Bolt, With Washer |
90119-08019-00 |
from US $4.11 |
||
|
27
|
27
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
27
|
27
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
28
|
28
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
30
|
30
6M6-11193-00-00 Gasket, Head Cover 1 |
6M6-11193-00-00 |
from US $11.32 |
||
| replacement | |||||
|
30
|
30
6M6-11193-A1-00 Gasket, Head Cover 1 |
6M6-11193-A1-00 |
from US $17.80 |
||
|
31
|
31
6M6-21415-00-9M Bracket, Front Upper 1 |
6M6-21415-00-9M |
US $130.45 |
||
| replacement | |||||
|
31
|
31
6M6-21415-00-94 Bracket, Frontt Upper 1 |
6M6-21415-00-94 |
US $130.45 |
||
|
32
|
32
6M6-21425-00-9M
Bracket, Rear Upper 1
|
6M6-21425-00-9M |
— | ||
| replacement | |||||
|
32
|
32
6M6-21425-01-94 FUEL PUMP ASY |
6M6-21425-01-94 |
US $94.66 |
||
|
33
|
33
97313-10070-00 Bolt |
97313-10070-00 |
from US $9 |
||
| replacements | |||||
|
33
|
33
90119-10M23-00 Bolt, With Washer |
90119-10M23-00 |
from US $5.40 |
||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
35
|
35
97313-10035-00 Bolt |
97313-10035-00 |
from US $5.95 |
||
| replacements | |||||
|
35
|
35
90119-10M00-00 Bolt, With Washer(63N) |
90119-10M00-00 |
from US $6.66 |
||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
37
|
37
97313-10080-00 Bolt |
97313-10080-00 |
from US $6.94 |
||
| replacements | |||||
|
37
|
37
90119-10M03-00 Bolt, With Washer(63N) |
90119-10M03-00 |
from US $7.63 |
||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
39
|
39
6M6-44517-00-5B Mount Rubber |
6M6-44517-00-5B |
from US $50.01 |
||
| replacement | |||||
|
39
|
39
6M6-44517-A2-94 Mount Rubber |
6M6-44517-A2-94 |
from US $50.01 |
||
|
40
|
40
90119-08038-00 Bolt, With Washer |
90119-08038-00 |
from US $2.36 |
||
|
41
|
41
90119-08904-00 Bolt With Washer (Eu0) |
90119-08904-00 |
from US $5.38 |
||
|
42
|
42
EOU-67354-00-01
Shim
UR |
EOU-67354-00-01 |
— | ||
|
42
|
42
EOU-67354-00-03
Shim
UR |
EOU-67354-00-03 |
— | ||
|
42
|
42
EOU-67354-00-05
Shim
UR |
EOU-67354-00-05 |
— | ||
|
42
|
42
EOU-67354-00-10
Shim
UR |
EOU-67354-00-10 |
— | ||
|
42
|
42
EOU-67354-00-20
Shim
UR |
EOU-67354-00-20 |
— | ||
|
43
|
43
EOU-67324-00-00
Plate
|
EOU-67324-00-00 |
— | ||
|
44
|
44
6E0-28193-00-00 Plug, Water Check |
6E0-28193-00-00 |
from US $9.35 |
||
|
45
|
45
6M6-44532-00-00
Stopper, Upper Mount Rubber
|
6M6-44532-00-00 |
— | ||
