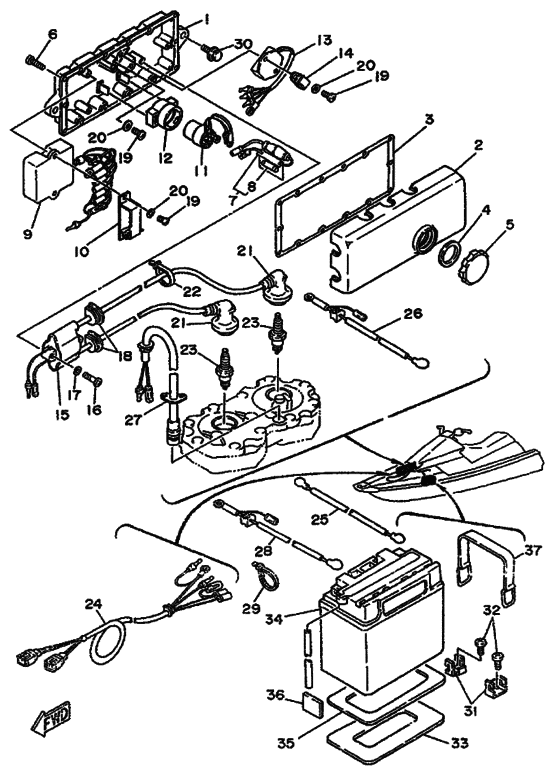

Electrical 1 Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6M6-8552A-00-98 Housing |
6M6-8552A-00-98 |
from US $116.47 |
||
| replacement | |||||
|
1
|
1
6M6-8552A-01-8P Housing |
6M6-8552A-01-8P |
from US $116.47 |
||
|
2
|
2
6M6-8552E-00-00 Cover, Case |
6M6-8552E-00-00 |
from US $49.18 |
||
| replacement | |||||
|
2
|
2
6M6-8552E-01-00 Cover, Case |
6M6-8552E-01-00 |
from US $49.18 |
||
|
3
|
3
6M6-81921-00-00 Gasket, Terminal |
6M6-81921-00-00 |
from US $25.60 |
||
|
4
|
4
6M6-81844-00-00 Gasket |
6M6-81844-00-00 |
from US $8.42 |
||
|
5
|
5
6M6-8132W-00-00 Cap |
6M6-8132W-00-00 |
from US $13.14 |
||
|
6
|
6
97780-60525-00 Screw,tapping |
97780-60525-00 |
US $1.98 |
||
| replacement | |||||
|
6
|
6
97780-60625-00 Screw, Tapping(65J) |
97780-60625-00 |
from US $2.22 |
||
|
7
|
7
6M6-82150-00-00
Fuse Holder Assy
|
6M6-82150-00-00 |
— | ||
|
8
|
8
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
8
|
8
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $2.02 |
||
|
9
|
9
6M6-85540-00-00
C.d.i. Unit Assy
|
6M6-85540-00-00 |
— | ||
| replacements | |||||
|
9
|
9
6M6-85540-01-00 C.d.i. Unit Assembly |
6M6-85540-01-00 |
from US $608.69 |
||
|
9
|
9
6M6-85540-02-00 C.d.i. Unit Assy |
6M6-85540-02-00 |
US $641.90 |
||
|
10
|
10
90464-06M29-00 Clamp |
90464-06M29-00 |
from US $4.64 |
||
|
11
|
11
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
12
|
12
6M6-81952-00-00 Holder, Relay |
6M6-81952-00-00 |
from US $5.73 |
||
| replacement | |||||
|
12
|
12
6M6-81952-01-00
Holder, Relay
|
6M6-81952-01-00 |
— | ||
|
13
|
13
6M6-81960-A0-00 Rectifier & Regulator Assy |
6M6-81960-A0-00 |
from US $95.28 |
||
|
14
|
14
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
15
|
15
6M6-85570-00-00 Ignition Coil Assy |
6M6-85570-00-00 |
from US $131.66 |
||
| replacement | |||||
|
15
|
15
6R8-85570-00-00
Ignition Coil Assembly
|
6R8-85570-00-00 |
— | ||
|
16
|
16
92580-06030-00 Screw |
92580-06030-00 |
US $1.35 |
||
| replacement | |||||
|
16
|
16
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
90480-06M43-00 Grommet |
90480-06M43-00 |
from US $3.83 |
||
|
19
|
19
92502-06015-00 Screw, Pan Head |
92502-06015-00 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
6M6-82370-10-00
Plug Cap Assy
|
6M6-82370-10-00 |
— | ||
|
22
|
22
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
22
|
22
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
22
|
22
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
23
|
23
94702-00195-00 Br8Hs Ngk Screw Top |
94702-00195-00 |
from US $7.08 |
||
| replacements | |||||
|
23
|
23
BR8-HS000-00-00 BR8HS NGK SCREW TOP PLUG 4PK (4-PACK) |
BR8-HS000-00-00 |
US $26.36 |
||
|
23
|
23
94701-00195-00 Plug,spark(Ngk Br8Hs) |
94701-00195-00 |
US $7.76 |
||
|
23
|
23
NGK-BR8HS-00-00 Br8Hs Ngk Screw Top |
NGK-BR8HS-00-00 |
US $23.40 |
||
|
24
|
24
6M6-82553-00-00 Extension, Wire Lead |
6M6-82553-00-00 |
US $99.31 |
||
| replacement | |||||
|
24
|
24
6M6-82553-01-00 Extension, Wire Lead |
6M6-82553-01-00 |
US $99.31 |
||
|
25
|
25
6M6-82117-00-00 Wire, Lead |
6M6-82117-00-00 |
US $84.29 |
||
| replacement | |||||
|
25
|
25
62T-82117-01-00 Wire, Lead |
62T-82117-01-00 |
US $84.29 |
||
|
26
|
26
6M6-82117-10-00
Wire, Lead
|
6M6-82117-10-00 |
— | ||
| replacement | |||||
|
26
|
26
6M6-82117-11-00
Wire, Lead
|
6M6-82117-11-00 |
— | ||
|
27
|
27
6M6-82560-00-00 Thermoswitch Assembly |
6M6-82560-00-00 |
US $170.05 |
||
|
28
|
28
6M6-82117-20-00 Wire, Lead |
6M6-82117-20-00 |
from US $32.90 |
||
| replacement | |||||
|
28
|
28
6M6-82117-21-00 Wire, Lead |
6M6-82117-21-00 |
from US $32.90 |
||
|
29
|
29
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
29
|
29
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
30
|
30
90119-08907-00 Bolt, With Washer |
90119-08907-00 |
from US $7.08 |
||
|
31
|
31
EOU-65772-30-00
Hook A
|
EOU-65772-30-00 |
— | ||
|
32
|
32
90159-06901-00 Screw, With Washer |
90159-06901-00 |
from US $2.55 |
||
|
33
|
33
EOU-68219-00-00
Plate,battery
|
EOU-68219-00-00 |
— | ||
|
34
|
34
EOU-82110-78-00
Battery Assy
|
EOU-82110-78-00 |
— | ||
|
35
|
35
EOU-68221-00-00
Pad, Battery
|
EOU-68221-00-00 |
— | ||
|
36
|
36
EOU-68221-30-00
Pad, Battery
|
EOU-68221-30-00 |
— | ||
|
37
|
37
EOU-68218-03-00
Belt, Battery
|
EOU-68218-03-00 |
— | ||
