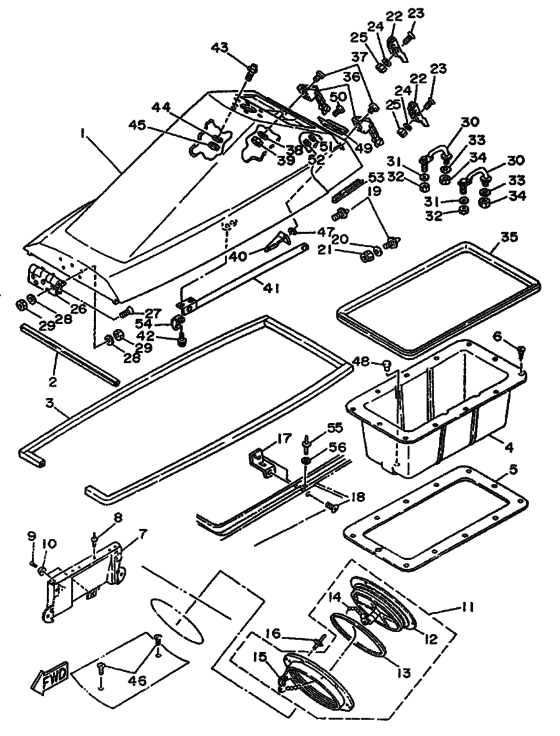

Hull & deck 1 Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
WOU-65160-00-00
Engine Hatch Comp
|
WOU-65160-00-00 |
— | ||
|
2
|
2
EOU-62688-00-00
Case, Winch Handle
|
EOU-62688-00-00 |
— | ||
|
3
|
3
EOU-62664-01-00
Packing
|
EOU-62664-01-00 |
— | ||
|
4
|
4
EOU-64742-00-00
Locker, Under 2
|
EOU-64742-00-00 |
— | ||
|
5
|
5
90656-31160-00
Packing 34
|
90656-31160-00 |
— | ||
| replacements | |||||
|
5
|
5
906-56312-00-00
Packing 34
|
906-56312-00-00 |
— | ||
|
5
|
5
90656-31140-00
Packing,34
|
90656-31140-00 |
— | ||
|
5
|
5
90656-U1131-00
PACKING 8
|
90656-U1131-00 |
— | ||
|
5
|
5
90656-U1131-00
PACKING 8
|
90656-U1131-00 |
— | ||
|
6
|
6
97780-50220-00 Screw, Tapping |
97780-50220-00 |
from US $2.69 |
||
|
7
|
7
FK7-68156-00-00
Bracket
|
FK7-68156-00-00 |
— | ||
|
8
|
8
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
9
|
9
92680-06016-00 Screw, Oval Head |
92680-06016-00 |
US $4.25 |
||
| replacement | |||||
|
9
|
9
98780-06016-00 Screw, Flat Head (92603-06016) |
98780-06016-00 |
from US $4.25 |
||
|
10
|
10
A84-62635-00-00 Washer, Finish |
A84-62635-00-00 |
from US $1.91 |
||
| replacement | |||||
|
10
|
10
902-07069-01-00 Washer, Finish |
902-07069-01-00 |
from US $2.05 |
||
|
11
|
11
EOU-62720-00-00
Inspection Cover Assy
|
EOU-62720-00-00 |
— | ||
|
12
|
12
EOU-62721-00-00
Cover, Inspection
|
EOU-62721-00-00 |
— | ||
|
13
|
13
93211-03902-00 O-Ring |
93211-03902-00 |
from US $11.76 |
||
|
14
|
14
EOU-67835-30-00
Chain Ball
|
EOU-67835-30-00 |
— | ||
|
15
|
15
EOU-67839-00-00
Cupling
|
EOU-67839-00-00 |
— | ||
|
16
|
16
90267-40937-00 Rivet, Blind |
90267-40937-00 |
from US $3.54 |
||
|
17
|
17
EOU-62884-02-00
Bracket, Hatch Support
|
EOU-62884-02-00 |
— | ||
|
18
|
18
92780-06016-00 Screw, Flat Head |
92780-06016-00 |
US $4.25 |
||
| replacement | |||||
|
18
|
18
98780-06016-00 Screw, Flat Head (92603-06016) |
98780-06016-00 |
from US $4.25 |
||
|
19
|
19
EOU-63729-02-00
Stopper, Seat
|
EOU-63729-02-00 |
— | ||
|
20
|
20
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
21
|
21
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
21
|
21
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
22
|
22
EOU-62841-01-00
Bracket, Hatch Lock
|
EOU-62841-01-00 |
— | ||
|
23
|
23
98780-05020-00 Screw, Flat Head |
98780-05020-00 |
from US $1.82 |
||
|
24
|
24
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
25
|
25
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
26
|
26
90600-70069-00 Hinge |
90600-70069-00 |
from US $88.42 |
||
|
27
|
27
98780-05020-00 Screw, Flat Head |
98780-05020-00 |
from US $1.82 |
||
|
28
|
28
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
29
|
29
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
30
|
30
EOU-61638-01-00
Cleat
|
EOU-61638-01-00 |
— | ||
|
31
|
31
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
32
|
32
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
33
|
33
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
34
|
34
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
35
|
35
EOU-62663-01-00
Packing 1
|
EOU-62663-01-00 |
— | ||
|
36
|
36
EOU-62843-01-00
Hook, Hatch Lock
|
EOU-62843-01-00 |
— | ||
|
37
|
37
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
38
|
38
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
39
|
39
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
40
|
40
EOU-62892-01-00
Fix, Plate
|
EOU-62892-01-00 |
— | ||
|
41
|
41
EOU-62891-00-00
Support, Hatch
|
EOU-62891-00-00 |
— | ||
|
42
|
42
90159-06901-00 Screw, With Washer |
90159-06901-00 |
from US $2.55 |
||
|
43
|
43
EOU-61314-30-00
Pin, Stopper
|
EOU-61314-30-00 |
— | ||
|
44
|
44
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
45
|
45
95780-10300-00 Nut, Flange |
95780-10300-00 |
from US $5.71 |
||
|
46
|
46
98780-04016-00 Screw, Flat Head (Fe4) |
98780-04016-00 |
from US $2.13 |
||
| replacement | |||||
|
46
|
46
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.70 |
||
|
47
|
47
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
48
|
48
90338-12081-00 Plug |
90338-12081-00 |
from US $2.57 |
||
| replacement | |||||
|
48
|
48
90605-50201-00 Plug(Eu0) |
90605-50201-00 |
from US $3.54 |
||
|
49
|
49
EOU-63783-00-00
Guide, Roller
|
EOU-63783-00-00 |
— | ||
|
50
|
50
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
50
|
50
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
51
|
51
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
52
|
52
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
53
|
53
EOU-65162-00-00
Trim
|
EOU-65162-00-00 |
— | ||
|
54
|
54
90465-08M08-00 Clamp |
90465-08M08-00 |
from US $11.05 |
||
|
55
|
55
90267-48938-00 Rivet (Eu0) |
90267-48938-00 |
from US $3.72 |
||
|
56
|
56
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
